SYS-121C-TN10R
$4,379.00 Configured Summary
SYS-121C-TN10R
Supermicro 1U 10Bays Dual Processor Rackmount Server

  • Dual sockets E (LGA-4677) 5th and 4th Gen Intel®  Xeon® Scalable processors
  • 16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
  • 2 PCIe 5.0 x16 FHHL;
  • 2 PCIe 5.0 x4 NVMe M.2
  • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
  • 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  • 860W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  • 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (front)
  • Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall Application, CDN, Edge Nodes

Storage configuration notice:
External:

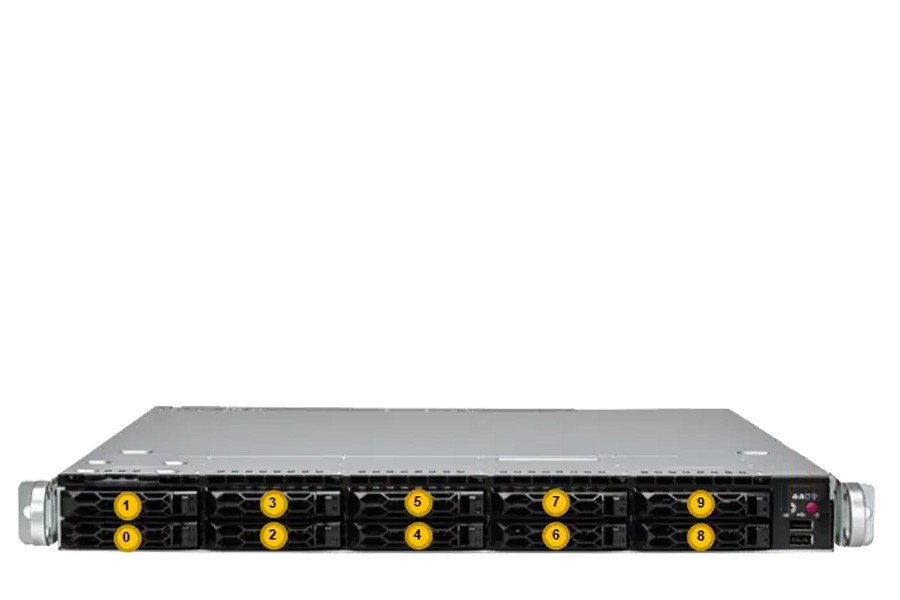

10x 2.5" Hot-swap HDD Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC and 1 Drive).  NIC requirement can either be AIOM or PCIe card.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-121C-TN10R
Processor
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count:
Up to 32C/64T; Up to 82.5MB Cache per CPU

Note:
Supports up to 270W TDP CPUs (Air Cooled)
Air Cooled CPUs with TDP over 250W only supported under specific conditions.
Memory
Memory:
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1 V
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
23.5" (597mm)
Front Panel
Buttons:
Power On/Off
Unit Identifier (UID)
LEDs:
Drive activity
Network activity
Power status
Universal Information
Bios
BIOS Type:
AMI 32MB SPI FLASH ROM
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe:
NVMe; RAID 0/1/5/10 support (*VROC is required)
Chipset:
Intel® C741
Network Connectivity:
with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Note:
High TDP 200-400G NICs have support conditions due to thermal requirements.
HDD Drive Bays
Hot-swap:
10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (Storage drives require additional cables from the optional parts list.)

M.2:
2x PCIe 5.0 x4
M-Key, 2280
Expansion Slots
2 PCIe 5.0 x16 FHHL slot(s)
Power Supply
800W/860W 1U redundant power supply
Dimension (W x H x L):
54.5 x 40.25 x 322 mm

AC Input:
800W: 100-127Vac / 9A-7.5A / 50-60Hz
860W: 200-240Vac / 6A-4.5A / 50-60Hz

+12V:
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vac-240Vac)

5V SB:
Max: 4A / Min: 0A

Output Type:
Backplanes (gold finger)

Certification:
Platinum Level Certified

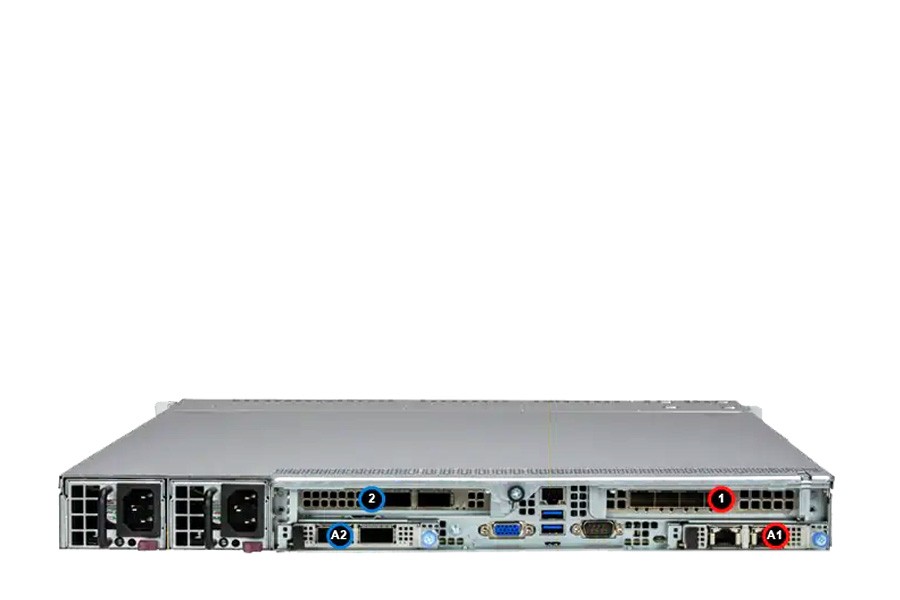

Input Output
LAN:
1 Dedicated IPMI LAN port

USB:
2 USB 2.0 port(s) (2 front)
2 USB 3.0 port(s) (2 rear)

Video:
1 VGA port(s)

Serial Port:
1 COM Port(s) (1 rear)
Cooling
Fans:
6x 4cm heavy duty fans with optimal fan speed control

Air Shroud:
2 Air Shroud(s)
Operating Environment
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
SCC
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations:
ACPI/APM Power Management
SYS-121C-TN10RSYS-121C-TN10RSYS-121C-TN10RSYS-121C-TN10RSYS-121C-TN10R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
+ $182.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
+ $1,560.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
+ $1,014.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $2,782.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $4,576.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $6,656.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $6,708.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $7,800.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $10,816.00
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
- $370.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
+ $144.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
+ $534.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
+ $1,808.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
+ $1,638.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
+ $1,314.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
+ $2,652.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
+ $2,366.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
+ $5,538.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
+ $6,916.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
+ $6,422.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
+ $5,746.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
+ $8,230.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
+ $7,866.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $136.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,120.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $248.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $396.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,380.00
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $348.00
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $140.00
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $452.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $61.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $108.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $208.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $119.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $139.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $155.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $242.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $468.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
+ $90.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $283.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $642.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $1,258.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $123.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $345.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $758.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $1,398.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $80.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $241.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $621.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,166.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,431.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $110.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $293.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $728.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,350.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,796.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $27.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $114.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $340.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $717.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $1,526.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $35.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $36.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $187.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $379.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $876.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $90.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $183.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $390.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $49.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $197.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $542.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $87.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $64.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $20.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $61.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $248.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $214.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $398.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $777.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,379.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,847.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,855.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
- $145.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
- $118.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $122.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $48.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $30.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $448.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,038.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $100.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $136.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $187.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $221.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $260.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $234.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $271.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $317.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $395.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,423.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,735.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,904.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4312
1
2159.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
