SYS-621C-TN12R
$4,689.00 Configured Summary
SYS-621C-TN12R
Supermicro 2U 12Bays Dual Processor Rackmount Server

  • Dual sockets E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
  • 16 DIMMs up to 4TB 3DS ECC DDR5-4800: RDIMM
  • 4 PCIe 5.0 x8 FHHL (optional: combine into 2 PCIe 5.0 x16); 2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2
  • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

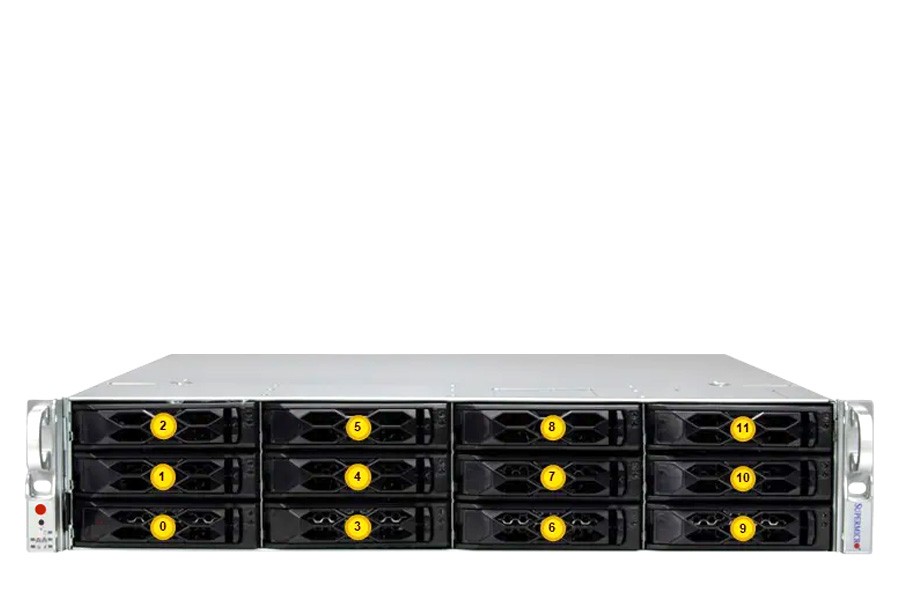

  • 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 3 heavy duty fans with optimal fan speed control, 1 air shroud
  • 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall Application, CDN, Edge Nodes

Storage configuration notice:
External:
12x 3.5" Hot-swap HDD Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC and 1 Drive).  NIC requirement can either be AIOM or PCIe card.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-621C-TN12R
Processor
CPU:
Dual Socket E (LGA-4677)
4th Gen Intel® Xeon® Scalable processors

Note:
Certain high TDP CPUs have support conditions. Contact Technical Support or Representative for details
Supports up to 350W TDP CPUs (Air Cooled)
Memory
Memory:
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 4800MHz ECC DDR5 RDIMM

Memory Voltage:
1.1 V

Error Detection:
ECC
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
25.5" (648mm)
Front Panel
Buttons:
Power On/Off
Unit Identifier (UID)
LEDs:
Drive activity
Network activity
Power status
Universal Information
Bios
BIOS Type:
AMI 32MB SPI FLASH ROM
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support

NVMe:
NVMe; RAID 0/1/5/10 support (VROC is required)

Chipset:
Intel® C741

Network Connectivity:
with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Note:
High TDP 200-400G NICs have support conditions due to thermal requirements.
HDD Drive Bays
Hot-swap:
12x 3.5" hot-swap NVMe/SATA/SAS drive bays (12x 3.5" NVMe hybrid) (Storage drives require additional cables from the optional parts list.)
M.2:
2x PCIe 5.0 x4
M-Key, 2280
Expansion Slots
4 PCIe 5.0 x8 FHHL slot(s)
2 PCIe 5.0 x16 FHHL slot(s)
(Slots 1 and 4 can convert to x16 by merging 2 and 3. Slots 1, 2, 4 and 5 can support FHFL cards with 1U heatsinks. Some slots share PCIe lanes with NVME. FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length, DW = Double Width, SW = Single Width)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Dimension (W x H x L):
76 x 40 x 336 mm

AC Input:
1000W: 100-127Vac / 15A-12A / 50-60Hz
1200W: 200-240Vac / 8.5A-7A / 50-60Hz

+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)

5V SB:
Max: 4A / Min: 0A

Output Type:
19 Pairs Gold Finger Connector

Certification:
Titanium Level

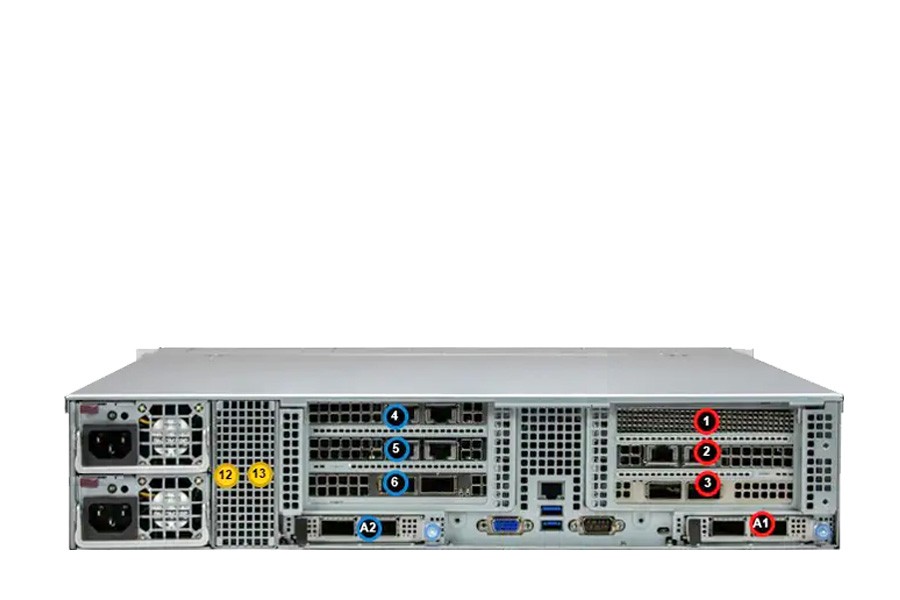

Input Output
LAN:
1 Dedicated IPMI LAN port

USB:
2 USB 3.0 port(s) (2 rear)

Video:
1 VGA port(s)

Serial Port:
1 COM Port(s) (1 rear)
Cooling
Fans:
3x 8cm heavy duty fans with optimal fan speed control

Air Shroud:
1 Air Shroud(s)
Operating Environment
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
SCC
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations:
ACPI/APM Power Management
SYS-621C-TN12RSYS-621C-TN12RSYS-621C-TN12RSYS-621C-TN12RSYS-621C-TN12R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
+ $182.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
+ $1,560.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $2,094.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
+ $1,014.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $2,782.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $4,576.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $6,656.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
+ $4,186.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $6,708.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $7,800.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
+ $9,386.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $10,816.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
+ $8,996.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
+ $15,626.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)
+ $16,146.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)
+ $26,286.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
+ $12,896.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
+ $13,858.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)
+ $17,316.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)
+ $34,152.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)
+ $16,926.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)
+ $22,776.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
+ $23,296.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)
+ $26,286.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
+ $42,458.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $136.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,120.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $248.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $396.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,380.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $170.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $456.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $586.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,171.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,341.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $209.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $365.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $716.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,366.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,731.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $162.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $337.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $732.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,418.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,625.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
- $145.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
- $118.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $122.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $48.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $30.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $448.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,038.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $100.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $136.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $187.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $221.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $260.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $234.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $271.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $317.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $395.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,423.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,735.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,904.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
-Microsoft Windows 11 Professional 32/64-bit
+ $166.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4313
1
2468.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
