SYS-111E-WR
$2,195.00 Configured Summary
SYS-111E-WR
Supermicro 1U 10bays Single Processor Rackmount Server

  • Single Socket E (LGA-4677) 4th/5th Gen Intel®  Xeon® Scalable processors. Up to 300W TDP
  • Intel® C741 Chipset
  • 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
  • Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
  • 10x front hot-swap 2.5" SATA3 drive bays (Optional all 10 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
  • Redundant Now Titanium 860W Power Supplies
  • Virtualization, Cloud Computing, Data Center Optimized, Database/Storage, Entry GPU server

Storage configuration notice:
External:
10x 2.5" Hot-swap HDD Bays
1x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 1 DIMMs, 1 Drive)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-111E-WR
Processor
CPU:
Single Socket E (LGA 4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Cores:
Up to 52C/104T; Up to 97.5MB Cache

Note:
Supports up to 300W TDP CPUs (Air Cooled)
Memory
Memory:
Slot Count: 8 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1 V
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
23.5" (597mm)
Front Panel
Buttons:
Power On/Off
UID button

LEDs:
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support

NVMe:
NVMe

Chipset:
Intel® C741

Network Connectivity:
2x 1GbE BaseT with Intel® i210

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Drive Bays:
10x 2.5" NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid)

M.2:
1x PCIe 3.0 x 2
M-key, 2280, 22110
Expansion Slots
PCI-Express (PCIe):
2 PCIe 5.0 x16 FHFL slot(s)
1 PCIe 5.0 x8 (in x16) LP slot(s)
Note:
Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length)
Power Supply
800W/860W 1U redundant power supply
Dimension (W x H x L):
54.5 x 40.25 x 322 mm

AC Input:
800W: 100-127Vac / 9A-7.5A / 50-60Hz
860W: 200-240Vac / 6A-4.5A / 50-60Hz

+12V:
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vac-240Vac)

5V SB:
Max: 4A / Min: 0A

Output Type:
Backplanes (gold finger)

Certification:
Platinum Level Certified
Input Output
SATA:
10 SATA (6Gbps) port(s)

LAN:
1 RJ45 Dedicated IPMI LAN port
2 RJ45 1GbE LAN ports

USB:
4 USB 3.2 Gen 1 port(s) (2 front; 2 rear)
3 USB 2.0 port(s) (2 rear; 1 Type A)

Video:
1 VGA port(s)

Serial Port:
2 COM Port(s) (1 header; 1 rear)
Cooling
1 AOC cooling Fan(s) (optional)
5 middle cooling PWM 40x40x56mm Fan(s)
Operating Environment
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity:
   8% to 80% (non-condensing)
Non-operating Relative Humidity:
   8% to 90% (non-condensing)
Details
Management
Software:
Supemicro Out of Band (OOB) License (Included per Node)
SuperCloud Composer
IPMI2.0
Redfish API
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Power Configurations:
ACPI/APM Power Management

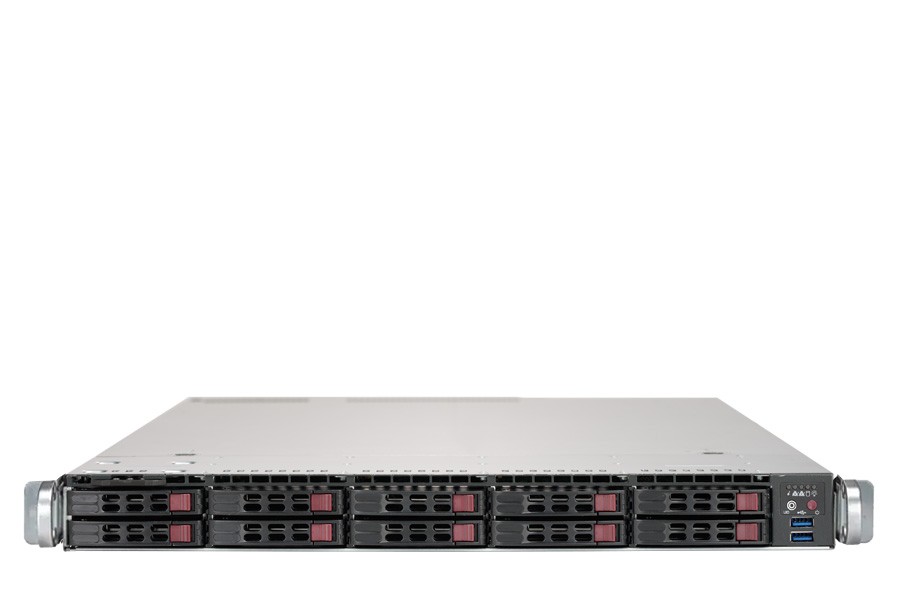

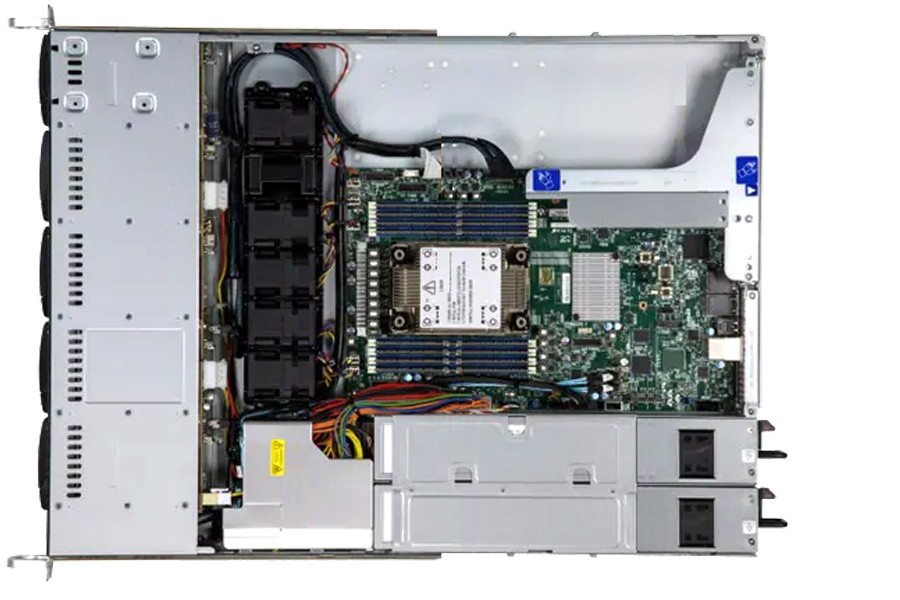

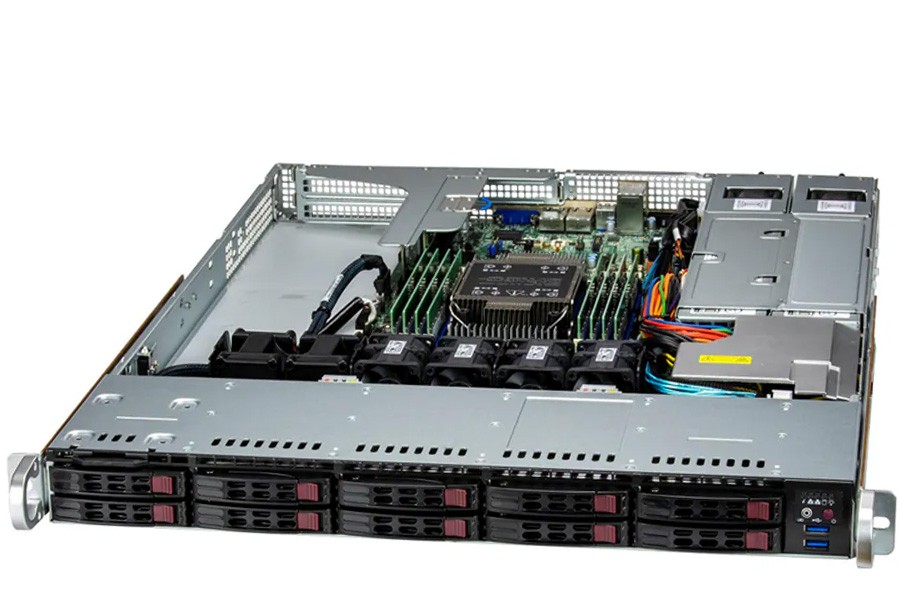

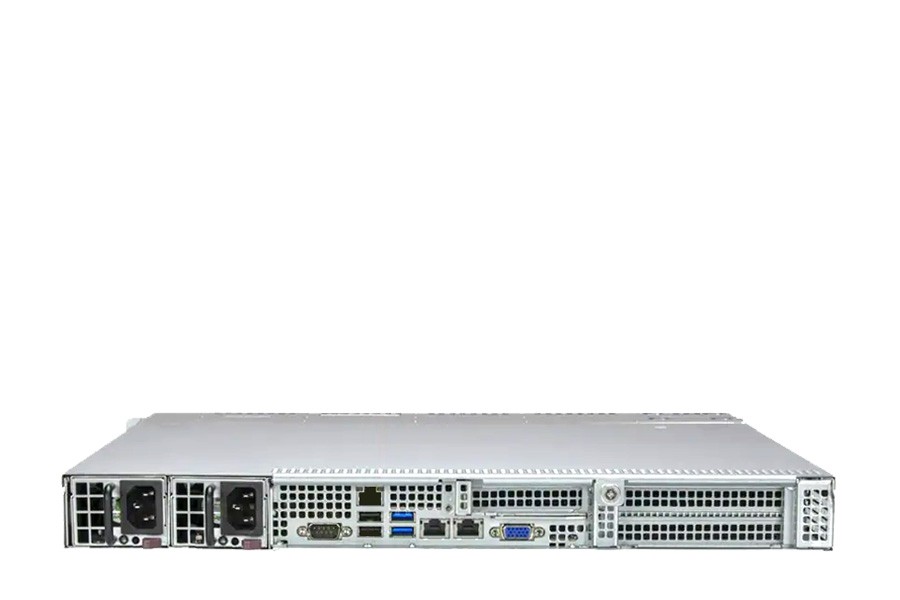

SYS-111E-WRSYS-111E-WRSYS-111E-WRSYS-111E-WR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
- $689.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
- $780.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Added
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $267.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
- $273.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $611.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $1,508.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $2,548.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
+ $1,313.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $2,574.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $3,120.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
+ $3,913.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $4,628.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
+ $3,718.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
+ $7,033.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)
+ $7,293.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
+ $5,668.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
+ $6,149.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)
+ $7,878.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)
+ $16,296.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)
+ $7,683.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)
+ $10,608.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
+ $10,868.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
+ $20,449.00
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
- $965.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
- $780.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
- $780.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
- $708.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
- $513.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
+ $124.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
+ $39.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
- $123.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
+ $546.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
+ $403.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)
+ $1,157.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
+ $1,989.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
+ $2,678.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
+ $2,431.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
+ $2,093.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)
+ $3,029.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
+ $3,335.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
+ $3,153.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)
+ $2,431.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)
+ $3,274.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)
+ $5,922.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)
+ $7,033.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)
+ $7,943.00
MEMORY
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $325.00
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $689.00
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $1,430.00
NVMe M.2
*No NVMe M.2 Drives
Added
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $137.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $177.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $279.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $196.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $306.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $346.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $586.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $906.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $206.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $306.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $831.00
(Optional) Enterprise-Class HDD/SSD
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $346.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $586.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $906.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,532.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $3,856.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $199.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $251.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $296.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $485.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $905.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,732.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $218.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $311.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $518.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $290.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $455.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $784.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $89.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $103.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $177.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $304.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $551.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $342.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $526.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $905.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,507.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,975.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,983.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4314
1
2195.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
