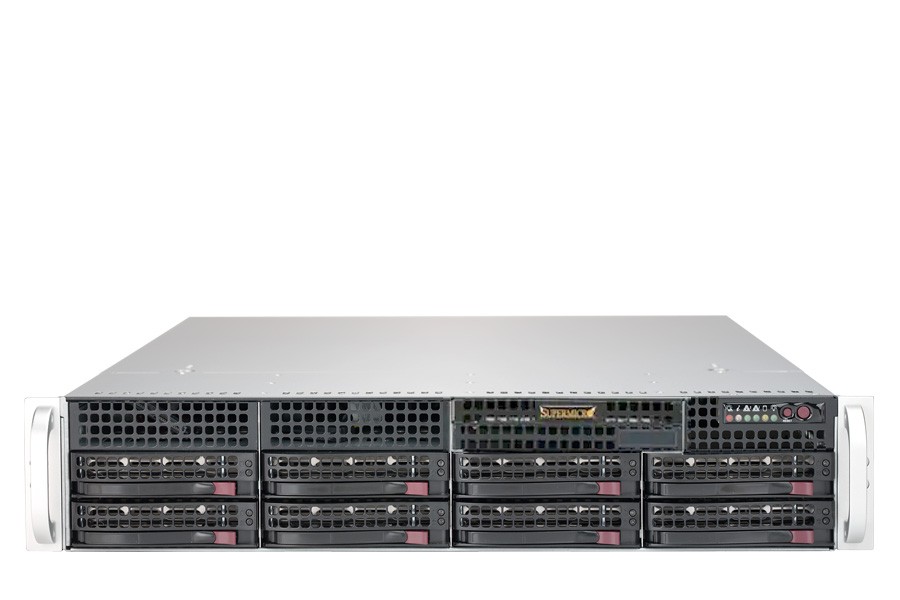

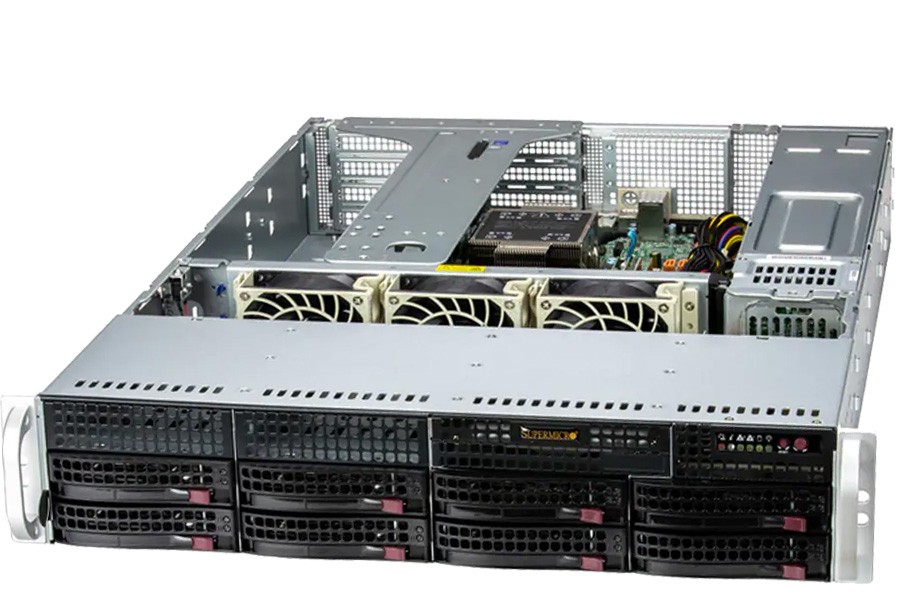

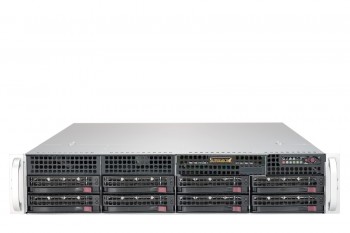

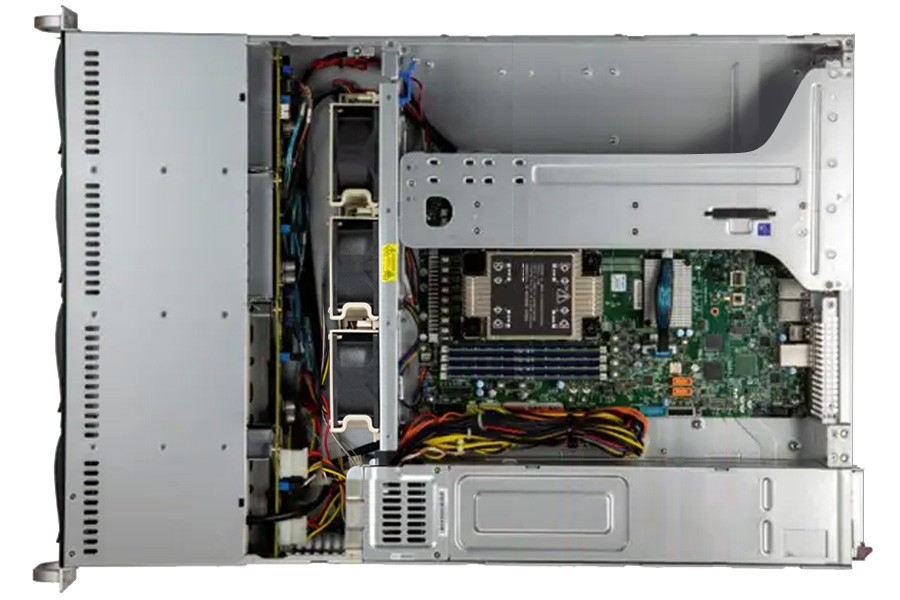

Supermicro 2U 8Bays Single Processor Rackmount Server

Supermicro 2U 8Bays Single Processor Rackmount Server

Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 300W TDP
Intel® C741 Chipset
8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
8x front hot-swap 3.5" SATA3 drive bays (Optional 4 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
Redundant Now Titanium 1000W Power Supplies
Data Center Optimized, Network Appliance, Database/Storage, Entry GPU server

Storage configuration notice:
External:
8x 3.5" Hot-swap HDD Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPUs, 1 DIMMs, 1 Drive).

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-521E-WR
Processor	CPU: Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: Up to 52C/104T; Up to 300MB Cache Note: Supports up to 300W TDP CPUs (Air Cooled)
Memory	Memory: Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Memory Voltage: 1.1 V
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.5" (89mm) Width: 17.2" (437mm) Depth: 25.5" (647mm)
Front Panel	Buttons: Power On/Off System Reset LEDs: Device Activity LAN 1 Activity LAN 2 Activity Power Failure LED Power status System information
Bios	BIOS Type: AMI 32MB SPI Flash EEPROM
Onboard Devices	SATA: SATA3 (6Gbps); RAID 0/1/5/10 support NVMe: NVMe Chipset: Intel® C741 Network Connectivity: 2x 1GbE BaseT with Intel® i210 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	Drive Bays: 8x 3.5" NVMe/SATA/SAS drive bays (4x 3.5" NVMe hybrid) M.2: 1x PCIe 3.0 x 2 M-key, 2280, 22110 Peripheral Bays: 2x 2.5" drive bays
Expansion Slots	PCI-Express (PCIe): 2 PCIe 5.0 x16 FHFL slot(s) 2 PCIe 5.0 x8 LP slot(s) Note: Default loadout. (For more configs, please contact sales) FH slots can be reconfigured with RSC-W2-688G5. Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length)
Power Supply	1U 920W redundant power supply Dimension (W x H x L): 76 x 40 x 336 mm AC Input: 920W: 100-127Vac / 8.5A-11A / 50-60Hz 920W: 200-240Vac / 4.5A-5.5A / 50-60Hz Output Type: Backplanes (gold finger) Certification: Platinum Level Certified

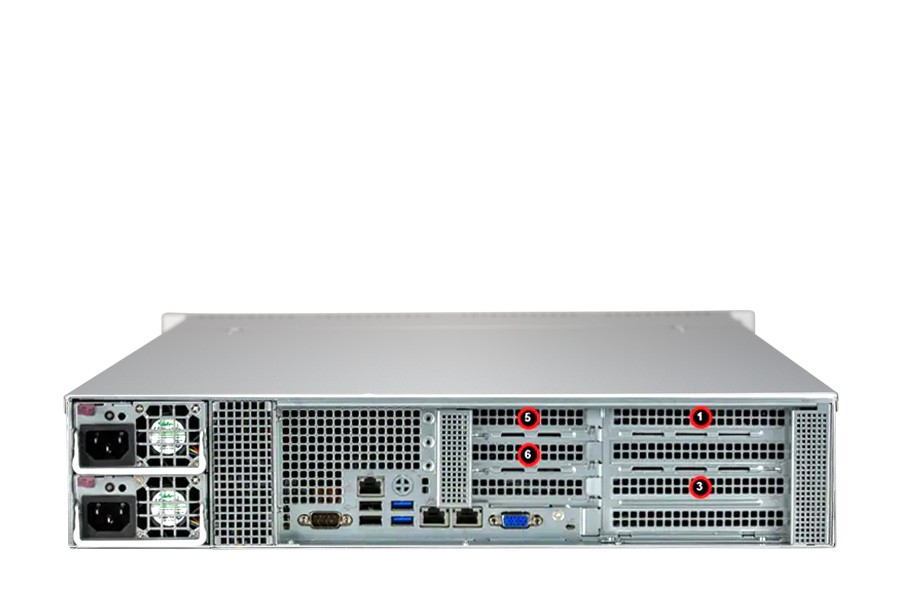

Input Output	SATA: 10 SATA (6Gbps) port(s) LAN: 1 RJ45 Dedicated IPMI LAN port 2 RJ45 1GbE LAN ports USB: 4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear) 3 USB 2.0 port(s) (2 rear; 1 Type A) Video: 1 VGA port(s) Serial Port: 2 COM Port(s) (1 header; 1 rear)
Cooling	3 heavy duty PWM 80x80x38mm Fan(s)
Operating Environment	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Details	Management Software: Supemicro Out of Band (OOB) License (Included per Node) SuperCloud Composer IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Power Configurations: ACPI/APM Power Management

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)

Added

Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)

Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)

MEMORY

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

NVMe M.2

*No NVMe M.2 Drives

Added

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

(Optional) Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

NETWORK CARD

*No Network Card

Added

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
