SYS-741GE-TNRT
$6,344.00 Configured Summary
SYS-741GE-TNRT

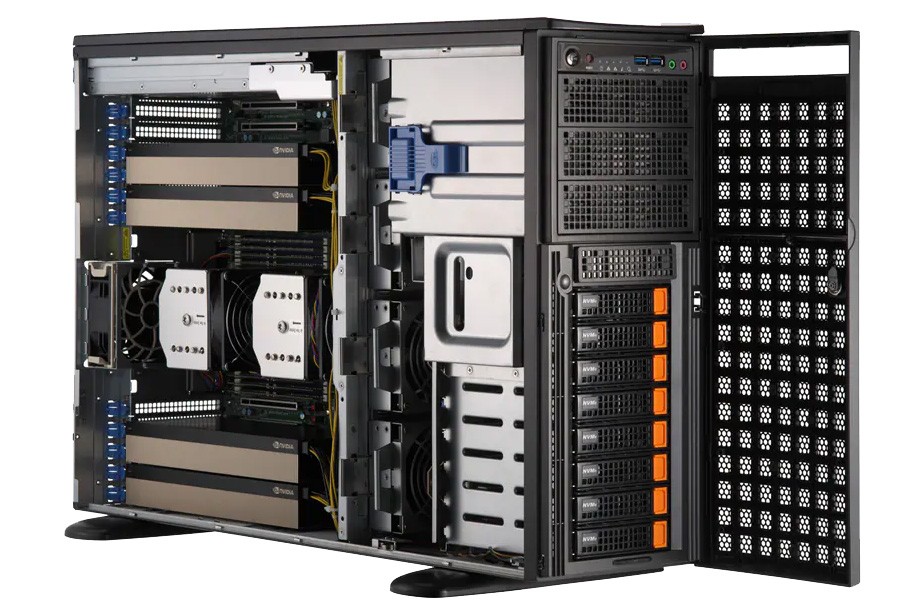

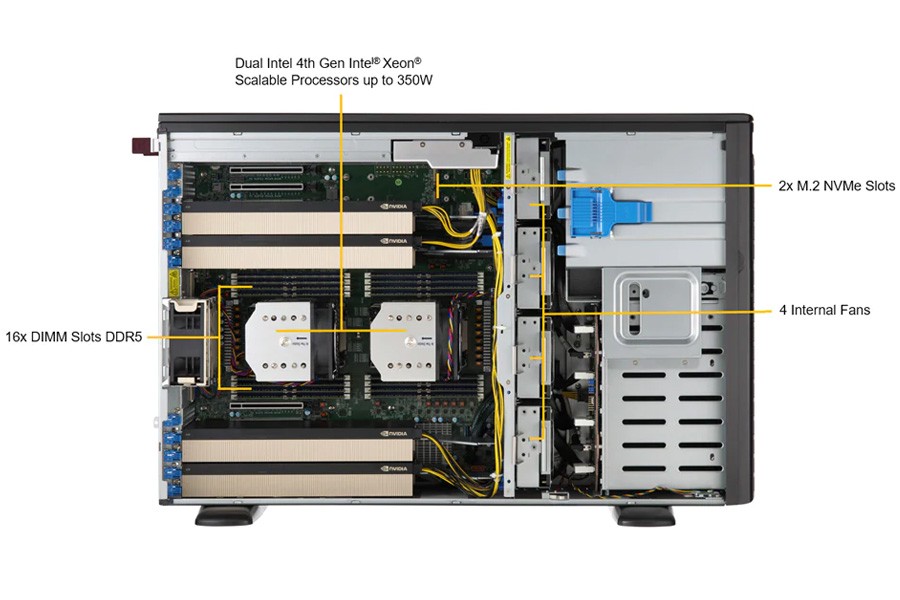

Supermicro 8Bays Dual Processor Tower Rackmount Server

  • 5th/4th Gen Intel®  Xeon® Scalable processor support
  • 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  • Up to 4x double width, full length GPUs
  • 4x PCIe 5.0 x16 (double-width) slots,   3x PCIe 5.0 x16 (single-width) slots
  • Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays, 2x M.2 NVMe  for boot drive only, Up to 8x NVMe drives (8 NVMe drives supported by default)
  • 4 Removable heavy duty fans w/ Optimal Fan Speed Control
  • 2x 2000W (1+1) Redundant Power Supplies, Titanium Level
  • High Performance Computing, VDI, AI/Deep Learning Training, Media/Video Streaming, Cloud Gaming, Animation and Modeling, Design & Visualization, 3D Rendering, Diagnostic Imaging, AI Training

Storage configuration notice:
External:
8x 3.5" Hot-swap HDD Bays
2x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-741GE-TNRT

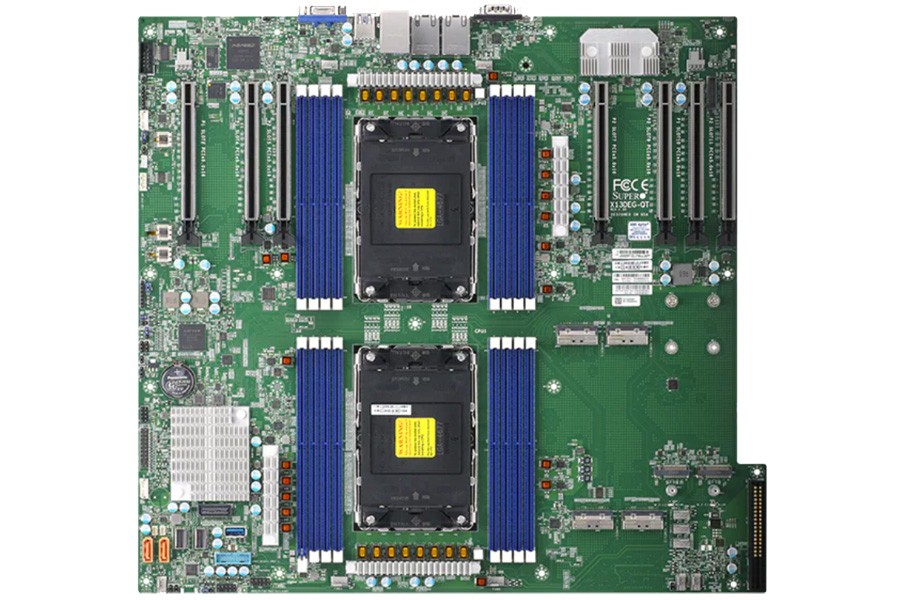

Processor
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count:
Up to 64C/128T; Up to 320MB Cache per CPU

Note:
Supports up to 350W TDP CPUs (Air Cooled)

Max GPU Count:
Up to 4 double-width or 4 single-width GPU(s)

Supported GPU:
NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A30, A100
AMD PCIe: Instinct MI210

CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect:
NVIDIA® NVLink® Bridge (optional)
Memory
Memory:
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1V
Chassis
Tower Rackmount
Dimensions
Height:
7" (178mm)
Width:
17.2" (437mm)
Depth:
29" (737mm)

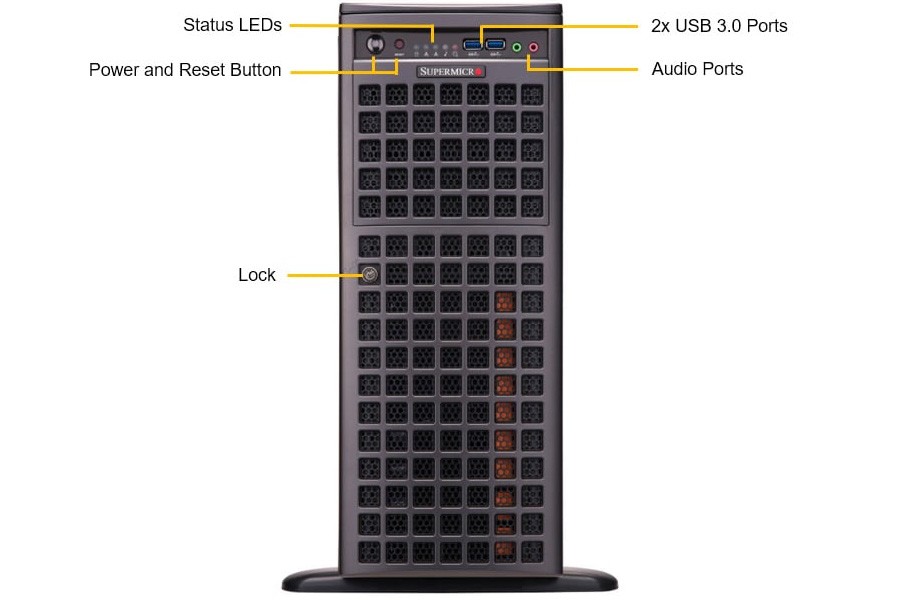

Front Panel
Buttons:
Power On/Off button
System Reset button

LEDs:
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support

Chipset:
Intel® C741

Network Connectivity:
2x 10GbE BaseT with Intel® X550-AT2

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
8x 3.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid)

M.2:
2 M.2 NVMe
Expansion Slots
7 PCIe 5.0 x16 FHFL slot(s)
Power Supply
1U 2000W Redundant Titanium AC Power supply, 73.5x40x265mm, CRPS
Dimension (W x H x L):
73.5 x 40 x 265 mm

AC Input:
100-127Vac / 50-60Hz
200-240Vac / 50-60Hz

DC Input:
2000W: 230-240Vdc

+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac)

12V SB:
Max: 2.1A / Min: 0A

Output Type:
25 Pairs Gold Finger Connector

Certification:
Titanium Level

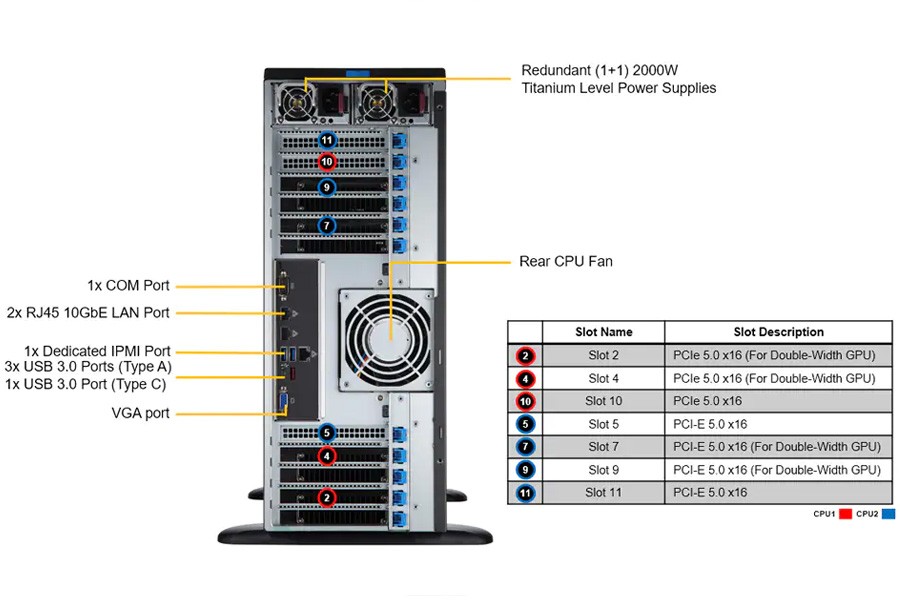

Input Output
USB:
2 USB 3.2 Gen1x2; port(s) (2 Front_USB)
1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB)
3 USB 3.2 Gen1 port(s) (3 Rear_USB)
Video:
1 VGA port(s)
Cooling
4 heavy duty fans with optimal fan speed control
Operating Environment
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
OOB Management Package (SFT-OOB-LIC )
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations:
ACPI Power Management
Power-on mode for AC power recovery
SYS-741GE-TNRTSYS-741GE-TNRTSYS-741GE-TNRTSYS-741GE-TNRTSYS-741GE-TNRT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
- $689.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
- $780.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Added
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $267.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
- $273.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $611.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $1,508.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $2,548.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
+ $1,313.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $2,574.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $3,120.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
+ $3,913.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $4,628.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
+ $3,718.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
+ $7,033.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)
+ $7,293.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
+ $5,668.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
+ $6,149.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)
+ $7,878.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)
+ $16,296.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)
+ $7,683.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)
+ $10,608.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
+ $10,868.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
+ $20,449.00
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
- $965.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
- $780.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
- $780.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
- $708.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
- $513.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
+ $124.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
+ $39.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
- $123.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
+ $546.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
+ $403.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)
+ $1,157.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
+ $1,989.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
+ $2,678.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
+ $2,431.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
+ $2,093.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)
+ $3,029.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
+ $3,335.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
+ $3,153.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)
+ $2,431.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6558Q (3.20 Ghz 350W)
+ $6,487.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558 (2.10 Ghz 330W)
+ $4,303.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558P (2.70 Ghz 350W)
+ $6,903.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)
+ $3,274.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)
+ $5,922.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)
+ $6,597.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8570 (2.10 Ghz 350W)
+ $10,446.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)
+ $7,033.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8580 (2.00 Ghz 350W)
+ $11,843.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)
+ $7,943.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592+ (1.90 Ghz 350W)
+ $12,968.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592V (2.00 Ghz 330W)
+ $12,214.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $68.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $560.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $124.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $198.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $690.00
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $136.00
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $6.00
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $310.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
+ $1,690.00
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
+ $3,010.00
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
+ $5,304.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $9,193.00
NVIDIA L40 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA L40S 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4324
1
4389.0000
