Supermicro 8Bays Dual Processor Tower/5U GPU Server
- This SKU won’t be available until April 2023.
- 4th Gen Intel® Xeon® Scalable processor support
- Intel® C741 Chipset
- 16 DIMM slots Up to 2TB: 16x 128 GB DRAM Memory Type: 4800MHz ECC DDR5
- 4 double width PCIe 5.0X16/CXL Supports up to 4 double width GPUs and 3 single width PCIe 5.0X16/CXL
- 8 front access 2.5" SATA/NVMe U.2 drive bays for easy access
- Super Quiet operation with liquid Cooling system
- 2x 2200W (1+1) Redundant Power Supplies, Titanium Level
- 1 VGA, 7 USB 3.2 Gen1 (3 Rear in Type A, 1 Rear in Type C, 2 Front in Type A, 1 internal in Type A), 7.1 HD Audio 2 NVMe M.2 slots
- High Performance Computing, AI/Deep Learning Training
Storage configuration notice:
External:
8x 2.5" Hot-swap HDD Bays
2x M.2
External:
8x 2.5" Hot-swap HDD Bays
2x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | SYS-751GE-TNRT |
| Processor | CPU:

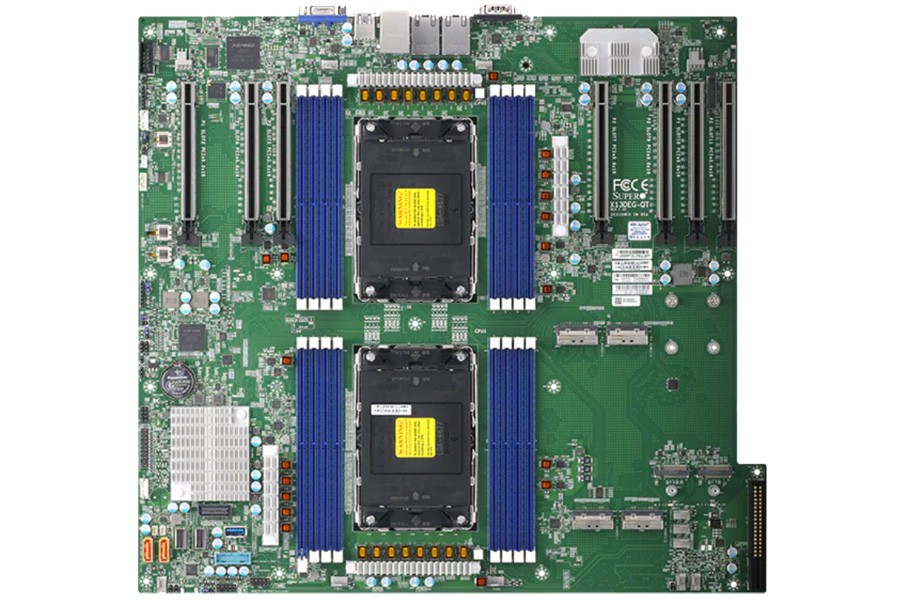

Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors Cores: Up to 60C; Up to 112.5MB Cache Note: Certain CPU SKUs are conditionally supported, please contact Technical Support for additional information about specialized system optimization Supports up to 350W TDP CPUs (Liquid Cooled) |
| Memory | Memory:
Memory Capacity: 16 DIMM slots Up to 2TB: 16x 128 GB DRAM Memory Type: 4800MHz ECC DDR5 DRAM Note: Memory DIMM capacities larger than 16GB are supported under certain conditions, please contact Technical Support for additional information about specialized system optimization Memory Voltage: 1.1 V Error Detection: ECC |

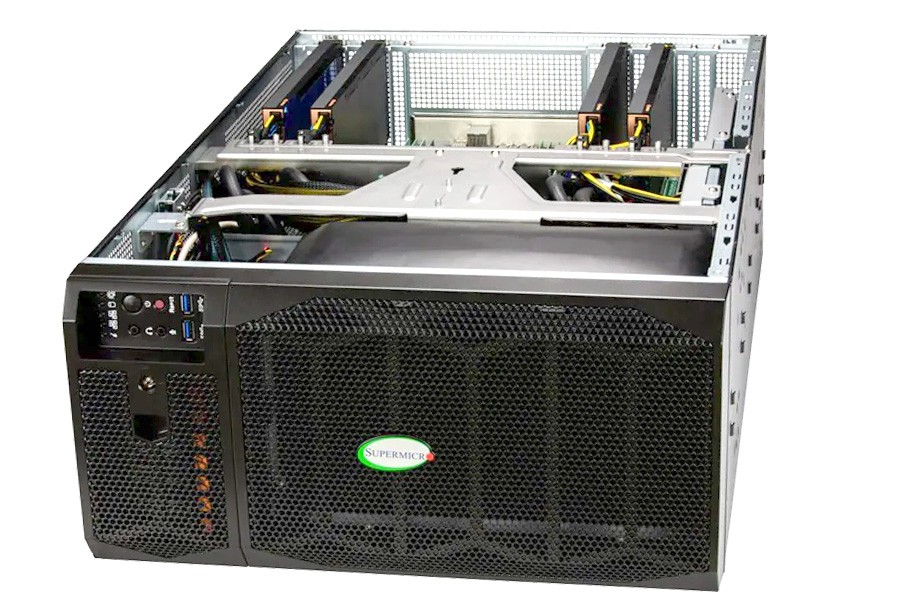

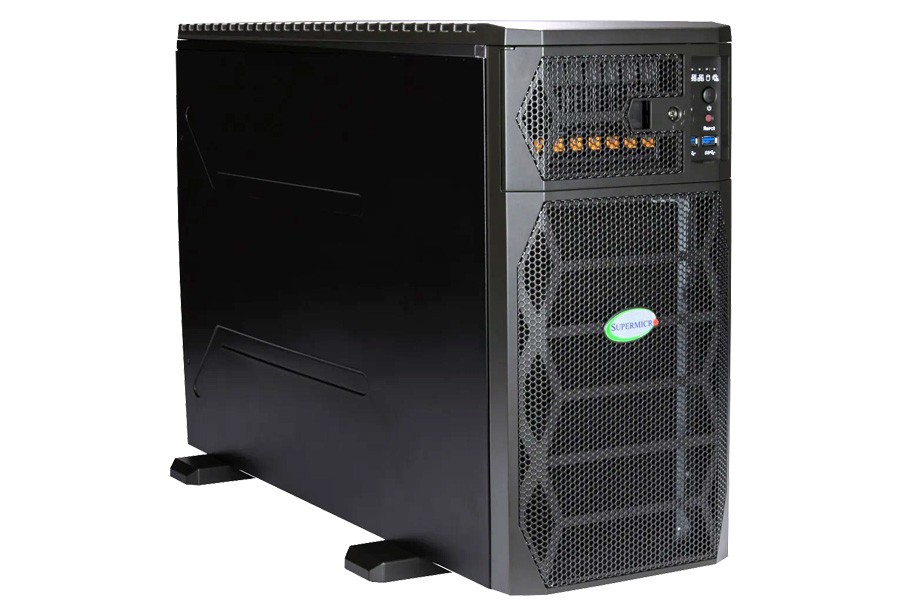

| Chassis | Tower/5U Rackmount Chassis
|
| Dimensions | Height:
8.6" (218.4mm) Width: 17.9" (454.7mm) Depth: 27.6" (701mm) |
| Front Panel | Buttons:
Power On/Off button Reset button LEDs: HDD activity LED Information LED Network 1 activity LED Network 2 activity LED Power status LED |
| Bios | BIOS Type:
AMI 32MB SPI Flash EEPROM |
| Onboard Devices | SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support Chipset: Intel® C741 Network Connectivity: 2x 10GbE BaseT with Intel® X550-AT2 1x 1GbE BaseT with ASPEED AST2600 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| HDD Drive Bays | Hot-swap:
8x 2.5" hot-swap NVMe/SATA drive bays (8x 2.5" NVMe hybrid) M.2: 2 M.2 NVMe |
| Expansion Slots | 7 PCIe 5.0 x16 FHFL slot(s)
|
| Power Supply | 2U 2200W Redundant Power Supply for Workstation
Dimension (W x H x L): 106.5 x 82.1 x 203.5 mm AC Input: 1200W: 100-127Vac / 9.5A-12A / 50-60Hz 1800W: 200-220Vac / 9.5A-10A / 50-60Hz 1980W: 220-230Vac / 9.5A-10A / 50-60Hz 2200W: 220-240Vac / 9.6A-11.8A / 50-60Hz (UL/cUL only) 2090W: 230-240Vac / 9.8A-10A / 50-60Hz 2090W: 230-240Vdc / 9.8A-10A / 50-60Hz (China only) Output Type: Backplanes (connector) Certification: Titanium Level |

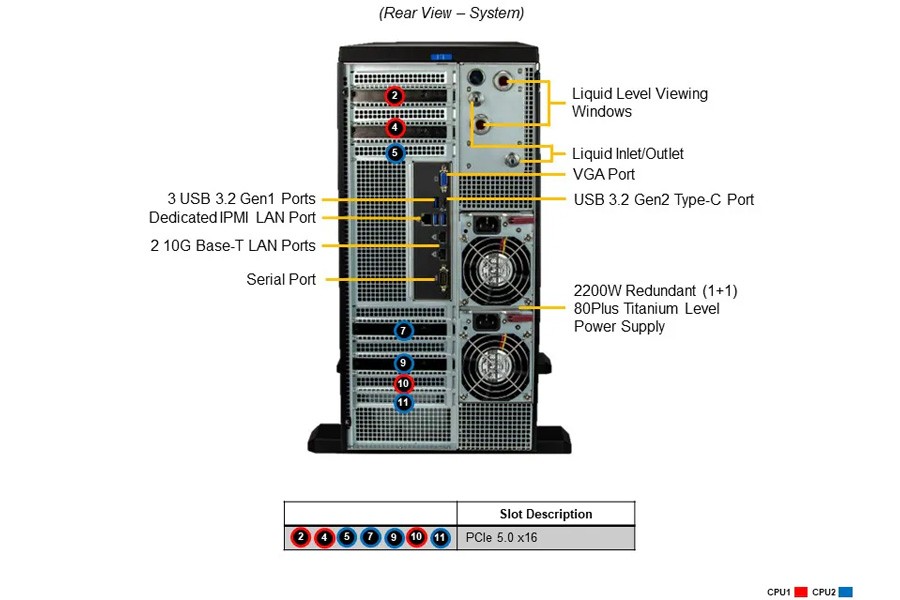

| Input Output | SATA:
2 SlimSAS port(s) 2 SuperDOM port(s) NVMe: 4 NVMe U.2 LAN: 1 RJ45 1GbE (Dedicated IPMI port) 2 RJ45 10GbE USB: 2 USB 3.2 Gen1x2; port(s) (2 Front_USB) 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB) 3 USB 3.2 Gen1 port(s) (3 Rear_USB) Video: 1 VGA port(s) |
| Cooling | Fans:

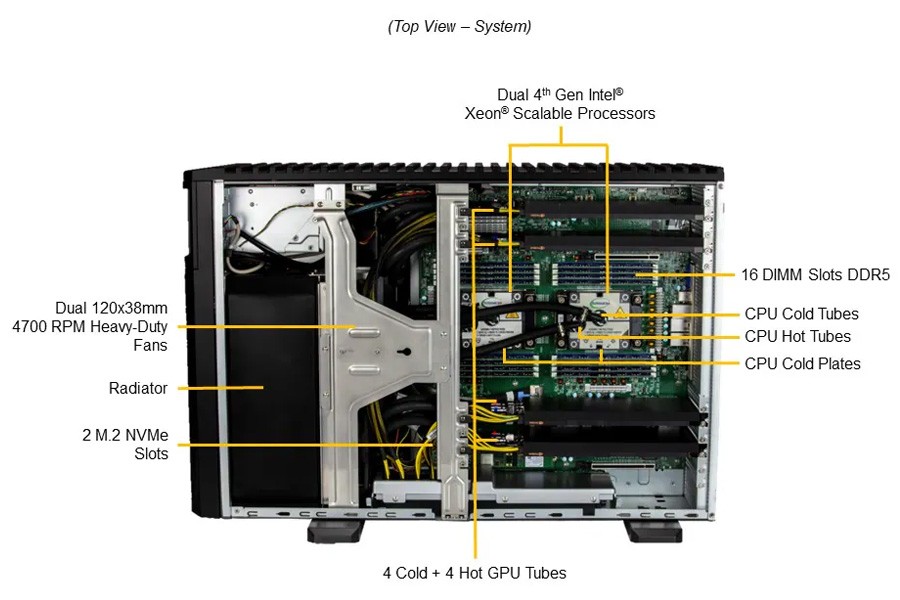

1 fan 8CM Fan(s) 2 fan 12CM Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Operating Environment | Operating Temperature:
10°C ~ 25°C (50°F ~ 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Details | Management
Software: OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 Power Configurations: ACPI Power Management Power-on mode for AC power recovery |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
- $689.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
- $780.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Added
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $267.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
- $273.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $611.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $1,508.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $2,548.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
+ $1,313.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $2,574.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $3,120.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
+ $3,913.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $4,628.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
+ $3,718.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
+ $7,033.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)
+ $7,293.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
+ $5,668.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
+ $6,149.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)
+ $7,878.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)
+ $16,296.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)
+ $7,683.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)
+ $10,608.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
+ $10,868.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
+ $20,449.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $68.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $560.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $124.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $198.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $690.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $85.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $122.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $304.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $707.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,214.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $83.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $168.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $402.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $870.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $174.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $460.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $590.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,175.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,345.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $213.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $369.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $720.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,370.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,735.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $166.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $341.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $736.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,422.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,629.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $28.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $68.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $100.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $263.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $603.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,222.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $93.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $186.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $393.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $65.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $230.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $653.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $65.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $40.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $4.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $93.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $317.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $217.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $401.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $780.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,382.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,850.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,858.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX A4000 GDDR6 Video Card 16GB
+ $1,203.00
NVIDIA RTX A5000 GDDR6 Video Card 24GB
+ $2,502.00
NVIDIA RTX A6000 GDDR6 Video Card 48GB
+ $4,940.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $8,710.00
NVIDIA A30 24GB HBM2 GPU Card
+ $4,950.00
NVIDIA A40 48GB GDDR6 GPU Card
+ $5,824.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4326
1
24900.0000
