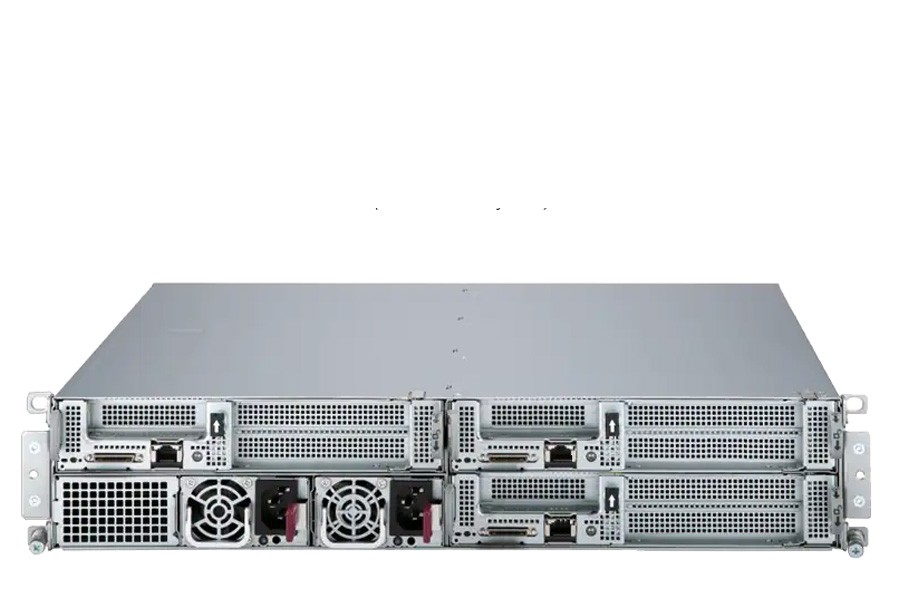

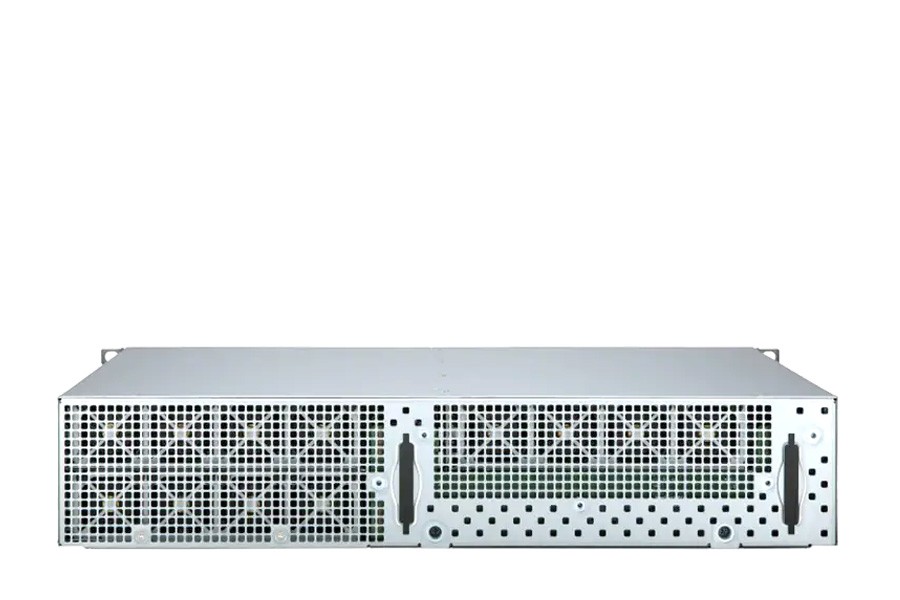

Supermicro 2U 3Nodes Single Processor Rackmount Server

Supermicro 2U 3Nodes Single Processor Rackmount Server

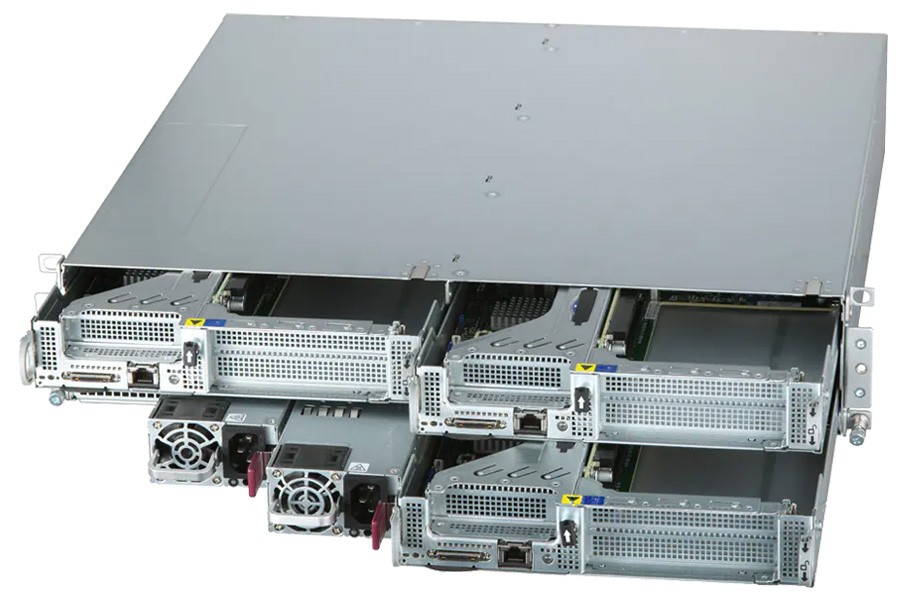

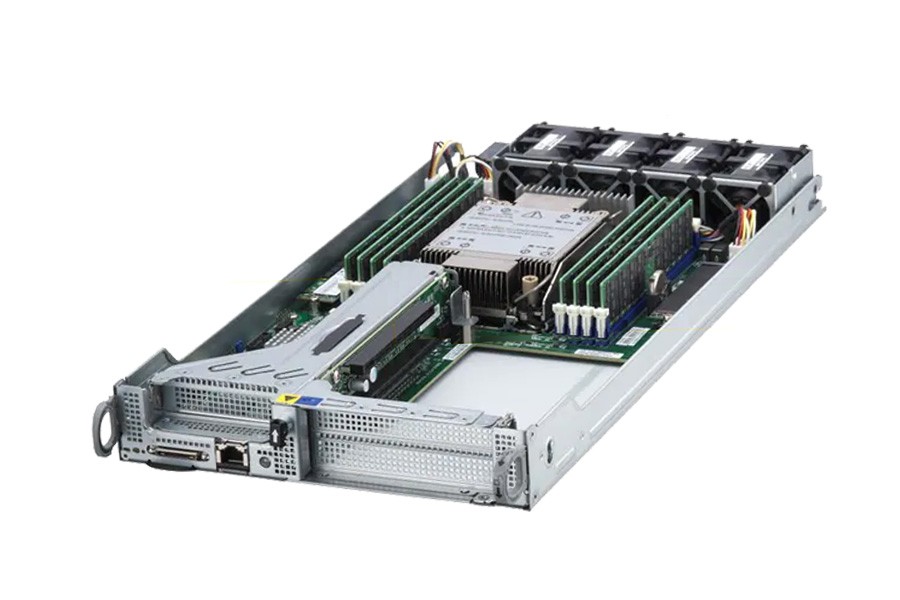

Three hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single Socket E (LGA-4677) 5th Gen Intel® Xeon®/4th Gen Intel® Xeon Scalable processors (per node)
8 DIMMs; Up to 2TB 3DS ECC DDR5-5600MT/s; RDIMM/LRDIMM (per node)
2 PCIe Gen5 x16 FHHL slot and 1 PCIe Gen5 x16 HHHL slot (per node)
2 NVMe M.2 2280/22110 (per node)
4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
Front-access 2000W AC Redundant Power Supplies (per system)
Multi-Access Edge Computing, Flex-RAN, Open-RAN vBBU, Telecom DRAN, CRAN, and Edge Core Application, Enterprise Edge Computing

Storage configuration notice:
2x M.2 (per node)

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-211SE-31A
Processor	(per Node) CPU: Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: Up to 52C/104T; Up to 97.5MB Cache Note: Supports 85W - 300W TDP CPUs (Air Cooled) Air Cooled CPUs with TDP over 205W only supported under specific conditions.
Memory	(per Node) Memory: Slot Count: 8 DIMM slots/1 Channels Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Memory Voltage: 1.1 V
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.5" (88mm) Width: 17.7" (449mm) Depth: 16.9" (430mm)
Front Panel	Buttons: Power On/Off UID button LEDs: LAN1 activity Power status System information
Onboard Devices	Chipset: Intel® C741 Network Connectivity: 1x 1GbE BaseT port(s) IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	(per Node) Drive Bays: N/A M.2: 2 M.2 NVMe M-Key, 2280/22110
Expansion Slots	(per Node) 1 PCIe 5.0 x16 LP slot(s) 2 PCIe 5.0 x16 FHHL slot(s)
Power Supply	2000W Redundant AC 100-240V Power Supply Dimension: (W x H x L) 73.5 x 40 x 265 mm AC Input: 1000W: 100-127Vac / 9A-12A / 50-60Hz 1800W: 200-220Vac / 9.8A-10A / 50-60Hz 2000W: 220-240Vac / 10A-11A / 50-60Hz +12V: Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 166A / Min: 0A (220Vac-240Vac)
Input Output	LAN: 1 RJ45 GbE LAN port (shared with IPMI) Video: 1 VGA port(s) Serial Port: 1 COM Port(s) (1 COM) Others: 1 KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable)
Cooling	Air Shroud: 3 Air Shroud(s) Fans: 12x 8cm heavy duty fans with optimal fan speed control 40x56mm Fan(s)
Operating Environment	Environmental Spec. Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Note: Operating Temperature (CPU TDP up to 300W) : Continuous 0°C to 35°C (32°F to 95°F) Operating Temperature(CPU TDP up to 205W): Continuous 0°C ~ 40°C (32°F ~ 104°F), Short term -5°C ~ 55°C (23°F ~ 131°F)
Details	Management Software: SuperDoctor® 5 IPMI 2.0 Power Configurations: ACPI Power Management Power-on mode for AC power recovery

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU-1st Node

Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)

Added

Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6426Y (2.50 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)

Memory-1st Node

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

CPU-2nd Node

*No Processor
