SYS-211E-FRN2T
Please Inquire Configured Summary
SYS-211E-FRN2T
Supermicro 2U 2Bays Single Processor Rackmount Server

  • Design with compliance to NEBS-Level 3
  • Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  • 8 DIMM slots; Up to 2TB 3DS ECC DDR5-5600; R-DIMM/R-DIMM 3DS
  • Up to 3 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 X16 HHHL & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards Up to 6 Configurable PCIe 5.0 slots (4 standard + 2 optiomal)
  • Onboard 2x 10GbE ports
  • 2x 2.5" NVMe drive bays
  • Redundant 800W AC Power Supplies
  • Ultra short depth, 2U Front I/O Edge Server
  • 5G Core and Edge, AI Inference and Machine Learning, Network Function Virtualization, Cloud Computing

Storage configuration notice:
External:
2x 2.5" Hot-swap HDD Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPUs, 1 DIMMs and 1 Drive). Standard sliding rail kit: post to post 17.13"~24.76"
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-211E-FRN2T
Processor
CPU:
Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count:
Up to 60C/120T; Up to 112.5MB Cache

Note:
Supports up to 350W TDP CPUs (Air Cooled)
Air Cooled CPUs with TDP over 205W only supported under specific conditions.
Memory
Memory:
Slot Count: 8 DIMM slots
Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1 V
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (88.9mm)
Width:
17.2" (436.88mm)
Depth:
11.8" (298.8mm)

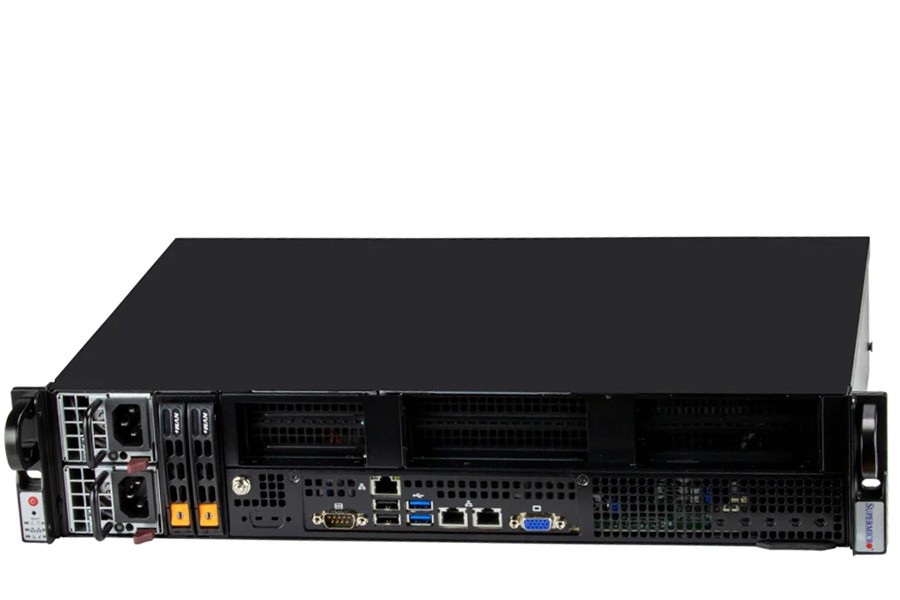

Front Panel
Buttons:
Power On/Off
UID button

LEDs:
HDD activity
LAN1 activity
LAN2 activity
Power status
System information
Bios
BIOS Type:
AMI 256MB SPI Flash
Onboard Devices
NVMe:
NVMe; RAID 0/1 support (Intel® VROC RAID Key required)

Chipset:
Intel® C741

Network Connectivity:
2x 25GbE QSFP28 with Intel® XXV710 (optional)
2x 25GbE QSFP28 with Intel® E810-CAM1 (optional)
2x 40GbE QSFP+ with Intel® XL710-BM2 (optional)
2x 10GbE SFP+ with Intel® X710-BM2 (optional)
4x 1GbE BaseT with Intel® i350 (optional)
2x 200GbE QSFP56 with Mellanox® MT28908A0-XCCF-HVM (optional)
2x 10GbE BaseT with Intel® X550
2x 100GbE QSFP28 with Intel® E810-CAM2 (optional)

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
2x 2.5" hot-swap NVMe drive bays (2x 2.5" NVMe dedicated)

M.2:
2 M.2 NVMe
M-Key, 2280/22110
Expansion Slots
1 PCIe 5.0 x16 HHHL slot(s)
1 PCIe 5.0 x8 HHHL slot(s)
2 PCIe 5.0 x16 FHHL slot(s)
Power Supply
800W Redundant AC 100-240V Power Supplies with PMBus
Dimension (W x H x L):
54.5 x 40 x 220 mm
Input Output
LAN:
1 RJ45 Dedicated BMC LAN port
2 RJ45 10GbE (Intel® X550-AT2)

USB:
2 USB 2.0 port(s) (2 front)
2 USB 3.0 port(s) (2 front)

Video:
1 VGA port(s)

Serial Port:
1 COM Port(s) (1 front)

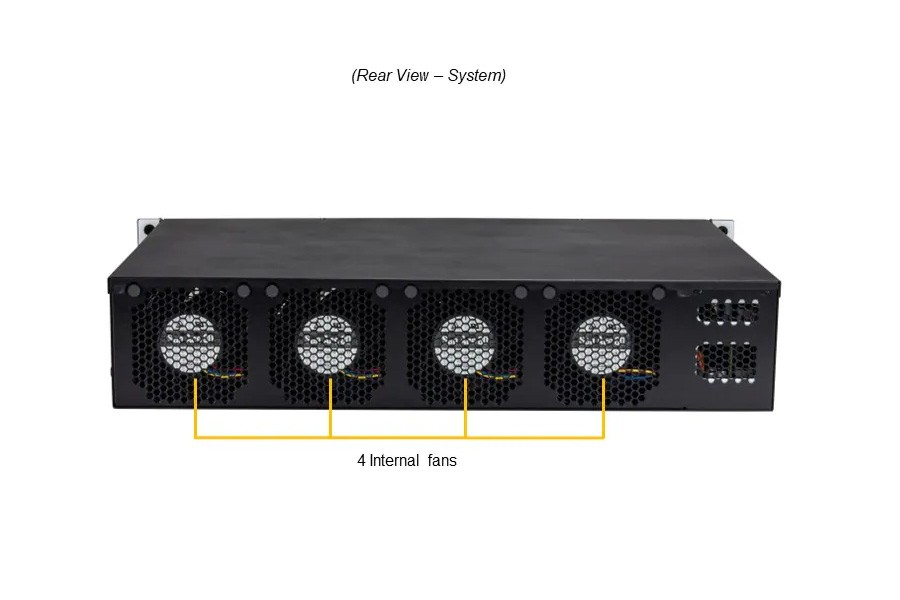

Cooling
4x 4-PIN PWM 8cm Fan(s)
Operating Environment
Operating Temperature:
   0°C ~ 35°C (32°F ~ 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
SUM
SSM
Redfish API
IPMI 2.0
Intel® Node Manager
SPM
KVM with dedicated LAN
NMI
Watch Dog
SuperDoctor® 5
IPMI 2.0
Power Configurations:
ACPI Power Management
SYS-211E-FRN2TSYS-211E-FRN2TSYS-211E-FRN2TSYS-211E-FRN2T
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Added
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
(Optional) Enterprise-Class HDD/SSD
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
