Supermicro 2U 4Nodes Single Processor Rackmount Server

Supermicro 2U 4Nodes Single Processor Rackmount Server

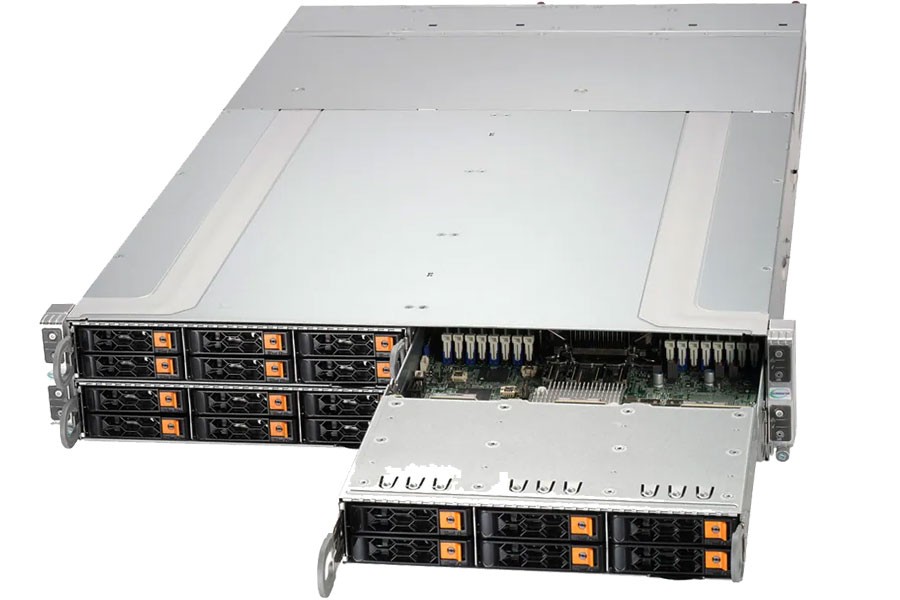

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 300W TDP
Intel® C741
16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
2 AIOM
Up to 6 Hot-swap 2.5" NVMe/SATA drives
2x cooling fans per 2U enclosure, 16K RPM Heavy Duty; Shared Cooling Design
2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
HPC, Cloud Gaming, MEC (Multi-Access Edge Computing), Multi-Purpose CDN, High-availability Cache Cluster, Telco Edge Cloud, EDA (Electric Design Automation), Mission Critical Web Applications

Storage configuration notice:
External:

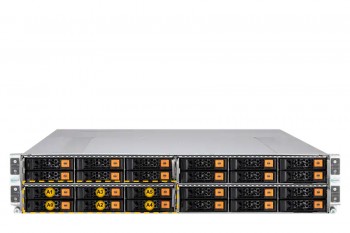

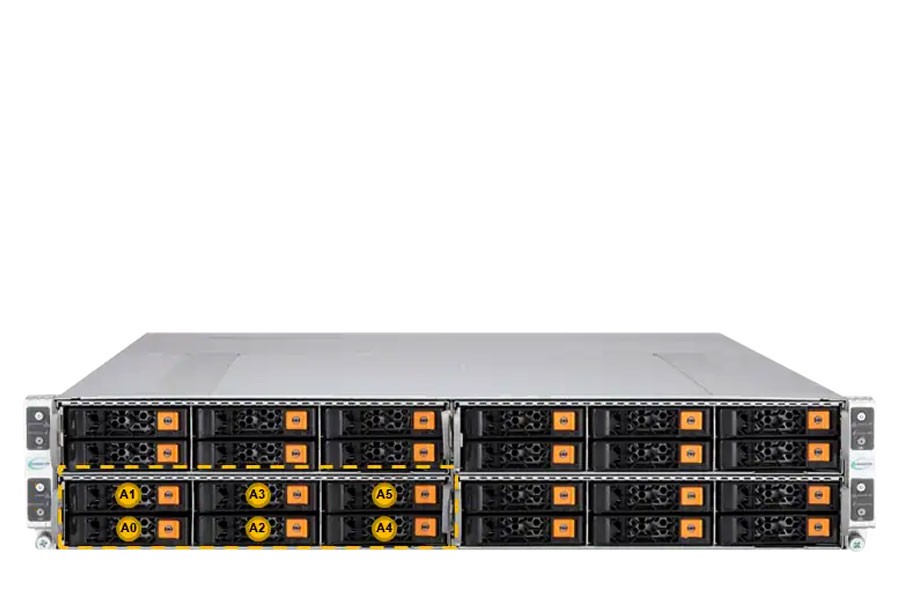

24x 2.5" Hot-swap Drive Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 SIMMs are recommended per node) Minimum requirement is 1 CPU, 1 DIMM, 1 GrandTwin I/O Module and 1 storage device per node.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-211GT-HNTR
Processor	(per Node) CPU: Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: Up to 64C/128T; Up to 300MB Cache Note: Supports up to 350W TDP CPUs (Air Cooled) Air Cooled CPUs with TDP over 350W only supported under specific conditions.
Memory	(per Node) Memory: Slot Count: 16 DIMM slots/2 Channels Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.46" (88mm) Width: 17.67" (449mm) Depth: 28" (711.2mm)
Front Panel	Buttons: Power On/Off button UID button LEDs: HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Bios	BIOS Type: AMI 32MB Flash ROM
Onboard Devices	(per Node) Chipset: Intel® C741 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	(per Node) Hot-swap: 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe dedicated) M.2: 2 M.2 NVMe OR 2 M.2 SATA3
Expansion Slots	(per Node) PCI-Express (PCIe): 2 PCIe 5.0 x16 slot(s)
Power Supply	Redundant 2200w Titanium Level(96%)High-Efficiency Power Supplies with I2C & PMBus Dimension (W x H x L): 106 x 84 x 245 mm AC Input: 100-127Vdc (1200W for the Rest of the World) 200-220Vdc (1800W for the Rest of the World) 200-220Vdc (2090W for North America - UL & cUL) 220-230Vdc (1980W for the Rest of the World) 220-240Vdc (2200W for North America - UL & cUL) 230-240Vdc (2090W for the Rest of the World) Certification: Titanium Level
Input Output	(per Node) LAN: 1 RJ45 Dedicated BMC LAN port USB: 2 USB 3.1 port(s) (2 USB) Video: 1 VGA port(s)
Cooling	2x 16.5K RPM Heavy Duty 8cm Fan(s) 2x 16K RPM Heavy Duty 8cm Fan(s)
Operating Environment	RoHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU-1st Node

Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)

Added

Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558 (2.10 Ghz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6558Q (3.20 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558P (2.70 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8570 (2.10 Ghz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8580 (2.00 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8592V (2.00 Ghz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8592+ (1.90 Ghz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)

Memory-1st Node

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

CPU-2nd Node

*No Processor
