SYS-211GT-HNC8R
Please Inquire Configured Summary
SYS-211GT-HNC8R
Supermicro 2U 4Bays Single Processor Rackmount Server

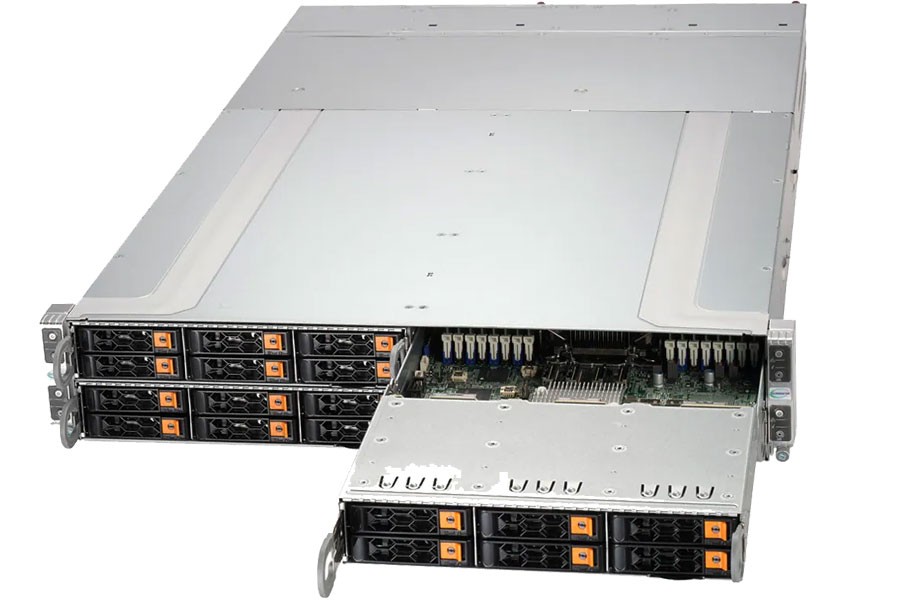

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Single-Socket, 4th Gen Intel® Xeon® Scalable processors up to 300W TDP
  • Intel® C741
  • 16 DIMM Slots up to 4TB
  • 2 AIOM
  • 6x NVMe/SAS/SATA drive bays
  • 2x cooling fans per 2U enclosure, 16K RPM Heavy Duty; Shared Cooling Design
  • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • Built-in SAS3 Support via Broadcom 3808; IT Mode
  • HPC, Cloud Gaming, MEC (Multi-Access Edge Computing), Multi-Purpose CDN, High-availability Cache Cluster, Telco Edge Cloud, EDA (Electric Design Automation), Mission Critical Web Applications

Storage configuration notice:
External:
244x 2.5" Hot-swap Drive Bays
8x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 SIMMs are recommended per node) Minimum requirement is 1 CPU, 1 DIMM, 1 GrandTwin I/O Module and 1 storage device per node.

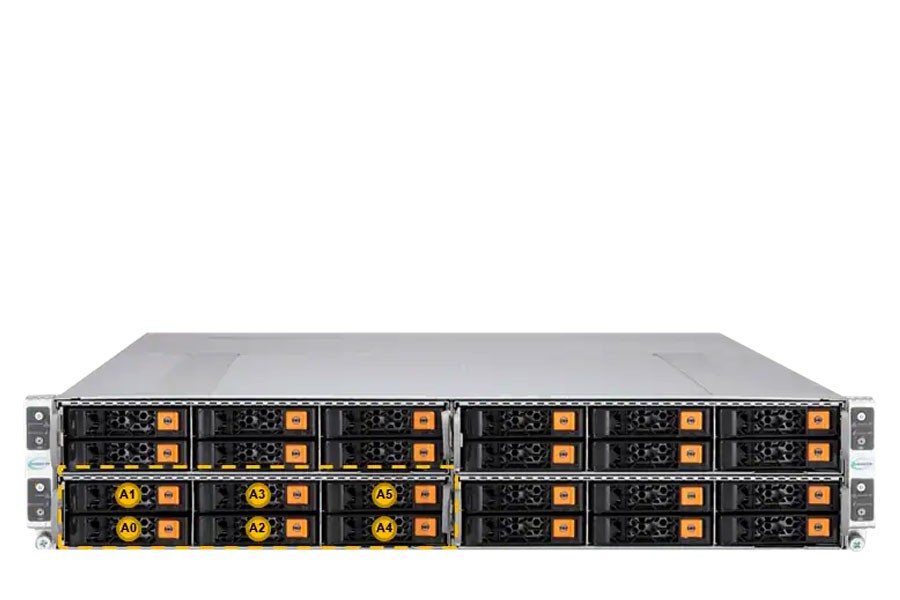

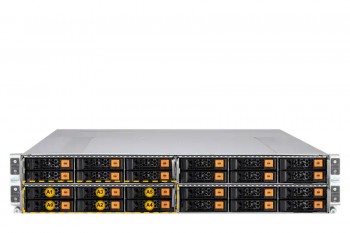

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-211GT-HNC8R

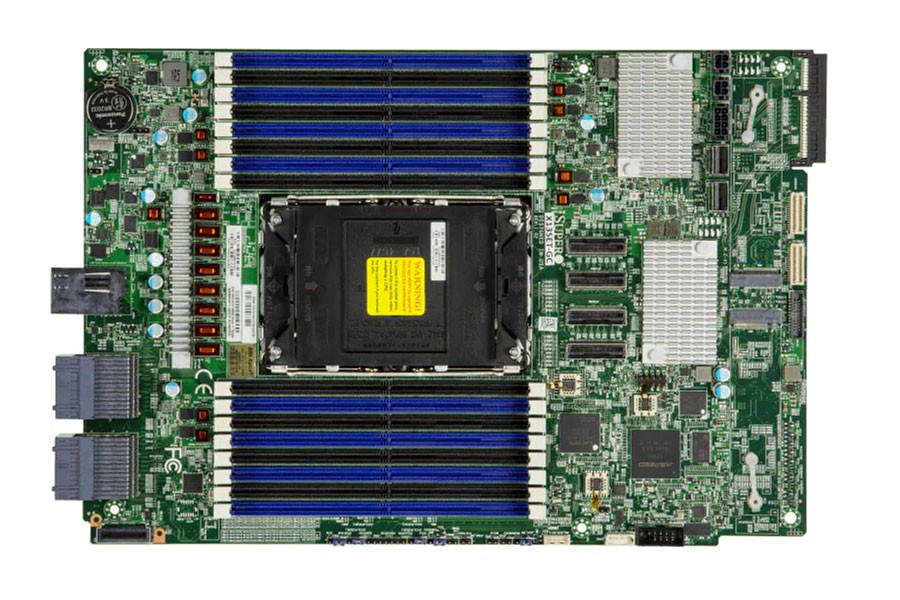

Processor
(per Node)
CPU:
Single Socket E (LGA 4677)
4th Gen Intel® Xeon® Scalable processors
Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Note:
CPUs with high TDP (Air Cooled) only supported under specific conditions.  Contact Technical Support for details
Supports up to 300W TDP CPUs (Air Cooled)
Memory
(per Node)
Memory:
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 4800MHz ECC DDR5 RDIMM
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.46" (88mm)
Width:
17.67" (449mm)
Depth:
28" (711.2mm)
Front Panel
Buttons:
Power On/Off button
UID button

LEDs:
HDD activity LED
Network activity LEDs
Power status LED
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32MB Flash ROM
Onboard Devices
SAS:
SAS3 (12Gbps) via Broadcom® 3808 (IT mode)
Chipset:
Intel® C741
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
(per Node)
Hot-swap:
6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe dedicated)
M.2:
2 M.2 NVMe OR 2 M.2 SATA3
Expansion Slots
(per Node)
PCI-Express (PCIe):
2 PCIe 5.0 x16 slot(s)

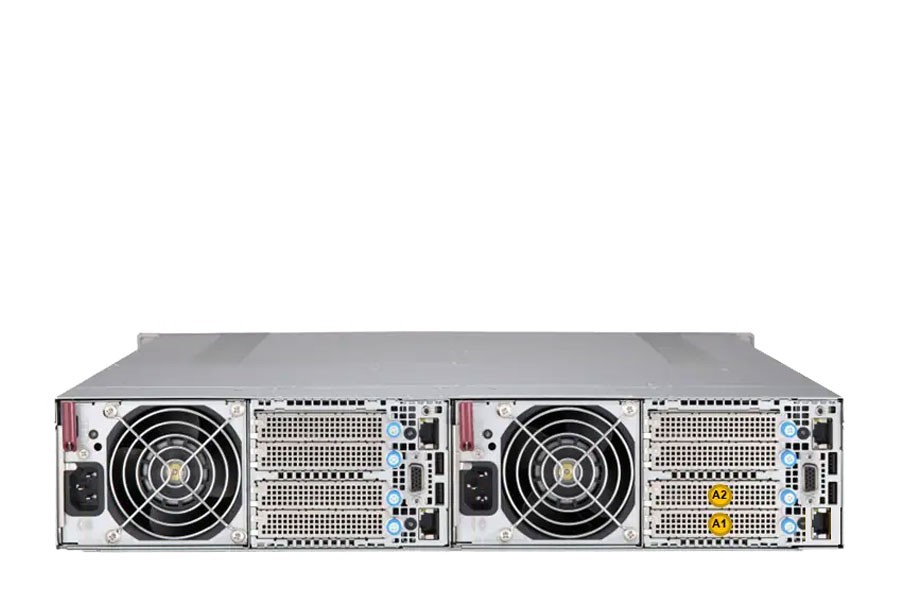

Power Supply
Redundant 2200w Titanium Level(96%)High-Efficiency Power Supplies with I2C & PMBus
Dimension (W x H x L):
106 x 84 x 245 mm
AC Input:
100-127Vdc (1200W for the Rest of the World)
200-220Vdc (1800W for the Rest of the World)
200-220Vdc (2090W for North America - UL & cUL)
220-230Vdc (1980W for the Rest of the World)
220-240Vdc (2200W for North America - UL & cUL)
230-240Vdc (2090W for the Rest of the World)
Certification:
Titanium Level
Input Output
(per Node)
LAN:
1 RJ45 Dedicated BMC LAN port
USB:
2 USB 3.1 port(s) (2 USB)
Video:
1 VGA port(s)
Cooling
2x 16.5K RPM Heavy Duty 8cm Fan(s)
2x 16K RPM Heavy Duty 8cm Fan(s)
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
   5% to 95% (Non-Condensing)
SYS-211GT-HNC8RSYS-211GT-HNC8RSYS-211GT-HNC8RSYS-211GT-HNC8R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Added
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
Memory-1st Node
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
Memory-2nd Node
*No Memory
Added
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
Memory-3rd Node
*No Memory
Added
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
Memory-4th Node
*No Memory
Added
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
(Optional) Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
4337
1
0.0000
