SYS-221BT-HNTR
Please Inquire Configured Summary
SYS-221BT-HNTR
Supermicro 2U 4Nodes Dual Processor Rackmount Server

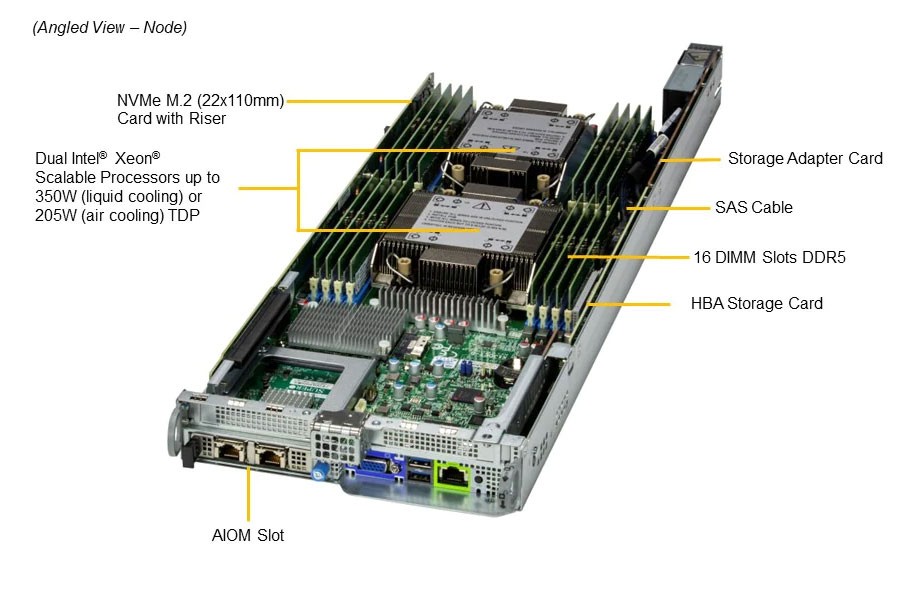

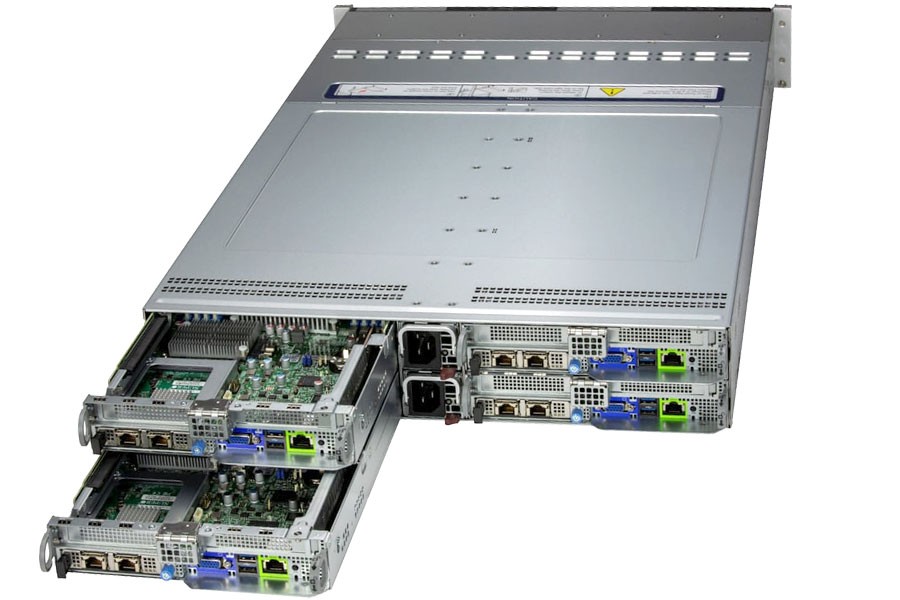

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Socket E (LGA 4677) support 4th Gen Intel® Xeon® Scalable processors
  • Intel® C741
  • Up to 16 DIMMs ECC DDR5 Slots
  • 2 PCIe 5.0 x16 (LP) slot; Tool-less support Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1
  • Network connectivity via AIOM (OCP 3.0 compliant)
  • 6 hot-swap 2.5" drive bays (2x PCIe 5.0 NVMe/SATA and 4x PCIe 4.0 NVMe/SATA)
  • 4 cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design, Counter-Rotating Liquid Cooling Support
  • 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • All-Flash NVMe Hyperconverged Infrastructure, Container-as-a-Service; Application Accelerator, High-Performance File System, Diskless HPC Clusters

Storage configuration notice:
(per node)

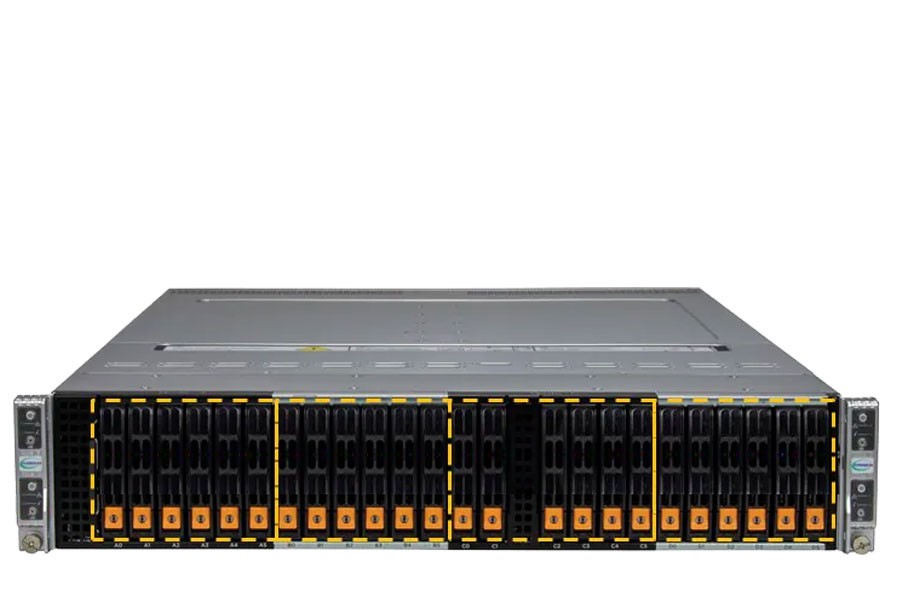

External:
6x 2.5" Hot-swap Drive Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node) Minimum 2 CPUs, 2 DIMMs, 1 NIC and 1 Drive per node.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-221BT-HNTR
Processor
(per Node)
CPU:
Dual Socket E (LGA 4677)
4th Gen Intel® Xeon® Scalable processors
Intel Xeon CPU Max Series with high bandwidth memory (HBM)

Cores:
Up to 32C/64T; Up to 105MB Cache

Note:
Supports up to 350W TDP CPUs (Liquid Cooled)
CPUs (Air Cooled) with TDP over 205W are only supported under specific conditions. Contact customer support for details.
Supports up to 205W TDP CPUs (Air Cooled)
Memory
(per Node)
Memory:
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 4800MHz ECC DDR5 RDIMM
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.47" (88mm)
Width:
17.68" (449mm)
Depth:
28.75" (730mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
HDD activity LED
Network activity LEDs
Power status LED
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32MB Flash ROM
Onboard Devices
(per Node)
Chipset:
Intel® C741

Network Connectivity:
Via AIOM

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
(per Node)
Hot-swap:
6x 2.5" hot-swap NVMe/SATA drive bays (2x PCI-E 5.0 NVMe/SATA and 4x PCI-E 4.0 NVMe/SATA)
M.2:
2 M.2 NVMe
Expansion Slots
(per Node)
PCI-Express (PCIe):
2 PCIe 5.0 x16 LP slot(s)
Power Supply
3000W 1U Redundant Power Supply
Total Output Power:
3000W : 208 - 240 Vac
3000W : 240 - 240 Vdc for CQC only

Dimension (W x H x L):
45 x 40 x 480 mm

AC Input:
1400W: 100-127Vac / 50-60Hz
2880W: 200-207Vac / 50-60Hz
3000W: 208-240Vac / 50-60Hz

DC Input:
3000W: 240-240Vdc for CQC only/ 50-60Hz

12V SB:
Max: 4.5A / Min: 0A

Certification:
Titanium Level

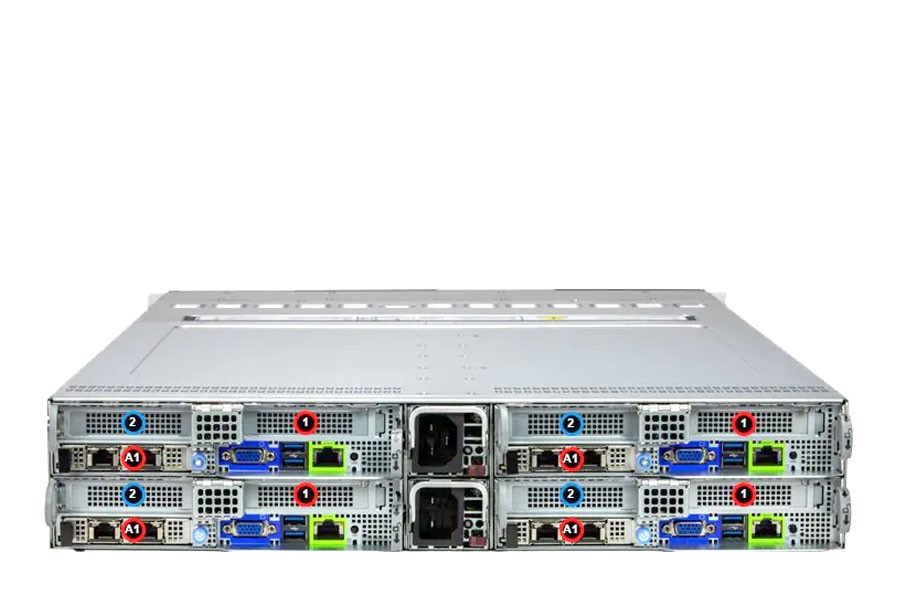

Input Output
(per Node)
LAN:
1 RJ45 Dedicated BMC LAN port

USB:
2 USB 3.1 port(s) (2 rear)

Video:
1 VGA port(s)

Others:
2x M.2 for boot drive or caching
M.2 form factor: NVMe double-sided 22x110mm
Note: Enterprise-grade M.2 only for caching application
Cooling
Fans:
4x 16K RPM Counter Rotating 8cm Fan(s)
Liquid Cooling:
Direct to Chip (D2C) Cold Plate (optional)
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
   5% to 95% (Non-Condensing)
Details
Management
Software:
Supermicro Out of Band (OOB) License (Included per Node)
SuperCloud Composer
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
IPMI 2.0
SUM
Watch Dog
SuperDoctor® 5
Power Configurations:
ACPI / APM Power Management
SYS-221BT-HNTRSYS-221BT-HNTRSYS-221BT-HNTRSYS-221BT-HNTRSYS-221BT-HNTR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Added
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Memory-1st Node
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Memory-2nd Node
*No Memory
Added
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Memory-3rd Node
*No Memory
Added
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Memory-4th Node
*No Memory
Added
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
(Optional) Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
4353
1
0.0000
