Supermico 2U 2Nodes Dual Processor Rackmount Server

Supermico 2U 2Nodes Dual Processor Rackmount Server

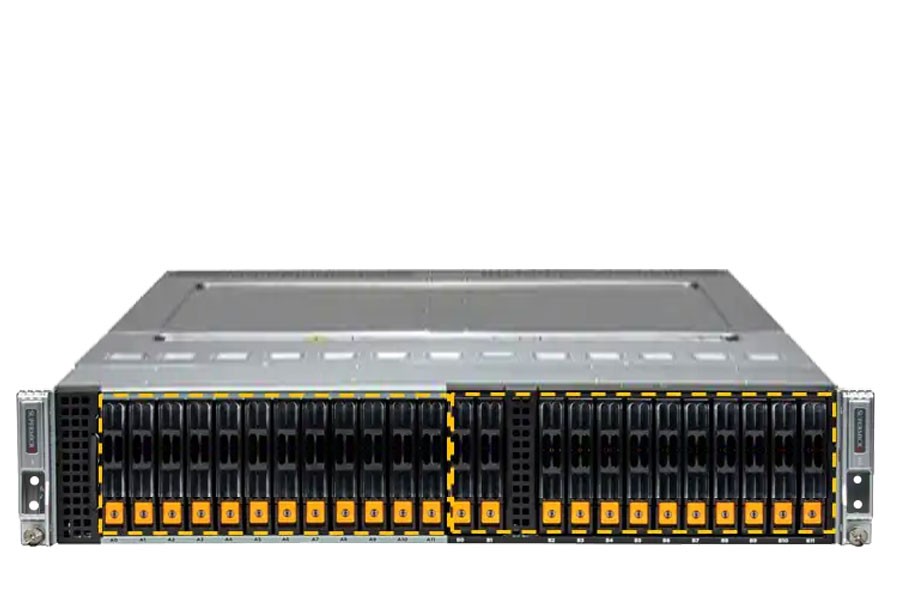

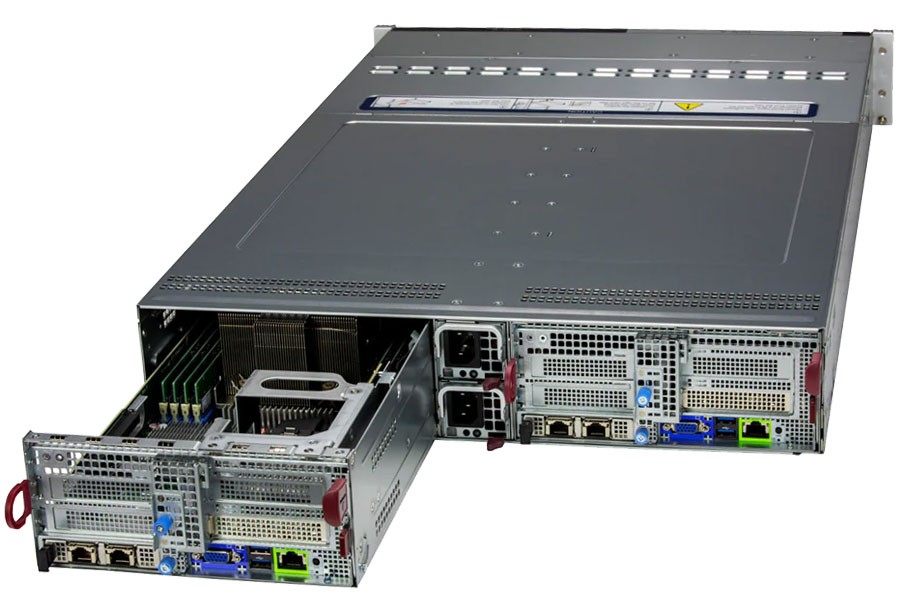

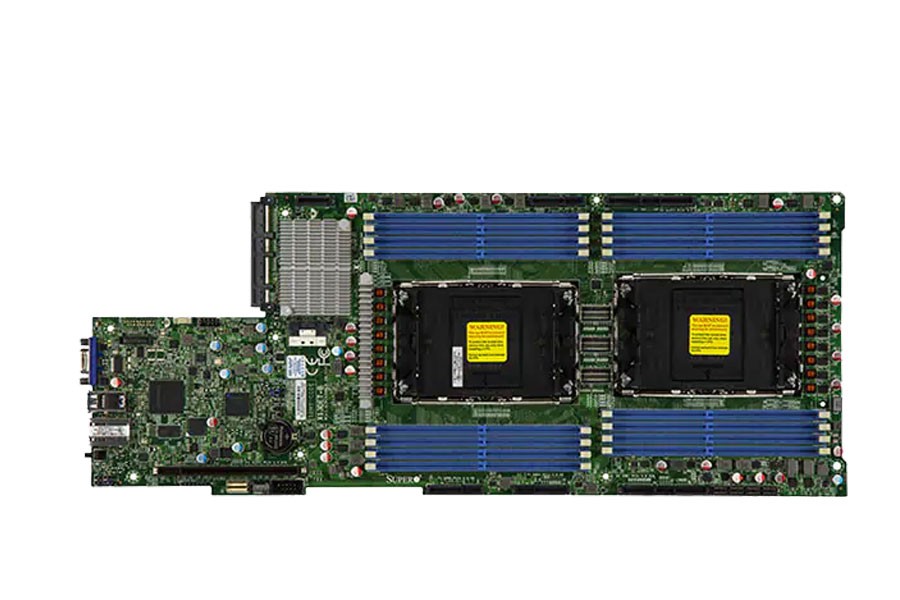

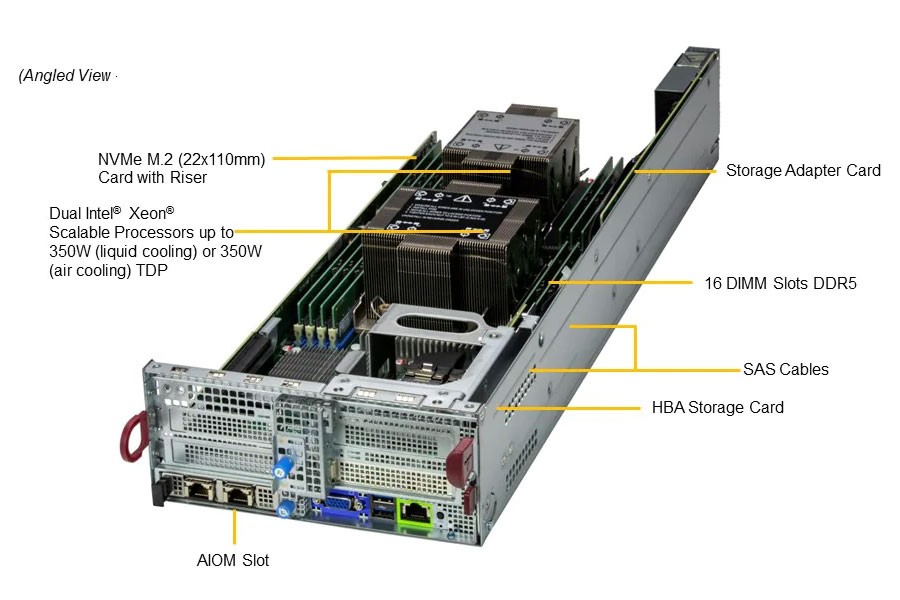

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
Intel® C741
16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
1 PCIe 5.0 x16 (LP) slot;
1 PCIe 5.0 x8 (LP) slot;
Tool-less support
Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
Network connectivity via AIOM (OCP 3.0 compliant)
Built-in SAS3 Support via Broadcom 3816; IT Mode
12 hot-Swap 2.5” drive bays (2x PCIe 5.0 NVMe/SAS and 10x PCIe 4.0 NVMe/SAS)
Liquid Cooling Support
4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
All-Flash Hyperconverged Infrastructure, All-Flash Storage Area Network, All-Flash Object Storage

Storage configuration notice:
(per node)
External:
12x 2.5" Hot-swap Drive Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node) Minimum 2 CPUs, 2 DIMMs, 1 NIC and 1 Drive per node.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-221BT-DNC8R
Processor	(per Node) CPU: Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) Core Count: Up to 64C/128T; Up to 320MB Cache per CPU Note: Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled)
Memory	(per Node) Memory: Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.47" (88mm) Width: 17.68" (449mm) Depth: 28.75" (730mm)
Front Panel	Buttons: Power On/Off button UID button LEDs: HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Bios	BIOS Type: AMI 32MB Flash ROM
Onboard Devices	(per Node) SAS: SAS3 (12Gbps) via Broadcom® 3816 (IT mode) Chipset: Intel® C741 Network Connectivity: Via AIOM IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	(per Node) Hot-swap: 12x 2.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 10x PCI-E 4.0 NVMe/SAS) M.2: 2 M.2 NVMe
Expansion Slots	(per Node) PCI-Express (PCIe): 1 PCIe 5.0 x8 LP slot(s) 1 PCIe 5.0 x16 LP slot(s)
Power Supply	2200W Redundant Power Supplies with PMBus Total Output Power: 2200W : 100 - 240 Vac 2090W : 230 - 240 Vdc for CCC only Dimension (W x H x L): 45 x 40 x 480 mm AC Input: 1200W: 100-127Vac / 50-60Hz 2090W: 180-220Vac (for UL/cUL only) 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac (for UL/cUL only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc (for CCC only) +12V: Max: 100A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) Max: 174.17A / Min: 0A (230-240Vac) Max: 174.17A / Min: 0A (230-240Vdc, CCC only) Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) 12V SB: Max: 2.1A / Min: 0A Certification: Titanium Level

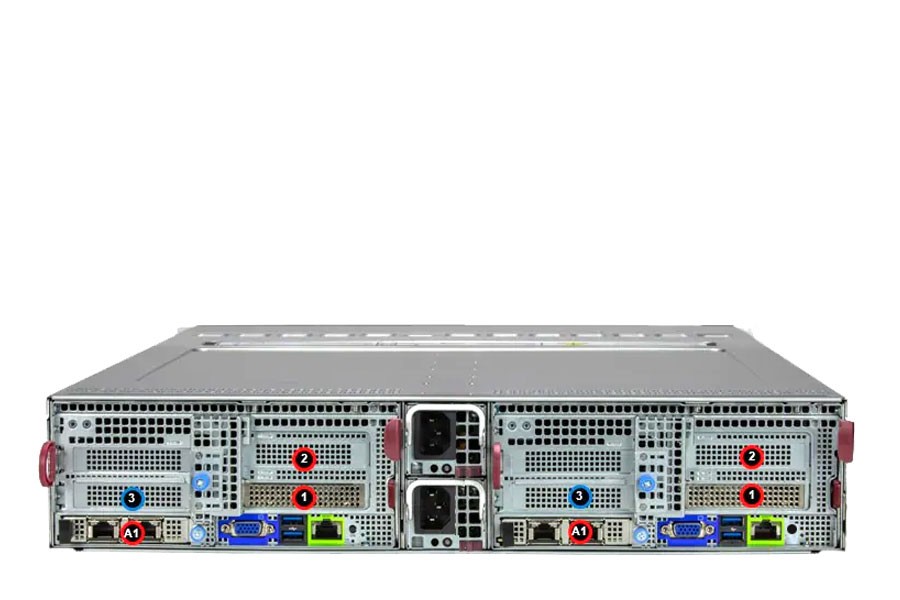

Input Output	(per Node) LAN: 1 RJ45 Dedicated BMC LAN port USB: 2 USB 3.1 port(s) (2 rear) Video: 1 VGA port(s) Others: 2x M.2 for boot drive or caching M.2 form factor: NVMe double-sided 22x110mm Note: Enterprise-grade M.2 only for caching application
Cooling	Fans: 4x 16.5K RPM Heavy Duty 8cm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Operating Environment	RoHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Details	Management Software: Supermicro Out of Band (OOB) License (Included per Node) SuperCloud Composer SSM Intel® Node Manager SPM KVM with dedicated LAN IPMI 2.0 SUM Watch Dog SuperDoctor® 5 Power Configurations: ACPI / APM Power Management

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU-1st Node

Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)

Added

Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6426Y (2.50 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558 (2.10 Ghz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6558Q (3.20 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558P (2.70 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8570 (2.10 Ghz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8580 (2.00 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8592V (2.00 Ghz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8592+ (1.90 Ghz 350W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)

Memory-1st Node

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

CPU-2nd Node

*No Processor
