SYS-221BT-HNC9R
$14,304.00 Configured Summary
SYS-221BT-HNC9R
Supermicro 2U 4Nodes Dual Processor Rackmount Server

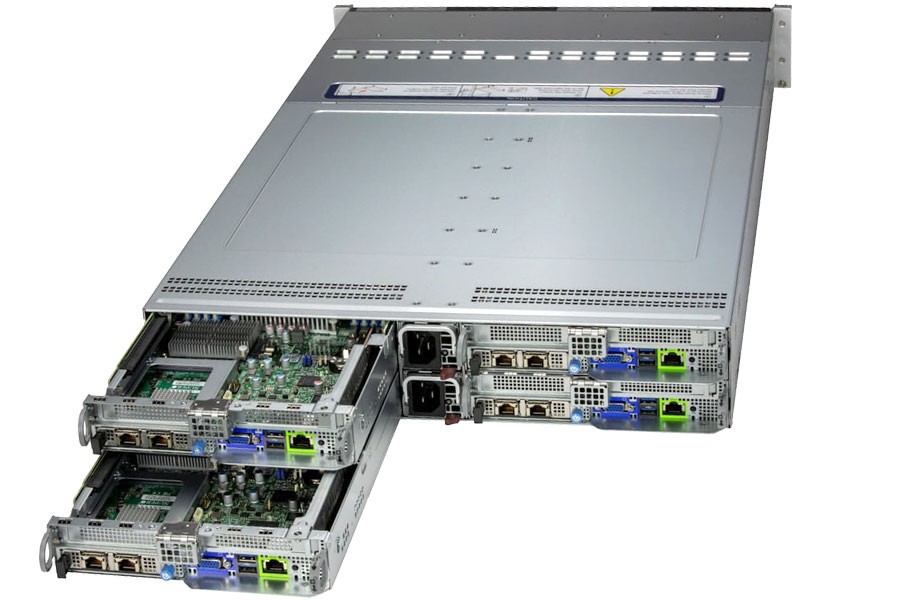

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

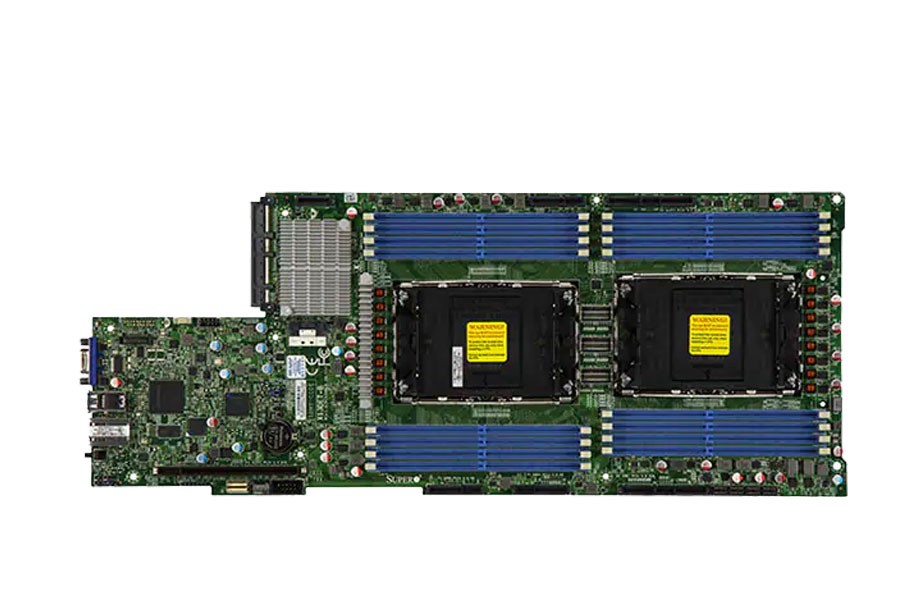

  • Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
  • Intel® C741
  • 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
  • Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
  • 1 PCIe 5.0 x16 (LP) slot;
  • Tool-less support
  • Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
  • Network connectivity via AIOM (OCP 3.0 compliant)
  • 6 hot-swap 2.5" drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS)
  • Built-in SAS3 Support via Broadcom 3908; IR Mode
  • Liquid Cooling Support
  • 4 cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design, Counter-Rotating
  • 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • Mission Critical HPC, Virtualized Big Data Analytics, High-Density Storage RAID Array

Storage configuration notice:
(per node)
External:

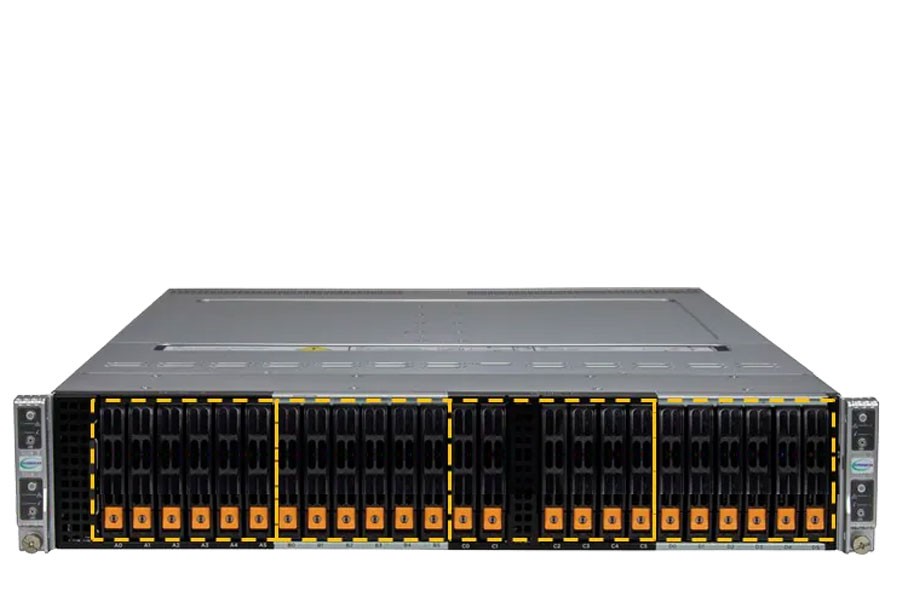

6x 2.5" Hot-swap Drive Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node) Minimum 2 CPUs, 2 DIMMs, 1 NIC and 1 Drive per node.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-221BT-HNC9R

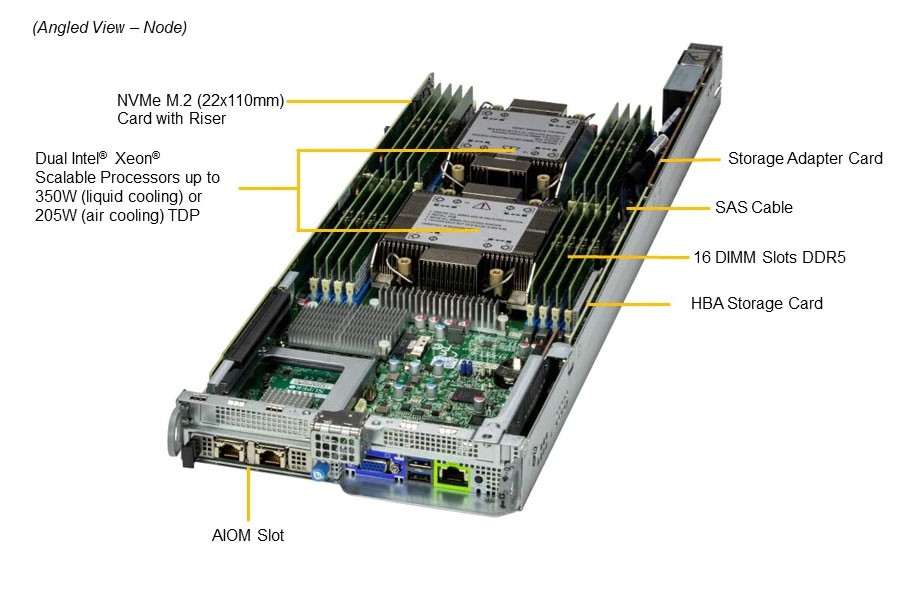

Processor
(per Node)
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​

Core Count:
Up to 64C/128T; Up to 320MB Cache per CPU

Note:
Supports up to 205W TDP CPUs (Air Cooled)
Supports up to 350W TDP CPUs (Liquid Cooled)​
Air Cooled CPUs with TDP over 205W only supported under specific conditions.
Memory
(per Node)
Memory:
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.47" (88mm)
Width:
17.68" (449mm)
Depth:
28.75" (730mm)
Front Panel
Buttons:
Power On/Off button
UID button

LEDs:
HDD activity LED
Network activity LEDs
Power status LED
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32MB Flash ROM
Onboard Devices
(per Node)
SAS:
SAS3 (12Gbps) via Broadcom® 3908; RAID 0, 1, 5, 6, 10, 50 support

Chipset:
Intel® C741

Network Connectivity:
Via AIOM

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
(per Node)
Hot-swap:
6x 2.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 4x PCI-E 4.0 NVMe/SAS)

M.2:
2 M.2 NVMe
Expansion Slots
(per Node)
PCI-Express (PCIe):
1 PCIe 5.0 x16 LP slot(s)
Power Supply
3000W 1U Redundant Power Supply
Total Output Power:
3000W : 208 - 240 Vac
3000W : 240 - 240 Vdc for CQC only

Dimension (W x H x L):
45 x 40 x 480 mm

AC Input:
1400W: 100-127Vac / 50-60Hz
2880W: 200-207Vac / 50-60Hz
3000W: 208-240Vac / 50-60Hz

DC Input:
3000W: 240-240Vdc for CQC only/ 50-60Hz

12V SB:
Max: 4.5A / Min: 0A

Certification:
Titanium Level

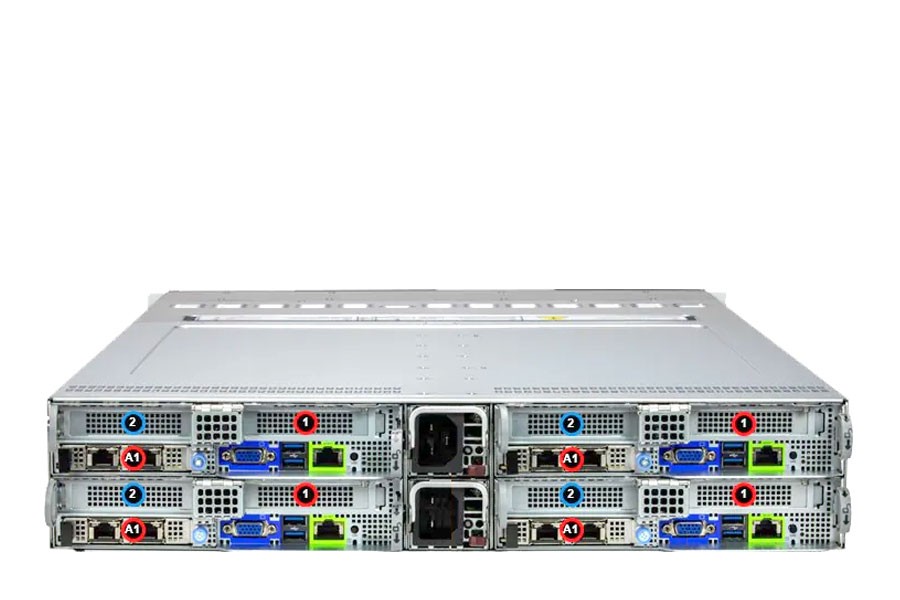

Input Output
(per Node)
LAN:
1 RJ45 Dedicated BMC LAN port

USB:
2 USB 3.1 port(s) (2 rear)

Video:
1 VGA port(s)

Others:
2x M.2 for boot drive or caching
M.2 form factor: NVMe double-sided 22x110mm
Note: Enterprise-grade M.2 only for caching application
Cooling
Fans:
4x 16K RPM Counter Rotating 8cm Fan(s)
Liquid Cooling:
Direct to Chip (D2C) Cold Plate (optional)
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
   5% to 95% (Non-Condensing)
Details
Management
Software:
Supermicro Out of Band (OOB) License (Included per Node)
SuperCloud Composer
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
IPMI 2.0
SUM
Watch Dog
SuperDoctor® 5
Power Configurations:
ACPI / APM Power Management
