SYS-621BT-DNC8R
$9,095.00 Configured Summary
SYS-621BT-DNC8R

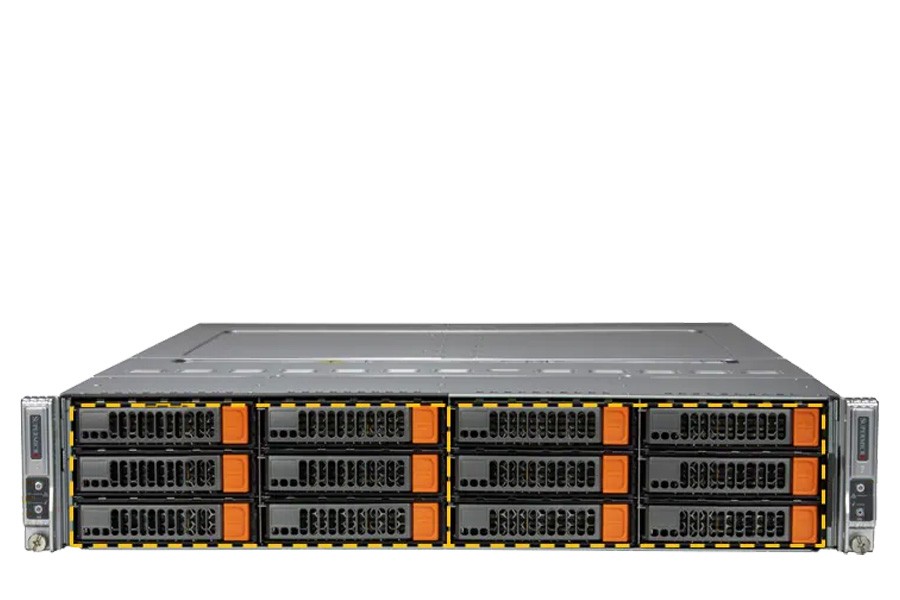

Supermicro 2U 2Nodes Dual Processor Rackmount Server

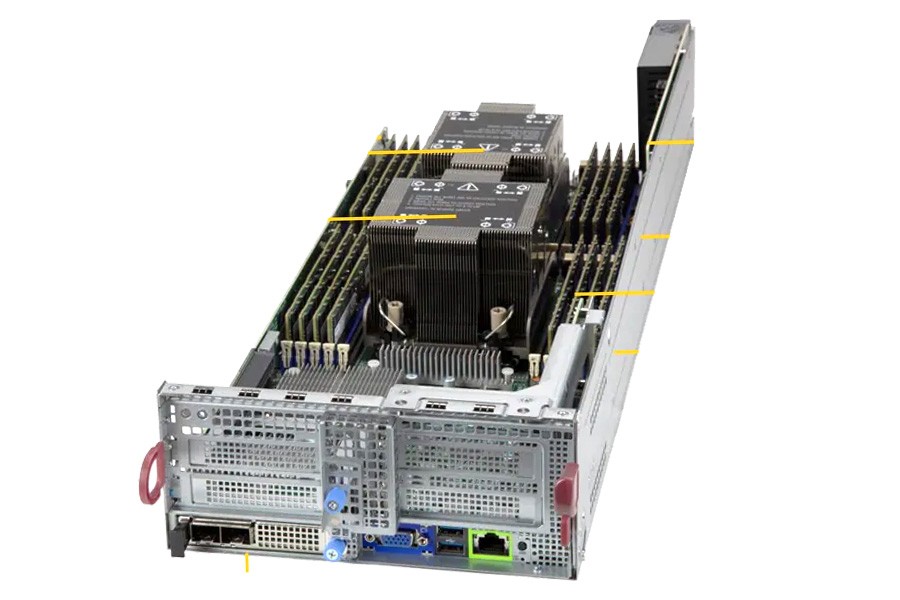

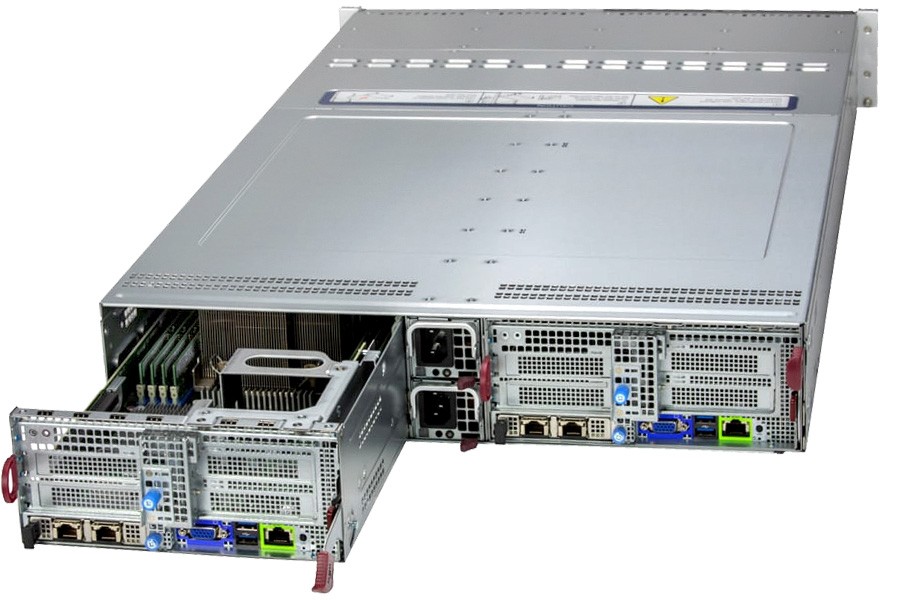

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
  • Intel® C741
  • 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
  • Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
  • 1 PCIe 5.0 x16 (LP) slot;
  • 2 PCIe 5.0 x8 (LP) slot;
  • Tool-less support
  • Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
  • Network connectivity via AIOM (OCP 3.0 compliant)
  • Built-in SAS3 Support via Broadcom 3808; IT Mode
  • 6 Hot-Swap 3.5” drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS)
  • Liquid Cooling Support, 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
  • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • Hyperconverged Infrastructure, Scale-Out Object Storage, Back-up & Recovery

Storage configuration notice:
(per node)
External:
6x 3.5" Hot-swap Drive Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node) Minimum 2 CPUs, 2 DIMMs, 1 NIC and 1 Drive per node.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-621BT-DNC8R
Processor
(per Node)
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​

Core Count:
Up to 64C/128T; Up to 320MB Cache per CPU

Note:
Supports up to 300W TDP CPUs (Air Cooled)
Supports up to 350W TDP CPUs (Liquid Cooled)​


Max GPU Count:
Up to 1 double-width or 1 single-width GPU(s)
Memory
(per Node)
Memory:
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.47" (88mm)
Width:
17.68" (449mm)
Depth:
30.5" (774mm)
Front Panel
Buttons:
Power On/Off button
UID button

LEDs:
HDD activity LED
Network activity LEDs
Power status LED
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32MB Flash ROM
Onboard Devices
(per Node)
SAS:
SAS3 (12Gbps) via Broadcom® 3808 (IT mode)

Chipset:
Intel® C741

Network Connectivity:
Via AIOM

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
(per Node)
Hot-swap:
6x 3.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 4x PCI-E 4.0 NVMe/SAS)
M.2:
2 M.2 NVMe
Expansion Slots
(per Node)
PCI-Express (PCIe):
2 PCIe 5.0 x8 LP slot(s)
1 PCIe 5.0 x16 LP slot(s)
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power:
2200W : 100 - 240 Vac
2090W : 230 - 240 Vdc for CCC only

Dimension (W x H x L):
45 x 40 x 480 mm

AC Input:
1200W: 100-127Vac / 50-60Hz
2090W: 180-220Vac (for UL/cUL only)
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac (for UL/cUL only)
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc (for CCC only)

+12V:
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)

12V SB:
Max: 2.1A / Min: 0A

Certification:
Titanium Level

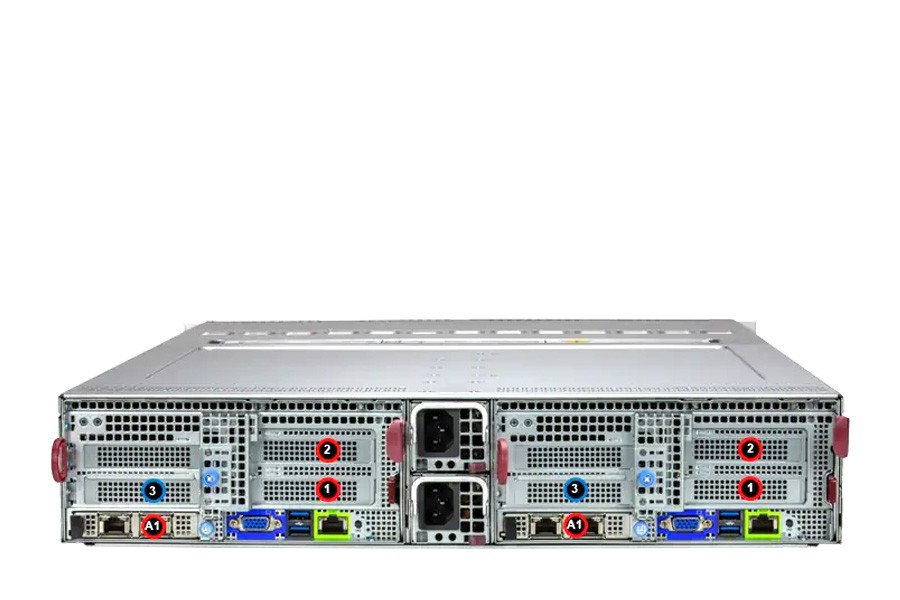

Input Output
(per Node)
LAN:
1 RJ45 Dedicated BMC LAN port

USB:
2 USB 3.1 port(s) (2 rear)

Video:
1 VGA port(s)

Others:
2x M.2 for boot drive or caching
M.2 form factor: NVMe double-sided 22x110mm
Note: Enterprise-grade M.2 only for caching application
Cooling
Fans:
4x 14.9K RPM Heavy Duty 8cm Fan(s)
Liquid Cooling:
Direct to Chip (D2C) Cold Plate (optional)
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
   5% to 95% (Non-Condensing)
Details
Management
Software:
Supermicro Out of Band (OOB) License (Included per Node)
SuperCloud Composer
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
IPMI 2.0
SUM
Watch Dog
SuperDoctor® 5

Power Configurations:
ACPI / APM Power Management
SYS-621BT-DNC8RSYS-621BT-DNC8RSYS-621BT-DNC8RSYS-621BT-DNC8RSYS-621BT-DNC8R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
- $370.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Added
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
+ $144.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
+ $182.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
+ $534.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
+ $1,014.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
+ $1,314.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
+ $1,560.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
+ $1,638.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
+ $1,808.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $2,094.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
+ $2,366.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
+ $2,652.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $2,782.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)
+ $3,874.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
+ $4,186.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $4,576.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
+ $5,538.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
+ $5,746.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
+ $6,422.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)
+ $6,422.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $6,656.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $6,708.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
+ $6,916.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)
+ $83,798.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $7,800.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
+ $7,866.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)
+ $8,108.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
+ $8,230.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
+ $8,996.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
+ $9,386.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $10,816.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
+ $12,896.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)
+ $13,404.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
+ $13,858.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
+ $15,626.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)
+ $15,626.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)
+ $17,446.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
+ $23,296.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
+ $42,458.00
Memory-1st Node
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $136.00
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $68.00
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $6.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $124.00
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $198.00
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $310.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $560.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $690.00
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
+ $517.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
+ $702.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
+ $702.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
+ $702.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
+ $774.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
+ $793.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
+ $969.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
+ $1,209.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
+ $1,359.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
+ $1,482.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
+ $1,521.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
+ $1,606.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $1,749.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
+ $1,885.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
+ $2,028.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $2,093.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)
+ $2,639.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
+ $2,795.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $2,990.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
+ $3,471.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
+ $3,575.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)
+ $3,913.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
+ $3,913.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $4,030.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $4,056.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
+ $4,160.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)
+ $4,511.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $4,602.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
+ $4,635.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)
+ $4,756.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
+ $4,817.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
+ $5,200.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
+ $5,395.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $6,110.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
+ $7,150.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)
+ $7,404.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
+ $7,631.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)
+ $8,515.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
+ $8,515.00
Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)
+ $9,425.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
+ $12,350.00
Memory-2nd Node
*No Memory
Added
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $208.00
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $276.00
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $338.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $344.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $468.00
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $542.00
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $654.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $904.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,034.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $39.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $74.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $114.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $134.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $168.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $201.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $229.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $282.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $343.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $417.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $152.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $438.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $568.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,153.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,323.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $191.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $347.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $698.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,348.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,713.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $144.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $319.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $714.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,400.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,607.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Added
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $41.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $62.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $117.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $184.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $242.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $319.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $352.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
- $145.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
- $118.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $122.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $48.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $30.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $448.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,038.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $100.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $136.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $187.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $221.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $260.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $234.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $271.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $317.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $395.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,423.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,735.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,904.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4366
1
7200.0000
