SYS-621P-TR
$4,308.00 Configured Summary
SYS-621P-TR
Supermicro 2U 8Bays Dual Processor Rackmount Server

  • Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  • 16 DIMM slots, Up to 4TB DDR5-4800MHz ECC Registered RDIMM
  • 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
  • 1200W Redundant Titanium level Power Supplies
  • Virtualization, Enterprise Server, Application and data serving, Compute Intensive Applications
Storage configuration notice:
External:
8x 3.5" Hot-swap HDD Bays
2x M.2

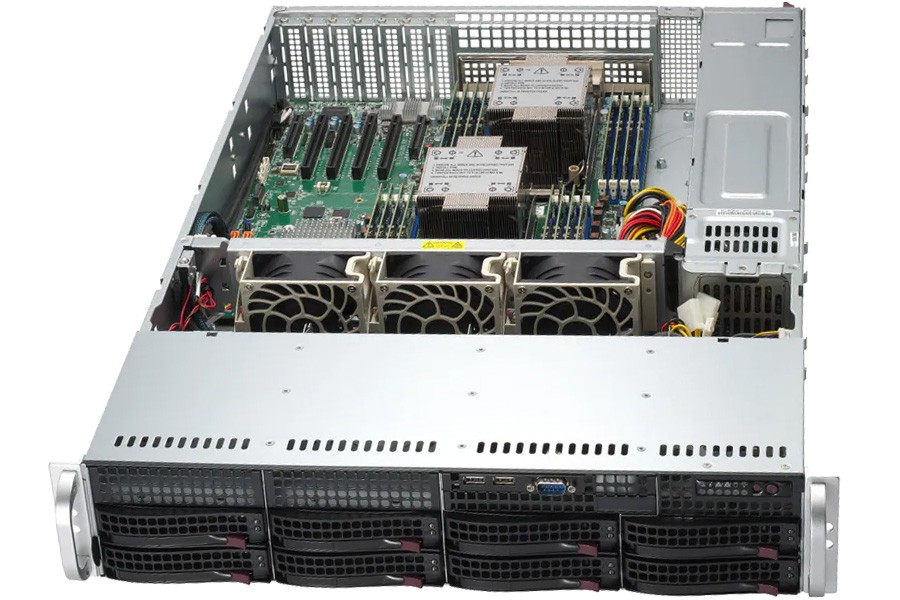

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-621P-TR
Processor
CPU:
Dual Socket E (LGA-4677)
4th Gen Intel® Xeon® Scalable processors

Note:
Supports up to 300W TDP CPUs (Air Cooled)
CPUs with high TDP (Air Cooled) only supported under specific conditions.  Contact Technical Support for details
Memory
Memory:
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 4800MHz ECC DDR5 RDIMM
Chassis
Form Factor:
2U Rackmount
Model:
CSE-825BTS-R1K23LPP1
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
25.5" (647mm)
Front Panel
Buttons:
Power On/Off
System Reset
LEDs:
HDD activity
Network activity
Power status
System information (overheat/UID)
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM
Onboard Devices
SATA:
SATA3 (6Gbps)

Chipset:
Intel® C741

Network Connectivity:
2x 1GbE port(s)

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
8x 3.5" hot-swap SATA3 drive bays (Configurable option for 8 hot-swap SAS or 4x hot-swap NVMe drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list)

M.2:
2 M.2 NVMe

Peripheral Bays:
1x slim DVD drive bays (optional)
Expansion Slots
PCI-Express (PCIe):
2 PCIe 5.0 x8 LP slot(s)
4 PCIe 5.0 x16 LP slot(s)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Dimension (W x H x L):
76 x 40 x 336 mm

AC Input:
1000W: 100-127Vac / 15A-12A / 50-60Hz
1200W: 200-240Vac / 8.5A-7A / 50-60Hz

+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)

5V SB:
Max: 4A / Min: 0A

Output Type:
19 Pairs Gold Finger Connector

Certification:
Titanium Level
Input Output
LAN:
1 RJ45 Dedicated BMC LAN port

USB:
2 USB 2.0 port(s) (2 front)
4 USB 3.0 port(s) (4 rear)

Video:
1 VGA port(s)

Serial Port:
2 COM Port(s) (1 front; 1 rear)

DOM:
2 SuperDOM (Disk on Module) port
Cooling
Fans:
3 middle 8cm Fan(s)
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Supermicro Out of Band (OOB) License  (included in the unit)
IPMI2.0
Redfish API
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Power Configurations:
ACPI/APM Power Management
SYS-621P-TRSYS-621P-TRSYS-621P-TRSYS-621P-TRSYS-621P-TR

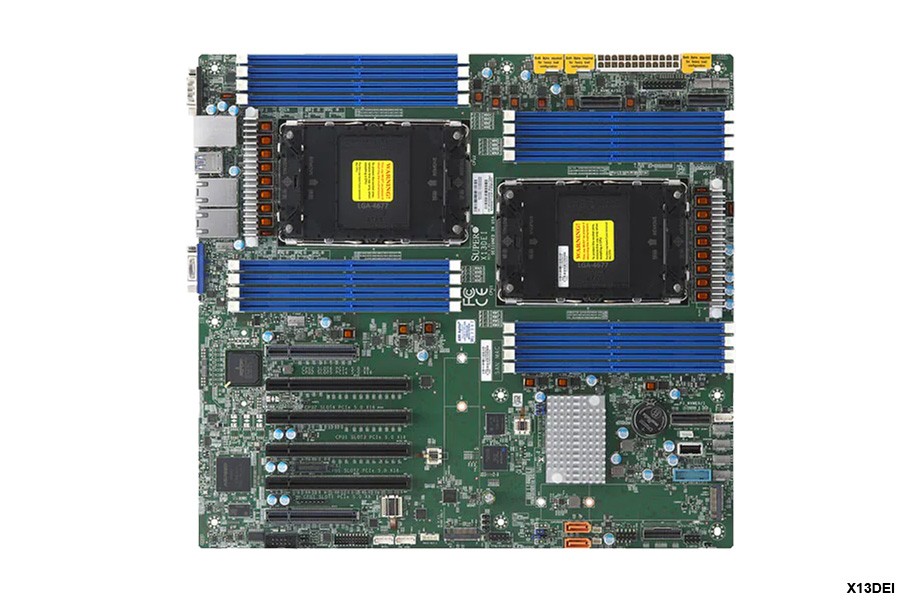

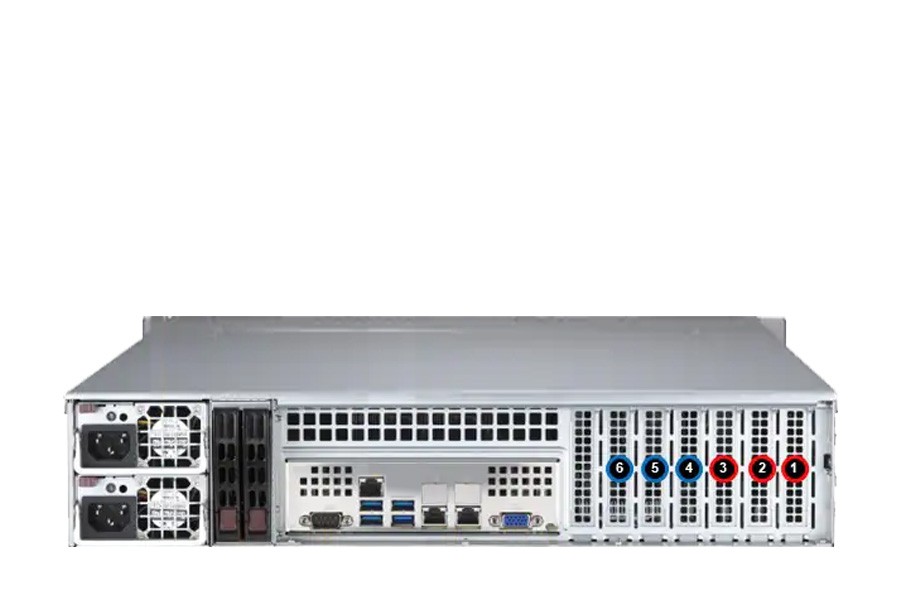

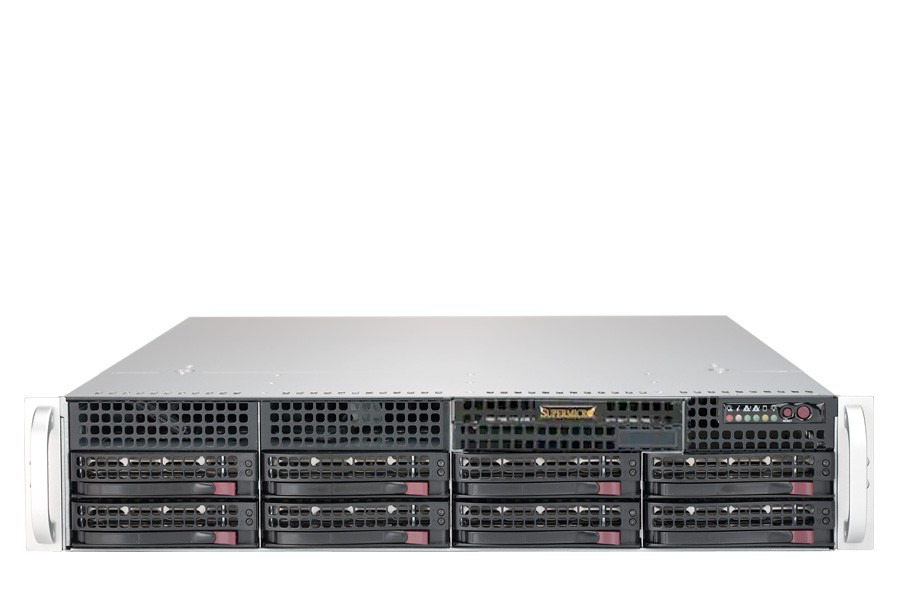

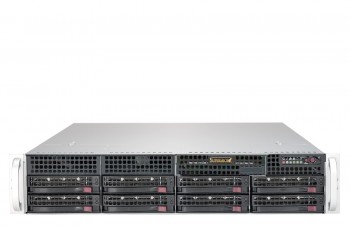

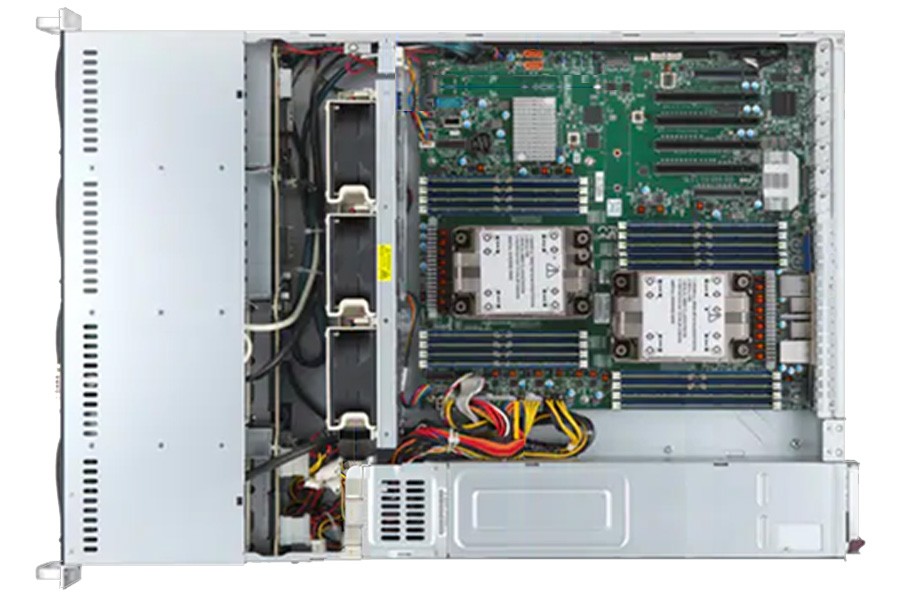

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
- $689.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
- $780.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Added
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $267.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
- $273.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $611.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $1,508.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $2,548.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
+ $1,313.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $2,574.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $3,120.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
+ $3,913.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $4,628.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
+ $3,718.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
+ $7,033.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)
+ $7,293.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
+ $5,668.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
+ $6,149.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)
+ $7,878.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)
+ $16,296.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)
+ $7,683.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)
+ $10,608.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
+ $10,868.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)
+ $12,363.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
+ $20,449.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
- $34.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
+ $280.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
+ $62.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
+ $99.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
+ $345.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $61.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $108.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $208.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $119.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $139.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $155.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $242.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $468.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
+ $533.00
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
+ $855.00
Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,117.00
Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,299.00
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
+ $1,323.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4368
1
2525.0000
