Supermicro 5U 24Bays Dual Processor Rackmount GPU Server

Supermicro 5U 24Bays Dual Processor Rackmount GPU Server

Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 385W TDP CPUs (Liquid Cooled)
Default 8 heavy duty fans with optimal fan speed control
optional Liquid Cooling:
Direct to Chip (D2C) Cold Plate

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
AIOM/OCP 3.0 Support
13 PCIe Gen 5.0 X16 FHFL Slots
8x HOT SWAP 2.5” SATA/SAS (AOC required), 8x 2.5" Hot-swap SATA drive bays, 8x2.5" Hot-swap NVMe drive bays
10 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2700W (2+2) Redundant Power Supplies, Titanium Level
High Performance Computing, VDI, AI/Deep Learning Training, Media/Video Streaming, Cloud Gaming, Animation and Modeling, Design & Visualization, 3D Rendering, Diagnostic Imaging

To maintain quality and integrity, this product is sold only as a completely-assembled system
System (SKU) SYS-521GE-TNRT

Processor Spec 2x Intel® Xeon® EMR 8562Y+ 2P 32C2.8G300W

GPU 8x NVIDIA L40s

Memory 1 TB (16x 64 GB DDR5)

Storage 16 TB raw capacity (4x 3.8 TB NVMe SSDs)

Boot Drives 2x 960 GB M.2 SSD

Networking 2x 400GbE NICs ,1x Single/Dual Port 100G OCP 3.

And 1x CX7 NIC to CPU OR 2x CX7 NICs to each CPU

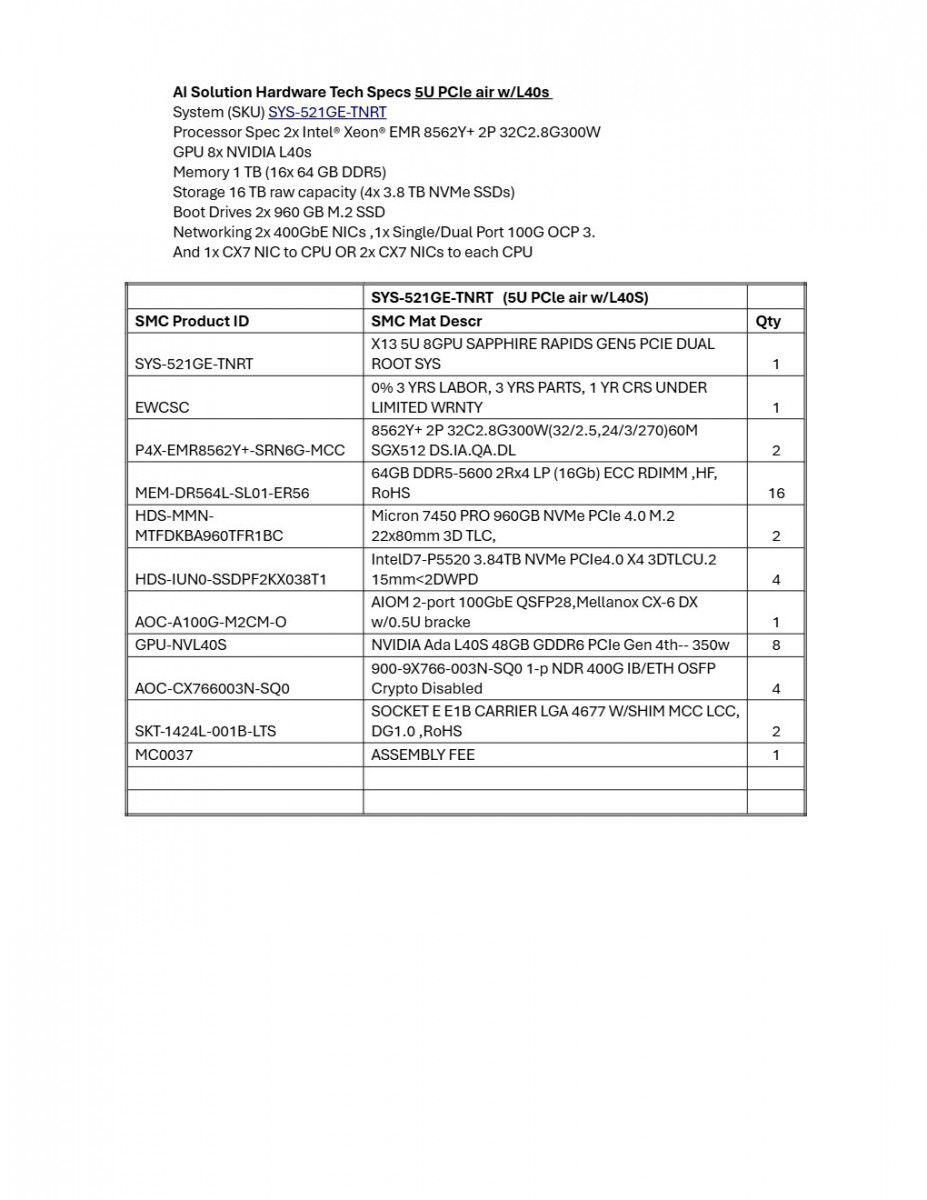

	SYS-521GE-TNRT (5U PCle air w/L40S)
SMC Product ID	SMC Mat Descr	Qty
SYS-521GE-TNRT	X13 5U 8GPU SAPPHIRE RAPIDS GEN5 PCIE DUAL ROOT SYS	1
EWCSC	0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY	1
P4X-EMR8562Y+-SRN6G-MCC	8562Y+ 2P 32C2.8G300W(32/2.5,24/3/270)60M SGX512 DS.IA.QA.DL	2
MEM-DR564L-SL01-ER56	64GB DDR5-5600 2Rx4 LP (16Gb) ECC RDIMM ,HF, RoHS	16
HDS-MMN-MTFDKBA960TFR1BC	Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC,	2
HDS-IUN0-SSDPF2KX038T1	IntelD7-P5520 3.84TB NVMe PCIe4.0 X4 3DTLCU.2 15mm<2DWPD	4
AOC-A100G-M2CM-O	AIOM 2-port 100GbE QSFP28,Mellanox CX-6 DX w/0.5U bracke	1
GPU-NVL40S	NVIDIA Ada L40S 48GB GDDR6 PCIe Gen 4th-- 350w	8
AOC-CX766003N-SQ0	900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled	4
SKT-1424L-001B-LTS	SOCKET E E1B CARRIER LGA 4677 W/SHIM MCC LCC, DG1.0 ,RoHS	2
MC0037	ASSEMBLY FEE	1

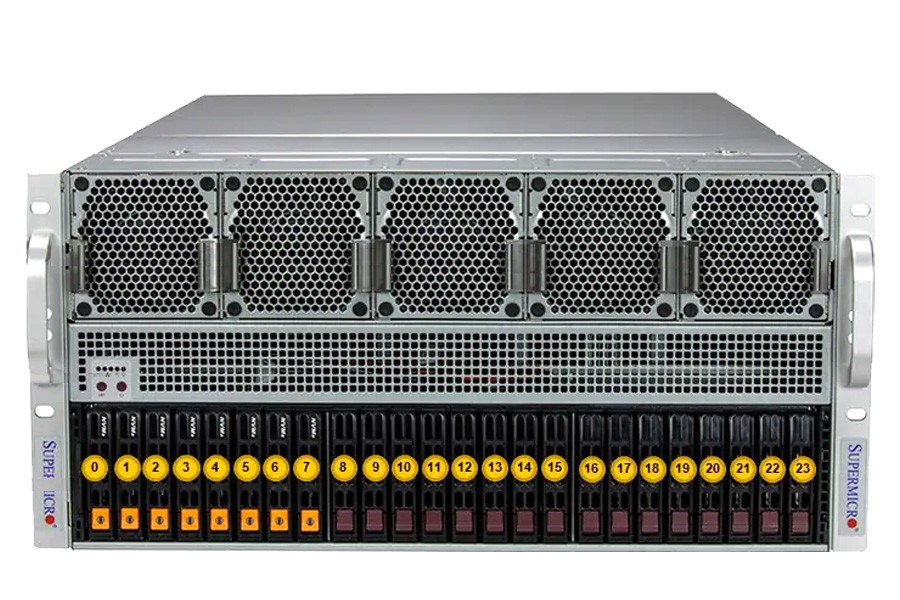

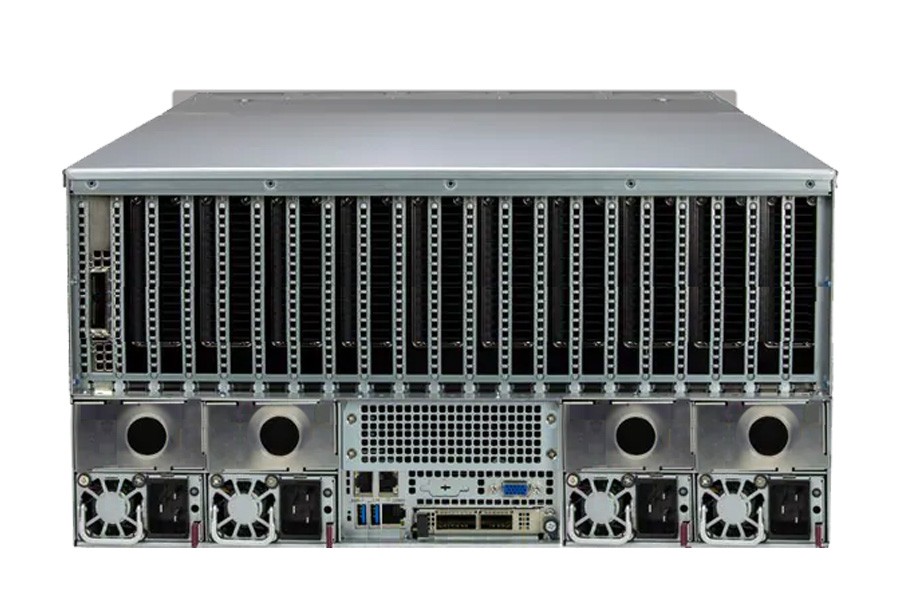

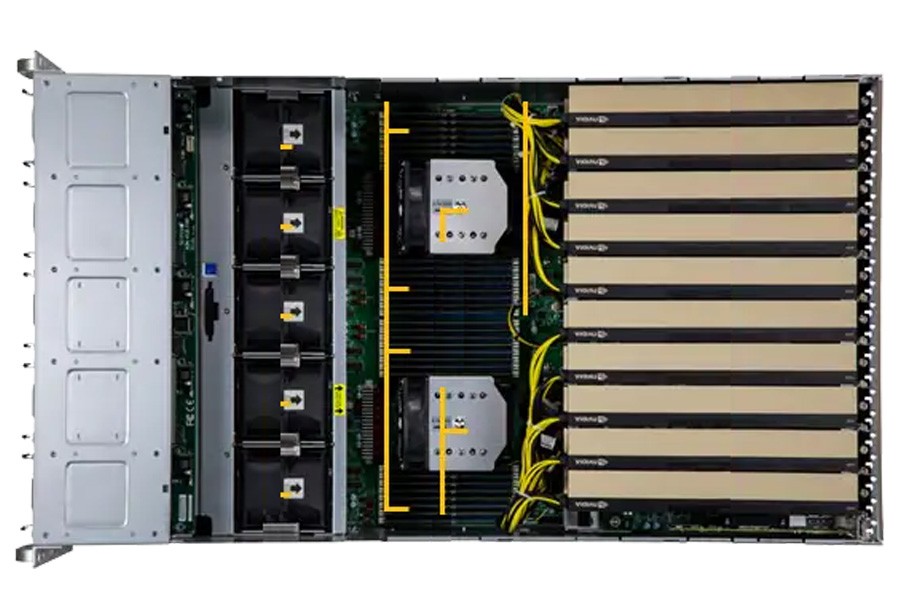

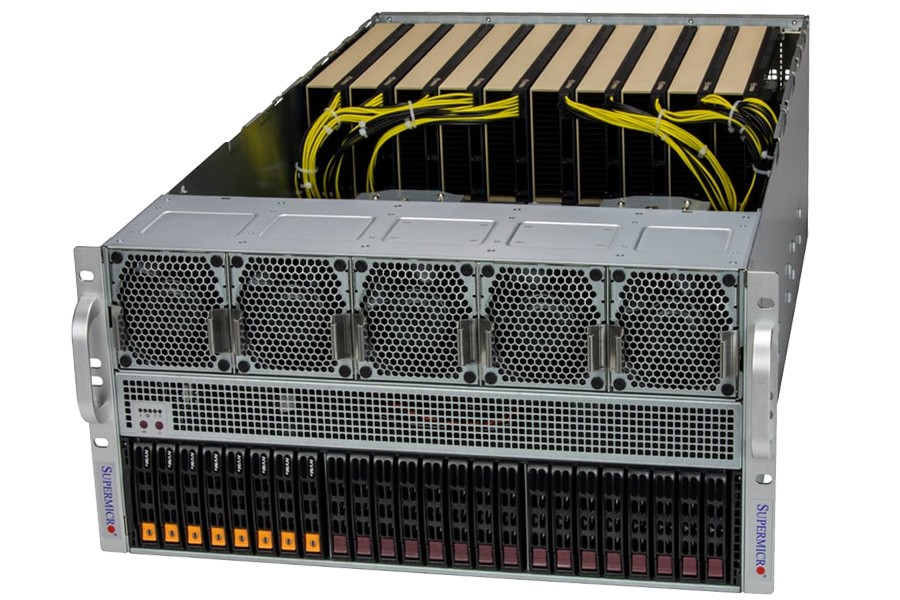

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-521GE-TNRT
Processor	CPU: Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: Up to 64C/128T; Up to 320MB Cache per CPU Note: Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled) Max GPU Count: Up to 10 double-width or 10 single-width GPU(s) Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40S, A100 CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional)
Memory	Memory: Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM Memory Voltage: 1.1V
Chassis	5U Rackmount Chassis
Dimensions	Height: 8.75" (222.5mm) Width: 17.2" (437mm) Depth: 29" (737mm)
Front Panel	Buttons: Power On/Off button System Reset button LEDs: Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Bios	BIOS Type: AMI 32MB SPI Flash EEPROM
Onboard Devices	Chipset: Intel® C741 Network Connectivity: 2x 10GbE BaseT with Intel® X710-AT2 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	Hot-swap: 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid; 8x 2.5" NVMe dedicated) M.2: 2 M.2 NVMe
Expansion Slots	12 PCIe 5.0 x16 FHFL slot(s) 1 PCIe 5.0 X16 FHFL slot(s)
Power Supply	2700W Redundant Titanium Level power supplies Dimension (W x H x L): 73.5 x 40 x 203 mm AC Input: 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12V: Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SB: Max: 3.5A / Min: 0A Max: 4A / Min: 0A Output Type: Backplanes (gold finger) Certification: Titanium Level
Input Output	Video: 1 VGA port(s)
Cooling	Fans: 8 heavy duty fans with optimal fan speed control Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Operating Environment	Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Details	Supported GPU: NVIDIA PCIe: H100, H100 NVL, L40S, L40, A100 Intel® Data Center GPU CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional)
