1024US-TRT
Please Inquire Configured Summary
1024US-TRT

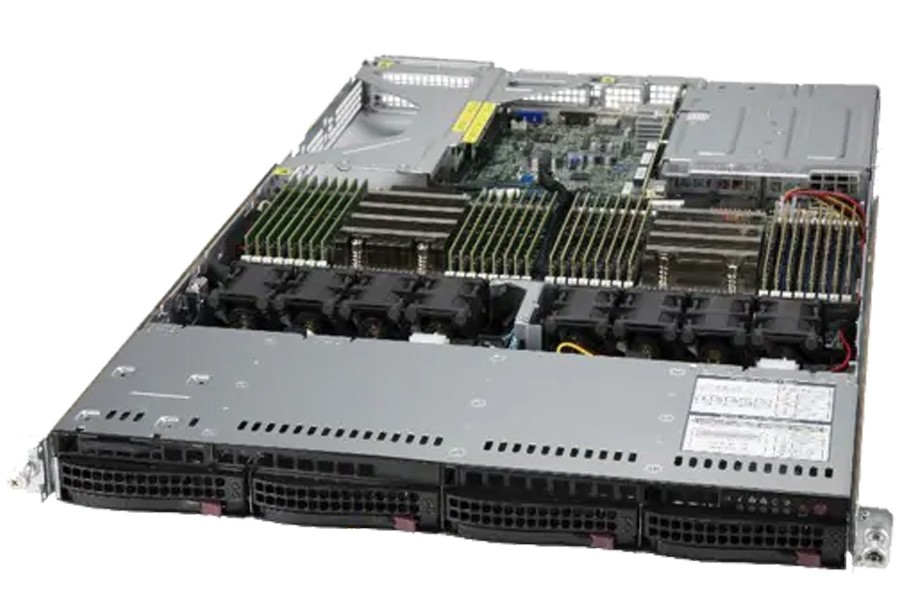

Supermicro 1U 4Bays Dual AMD Rackmount Server

  • Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  • Expansion slots:, 2 PCI-E 4.0 x16 (FH / 9.5"L) slots, 1 PCI-E 4.0 x16 (LP) slot, 1 PCI-E 4.0 x16 (internal proprietary LP slot)
  • Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License, key (SFT-OOB-LIC) included, for OOB BIOS management
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • Drive Bays: 4 hot-swap 3.5" SATA3 by default or 4 NVMe (via optional drive tray) or 4 SAS3 (via optional SAS kit)
  • 1000W Redundant Power Supplies Titanium Level (96%+)(Full redundancy based on configuration and application load)
  • Virtualization, Cloud Computing, High End Enterprise Server

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.

Storage configuration notice:
External:
4x 3.5" Hot-swap Drive Bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 1024US-TRT

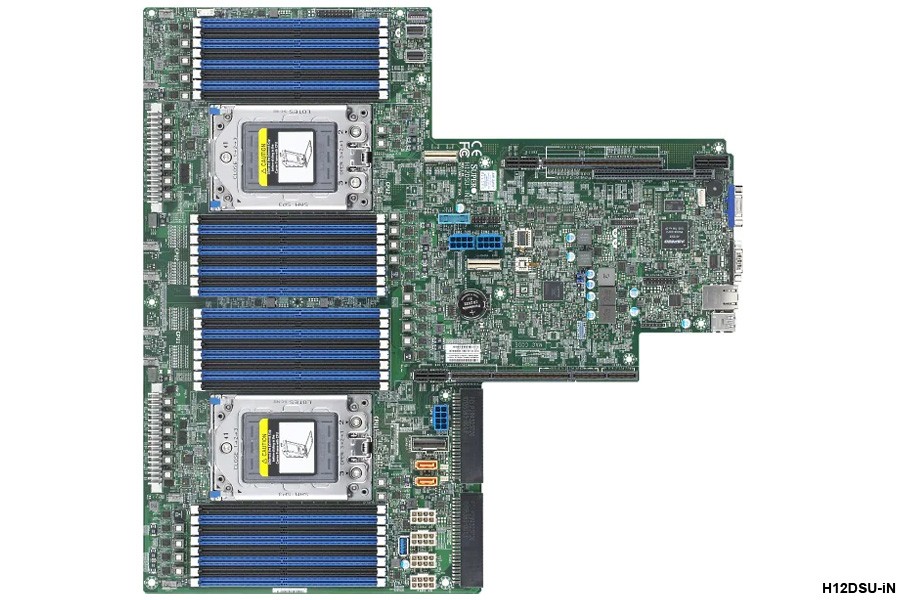

Processor
CPU:
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Supports CPU TDP up to 280W
Cores:
Up to 64 Cores
Chipset:
System on Chip (SoC)
Note:
Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
Memory
Memory Capacity:
32 DIMM slots
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
Memory Type:
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
29" (737mm)

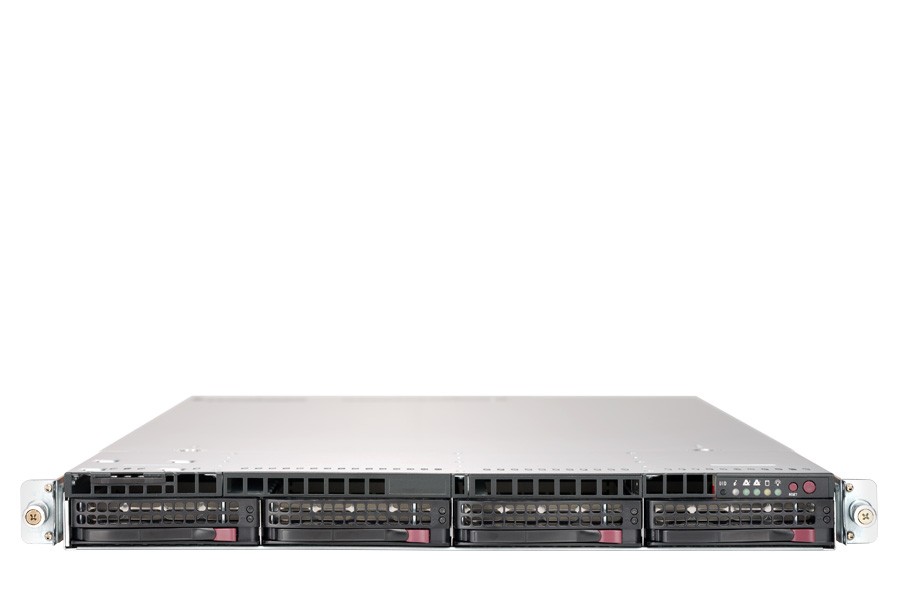

Front Panel
Buttons：
Power On/Off button
System Reset button
LEDs：
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 128Mb SPI Flash EEPROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Onboard Devices
VGA:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
4 Hot-swap 3.5" SATA3 drive bays
HDD Backplane:
Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD
Expansion Slots
2 PCI-E 4.0 x16 (FH/HL 9.5") slots
1 PCI-E 4.0 x16 (LP) slot
1 PCI-E 4.0 x16 (internal proprietary LP slot)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power:
800W/1000W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
200-240Vdc / 7 - 5A (for CCC only)
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
Max: 83A / Min: 0A (200-240Vdc)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level

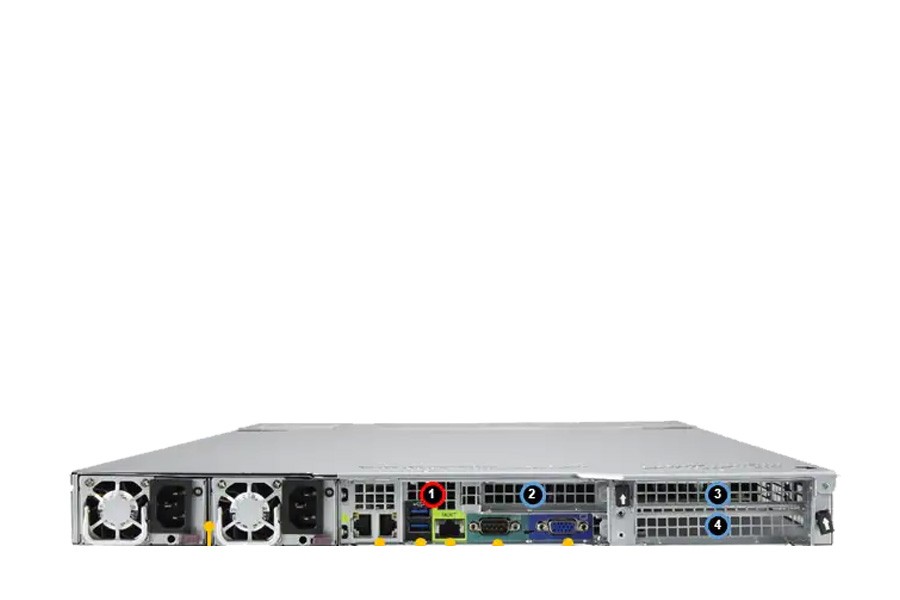

Input Output
SATA:
4 SATA3 (6 Gbps) ports
LAN:
Dual 10GBase-T LAN ports via Intel® X710-AT2
1 RJ45 Dedicated IPMI LAN port
USB:
3 USB 3.0 ports (2 rear + 1 Type A)
VGA:
1 VGA port
SAS:
4 SAS3 ports support via optional SAS kit
NVMe:
4 NVMe support via optional drive tray
Others:
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header
Cooling
Fans:
8 heavy-duty PWM fans with optimal fan speed control
Air Shroud:
2 Air Shroud
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
Note:
Support for operating 35°C is available in certain system configurations. Contact your our sales rep or Technical Support for more details.
Details
CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator
FAN:
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I²C Temperature Sensing Logic
LED:
CPU / System Overheat LED
Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
1024US-TRT1024US-TRT1024US-TRT1024US-TRT1024US-TRT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz
AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz
AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz
AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz
AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz
AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz
AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz
AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz
Added
MEMORY
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
Samsung 32GB DDR4 3200 ECC RDIMM Memory
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
