SBE-414J
$10,000.00 Configured Summary
SBE-414J

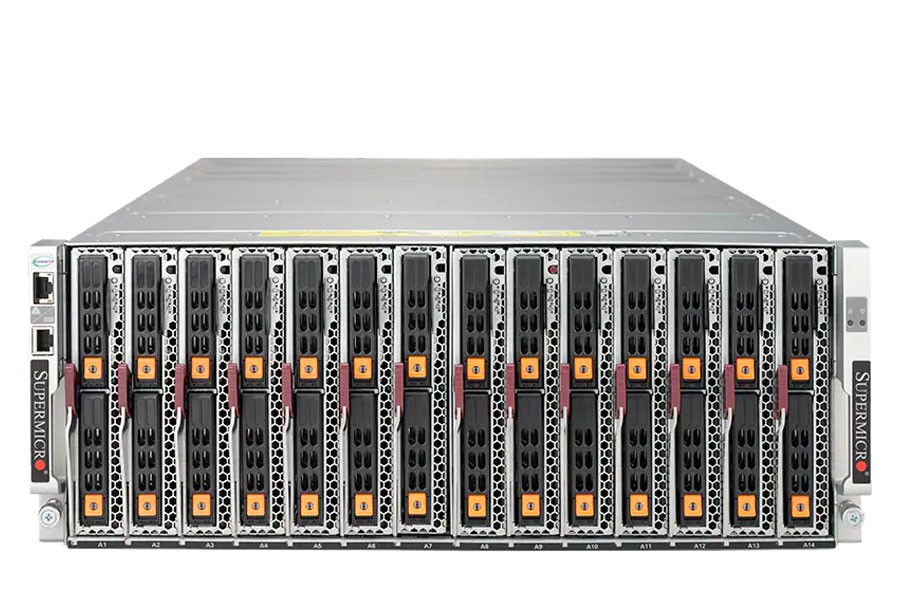

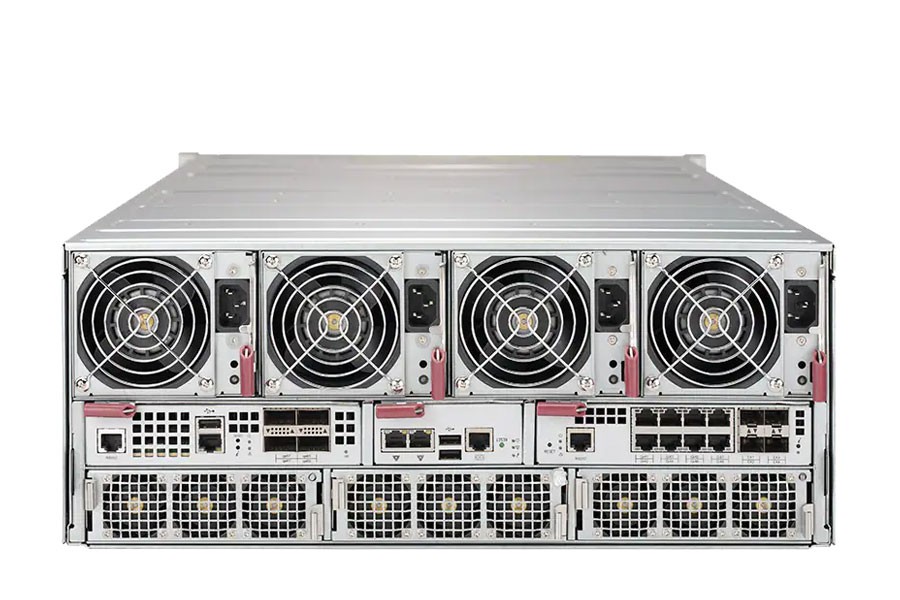

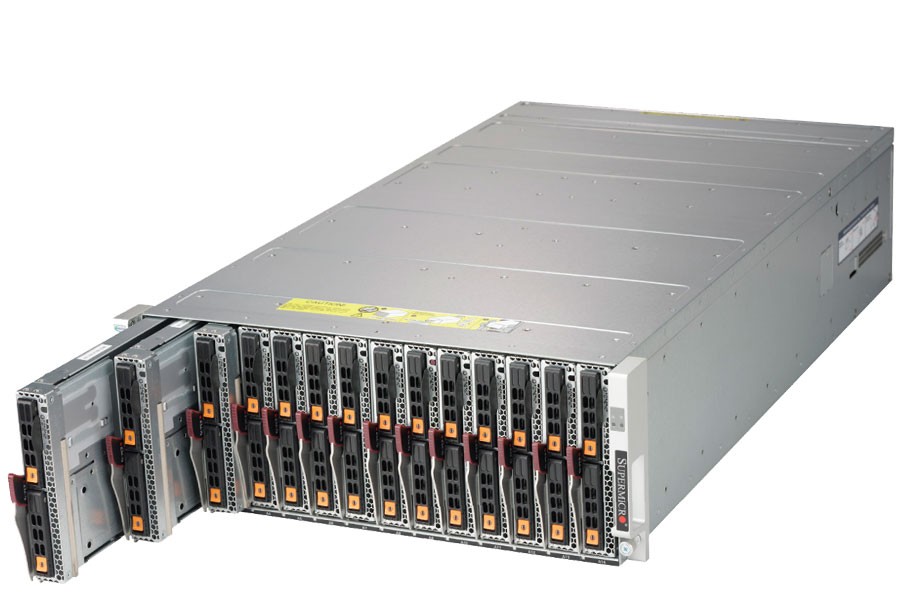

Supermicro Superblade​ up to 14 Hot-Plug Processor Blade Server Enclosure
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SBE-414J
Details
Processor Blade:
Up to 14x 2-socket blade servers

LED:
Power LED, Fault LED

Networking:
Ethernet Switch – Up to 2x modules
For compatibility, see the Blade Matrix or contact your Supermicro representative
Switch Modules must be purchased separately

Management Module:
1 CMM for remote system management with software
Management Module must be purchased separately

Power Supplies:
Up to 4 hot-plug 2200W Titanium power supplies

Cooling Design:
Up to 4 cooling fans in PWS modules
Includes 3x PWS-DF007-3F system fans Module

Dimensions (HxWxD):
7" x 17.6" x 32"

Available Models:
SBE-414J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies
SBE-414JSBE-414JSBE-414J
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Blade Quantity Range : 14 Qty error!
*Please contact our sales for more blade options
- $0.00
SBI-420P-4T2N
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
