SBI-420P-4T2N
Please Inquire Configured Summary
SBI-420P-4T2N

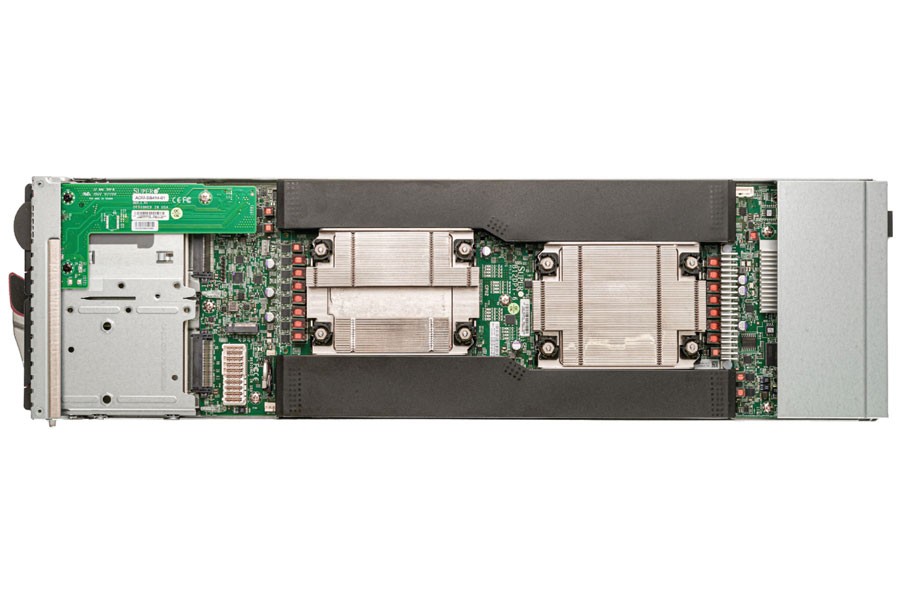

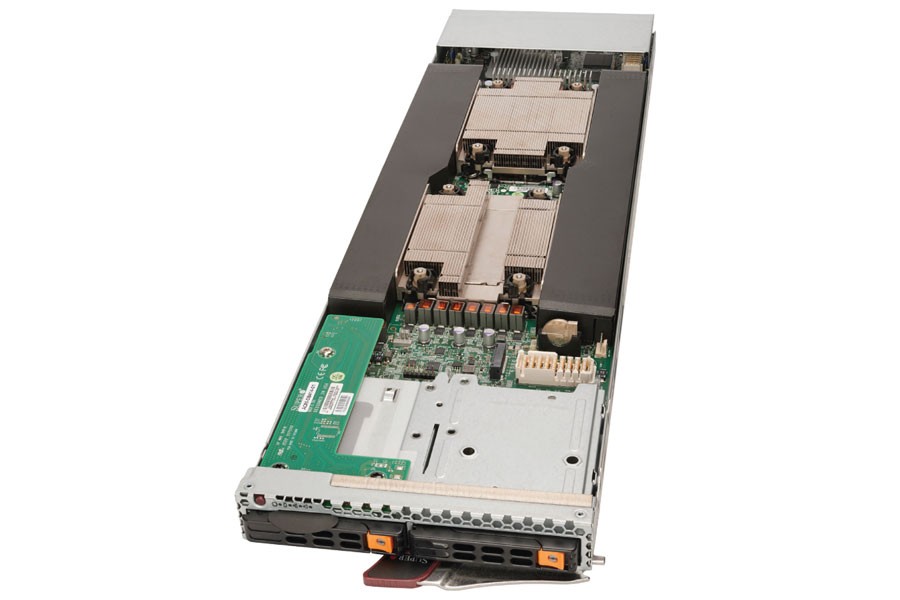

Supermicro 2 Bays Dual Sockets Single Blade Server

  • 280 CPUs per 42U Rack

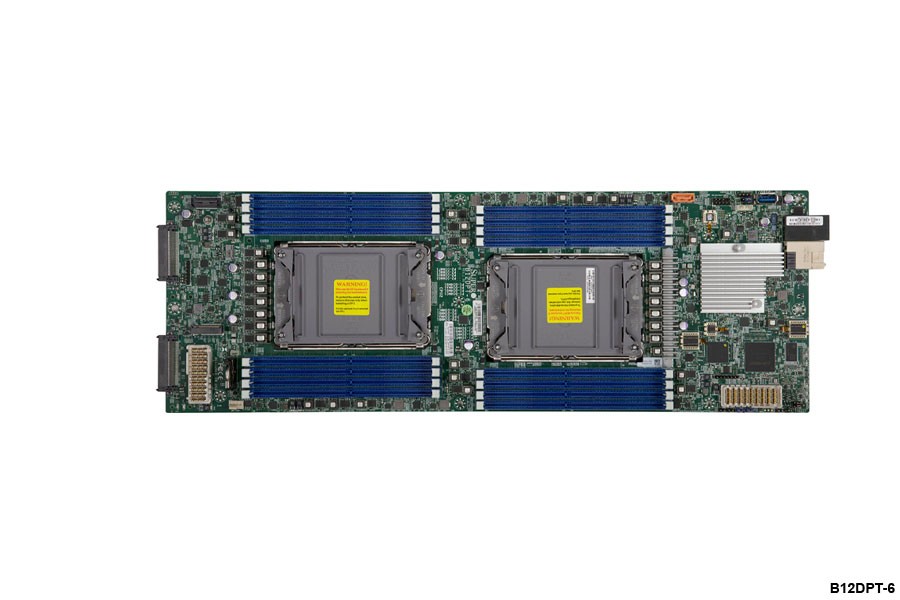

  • Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A chipset
  • 16 DIMMs; up to 512GB ECC VLP DDR4-3200MHz RDIMM
  • 2 Hot-plug 2.5" NVMe/SATA3 drive bays; 1 NVMe M.2
  • Dual 25G onboard Ethernet
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2600
  • Cooling: Passive CPU heatsink CPU1: SNK-P1045V CPU2: SNK-P1045VM
  • Data center, High-performance Computing (HPC)

Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SBI-420P-4T2N
Processor
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable Processors,
3 UPI up to 11.2 GT/s
TDP up to 165W
Memory
Memory Capacity:
16 DIMM slots
Up to 512GB VLP ECC DDR4 RDIMM

Memory Type:
3200/2933/2666MHz ECC VLP DDR4 RDIMM
Chassis
Single Blade Server
Dimensions
Height:
6.5"
Width:
1.2"
Depth:
23.5"
Front Panel
Buttons:
Power On/Off button

LEDs:
Power LED
UID / KVM LED
Network Activity LED
Fault LED
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Onboard Devices
Chipset:
Intel® C621A chipset

Network Controllers:
Dual 25G Ethernet

IPMI:
Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

Graphics:
Aspeed AST2600
HDD Drive Bays
Hot-swap:
2 Hot-Plug 2.5" NVMe/SATA3 drive bays

M.2:
1 NVMe M.2
Input Output
TPM:
1 TPM Header
Cooling
Heatsink:
Passive CPU heatsink CPU1: SNK-P1045V CPU2: SNK-P1045VM
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
SBI-420P-4T2NSBI-420P-4T2NSBI-420P-4T2N
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Added
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
MEMORY
Enterprise-Class HDD/SSD
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Added
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
