SBE-610J2
Please Inquire Configured Summary
SBE-610J2

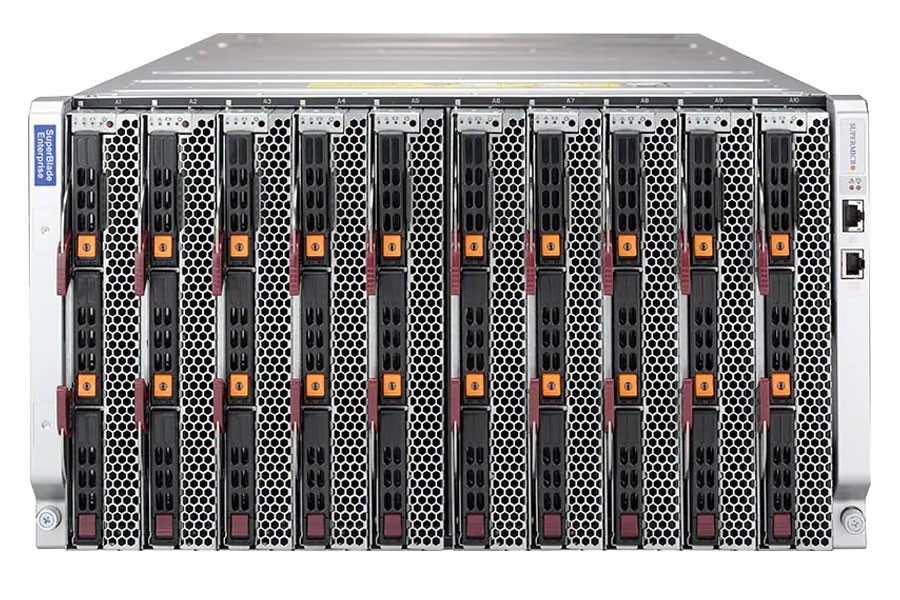

Supermicro Superblade​ 4U up to 10 Hot-Plug Processor Blade Server Enclosure

Available Models:
SBE-610J2-430 - Up to 4 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-610J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-610J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies
SBE-610J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
SBE-610J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SBE-610J2
Details
Processor Blade:
Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers

LED:
Power LED, Fault LED

Networking:
Ethernet Switch – Up to 4x modules
For compatibility, see the Blade Matrix or contact your Supermicro representative
Switch Modules must be purchased separately

Management Module:
2 CMMs for remote system management with software
Management Module(s) must be purchased separately

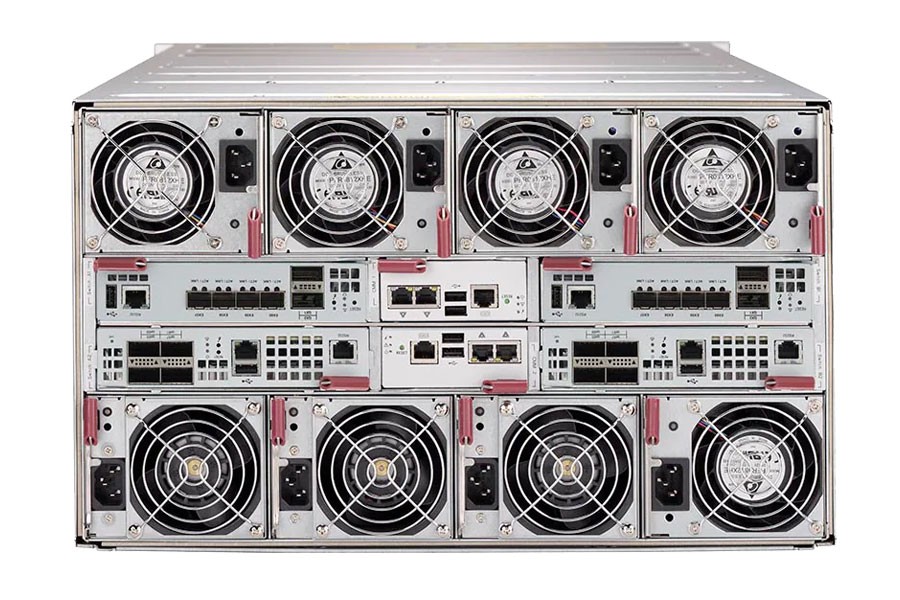

Power Supplies:
Up to 8 hot-plug 2200/3000W Titanium power supplies

Cooling Design:
Up to 8 cooling fans in PWS modules

Dimensions (HxWxD):
10.5" x 17.6" x 32"

Available Models:
SBE-610J2-430 - Up to 4 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-610J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-610J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies
SBE-610J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
SBE-610J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies
SBE-610J2SBE-610J2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Blade Quantity Range : 10 Qty error!
*Please contact our sales for more blade options
