SBI-420P-1C2N
Please Inquire Configured Summary
SBI-420P-1C2N

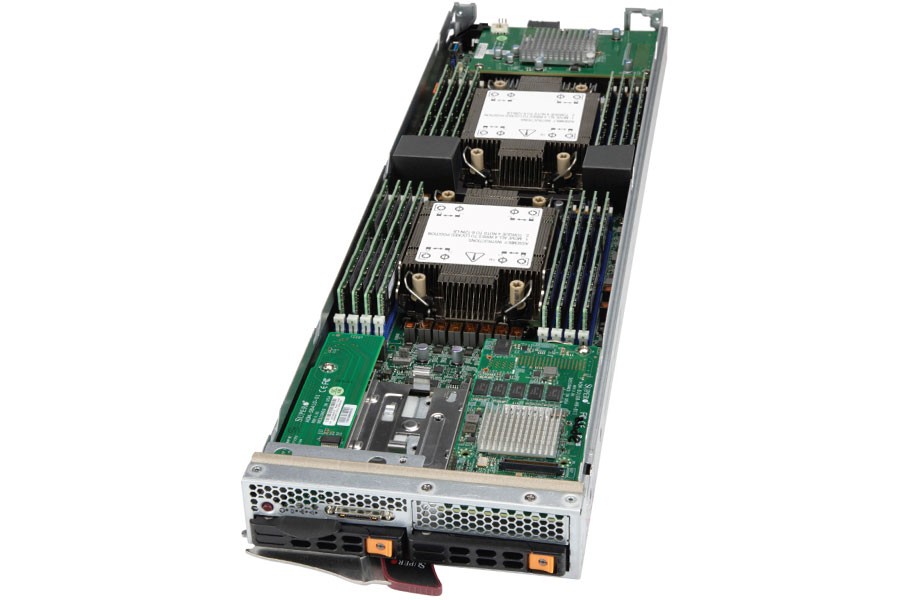

Supermicro 2 Bays Dual Sockets Single Blade Server

  • 200 CPUs per 42U Rack
  • Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A chipset
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 1 NVMe M.2
  • Dual 25G onboard Ethernet
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2600
  • Cooling: Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V
  • Data center, High-performance Computing (HPC)

Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SBI-420P-1C2N
Processor
CPU:
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable Processors,
3 UPI up to 11.2 GT/s
TDP up to 220W
Memory
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Supports Intel® Optane™ Persistent Memory

Memory Type:
3200/2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM
Chassis
Single Blade Server
Dimensions
Height:
6.5"
Width:
1.75"
Depth:
23.5"
Front Panel
Buttons:
Power On/Off button
KVM button

LEDs:
Power LED
UID / KVM LED
Network Activity LED
Fault LED

Connector:
SUV (Serial/USB/Video) & KVM Connector
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Onboard Devices
Chipset:
Intel® C621A chipset

SAS:
Broadcom 3108 SAS3 (12Gbps) controller;
   HW RAID 0, 1 support; 2G Cache
SAS3 mezz card

Network Controllers:
Onboard Dual 25G Ethernet
1 Mezzanine expansion slot and 3 different optional Mezzanine card.
Optional: Dual 25G Ethernet / 100G EDR / 200G HDR

IPMI:
Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

Graphics:
Aspeed AST2600
HDD Drive Bays
Hot-swap:
2 Hot-Plug 2.5" NVMe/SAS3/SATA3 drive bays

M.2:
1 NVMe M.2
Input Output
TPM:
1 TPM Header

KVM:
1 Front Connector for SMCI KVM Card
Cooling
Heatsink:
Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

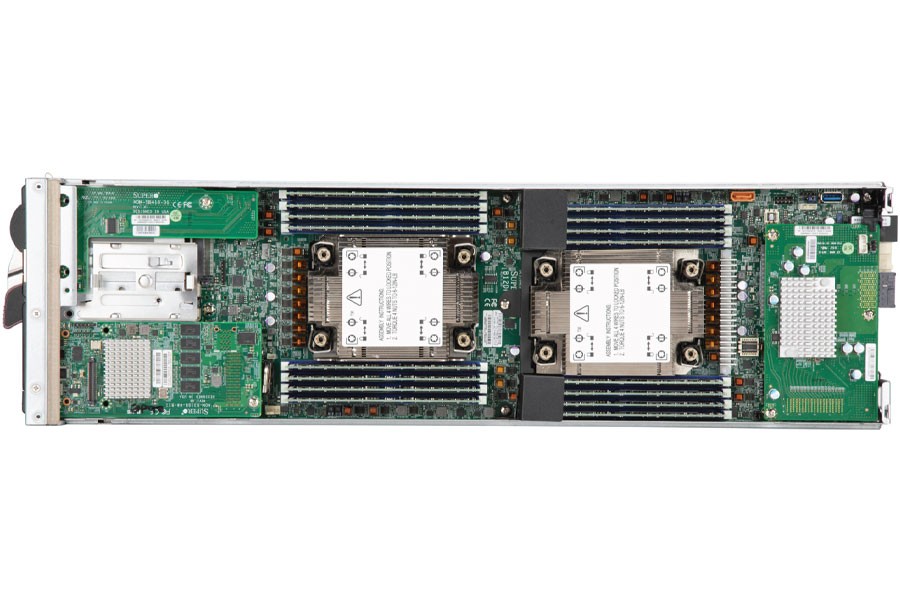

SBI-420P-1C2NSBI-420P-1C2N
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Added
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8351N (2.40 GHz 225W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)
MEMORY
Enterprise-Class HDD/SSD
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Added
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
