SBE-820L
Please Inquire Configured Summary
SBE-820L

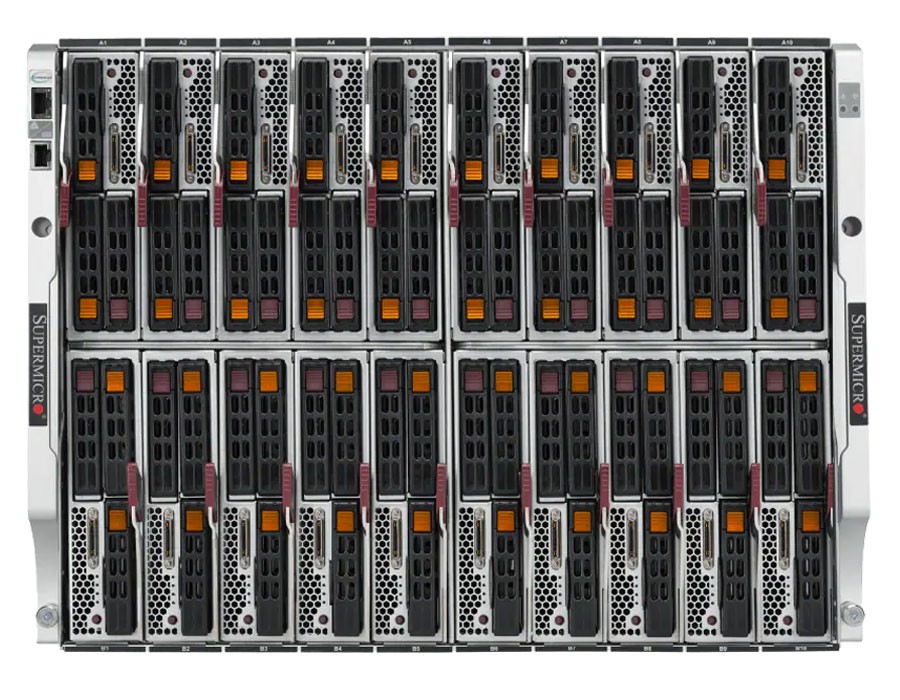

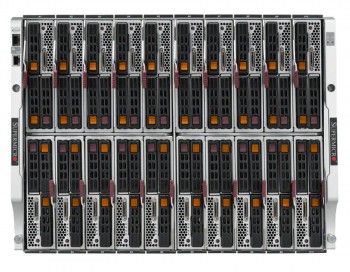

Supermicro Superblade up to 20 Hot-Plug Twin Processor Blade Enclosure

Available Models:
SBE-820L-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-820L-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-820L-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SBE-820L
Details
Processor Blade:
Up to 20 half-height 2-socket blade servers
Up to 10 full-height 4-socket blade servers
Mixed blade servers in a single enclosure

LED:
Power LED, Fault LED

Networking:
Ethernet Switch – Up to 2x modules
For compatibility, see the Blade Matrix or contact your Supermicro representative
Switch Modules must be purchased separately

Management Module:
1 CMM for remote system management with software
Management Module must be purchased separately

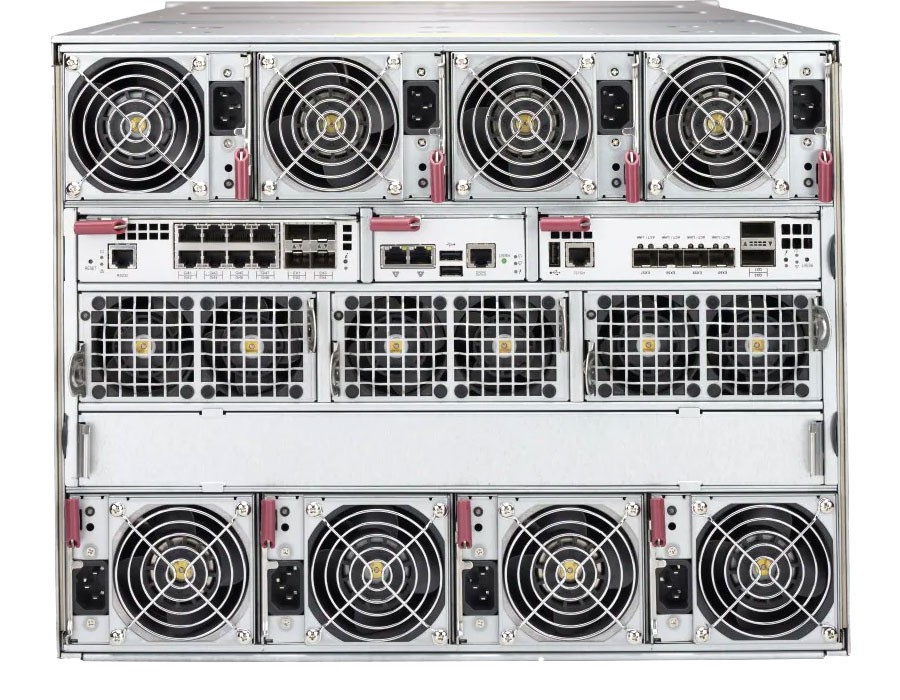

Power Supplies:
Up to 8 hot-plug 2200W Titanium power supplies

Cooling Design:
Up to 8 cooling fans in PWS modules
3 optional cooling fan modules (PWS-DF005-2F)

Dimensions (HxWxD):
14" x 17.6" x 32"

Available Models:
SBE-820L-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-820L-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-820L-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies
SBE-820LSBE-820L
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Blade Quantity Range : 20 Qty error!
SBI-411E-1G
SBI-420P-1C2N
SBI-420P-1T3N
SBI-421E-1T3N
