Supermicro 1U 12Bays Dual AMD Processor Rackmount Server

  • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  • Expansion slots: 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot)
  • Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License, key (SFT-OOB-LIC) included for OOB BIOS management
  • Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
  • Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
  • 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
  • Virtualization, Cloud Computing, High End Enterprise Server

Storage configuration notice:
External:
12x 2.5" Hot-swap U.2 Drive Bays

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 storage drive.

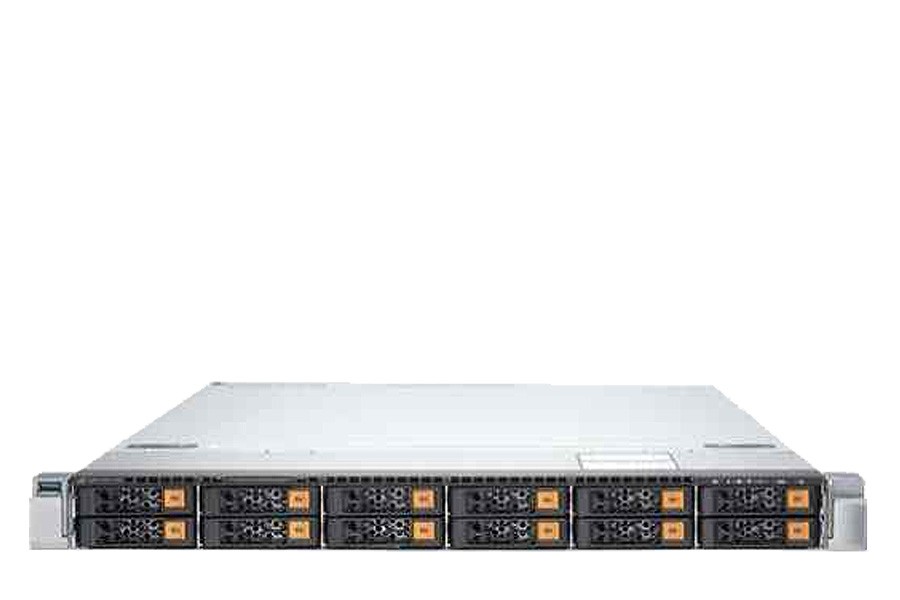

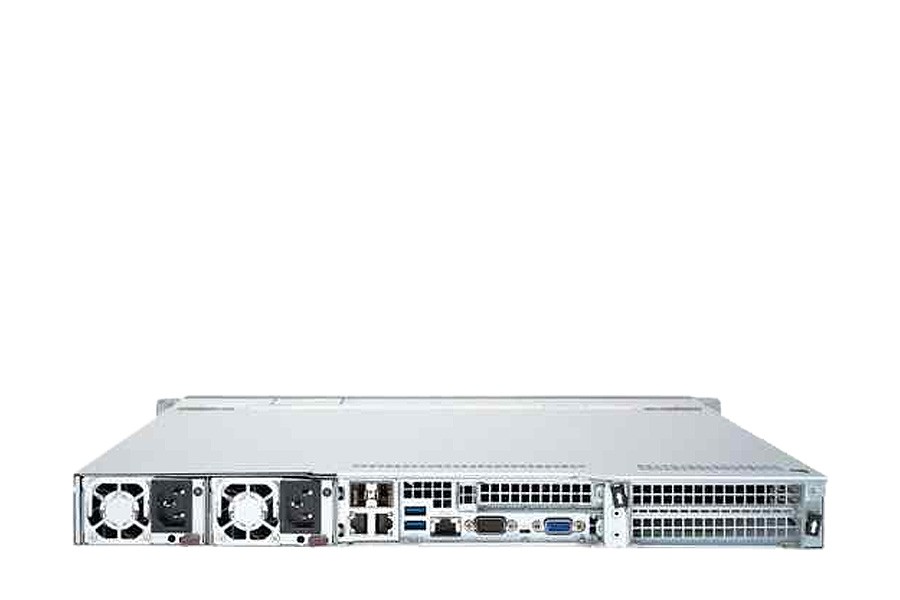

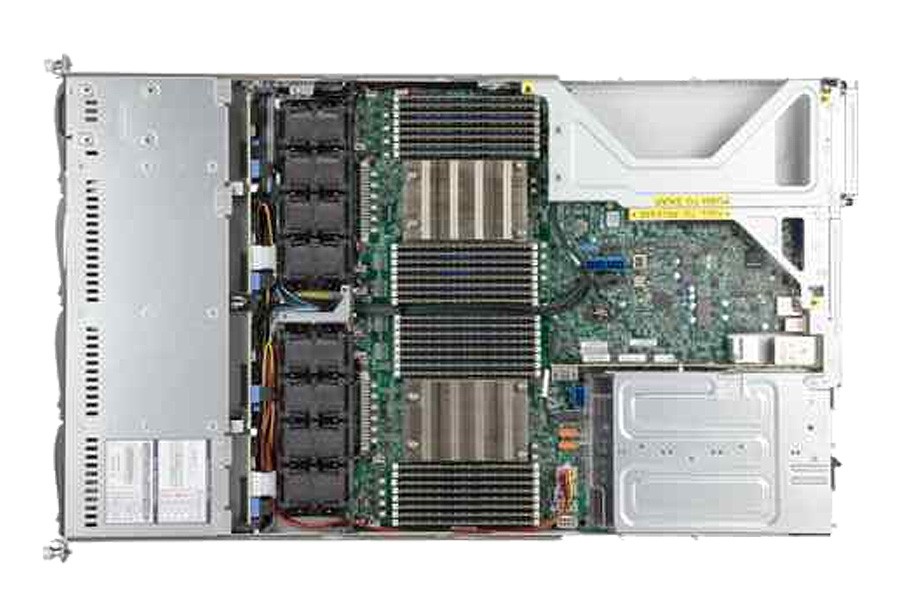

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-1124US-TNRP
Processor
CPU:
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Supports CPU TDP up to 280W

Cores:
Up to 64 Cores

Note:
Certain CPUs with high TDP may be supported only under specific conditions. Please contact Technical Support for additional information about specialized system optimization
Memory
Memory Capacity:
32 DIMM slots
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus

Memory Type:
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
29.1" (739mm)
Front Panel
Buttons:
Power On/Off button
System UID button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
UID LED
Bios
BIOS Type:
AMI 128Mb SPI Flash EEPROM
Onboard Devices
Chipset:
System on Chip (SoC)

SATA:
SATA3 (6Gbps)

Network Connectivity:
Networking options provided via Ultra Riser card

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
12 Hot-swap 2.5" U.2 NVMe drive bays

HDD Backplane:
Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3
Expansion Slots
2x PCI-E 4.0 x16 (FH/HL, 9.5"L)
1x PCI-E 4.0 x16 (LP)
1x PCI-E 4.0 x16 (internal proprietary LP slot)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Supply
1200W Redundant Power Supplies with PMBus
Total Output Power:
800W: 100 – 127Vac
1200W: 200 – 240Vac
1200W: 200 -240Vdc (for CCC only)
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7.5 - 6A / 50-60Hz
200-240Vdc / 7.5 - 6A (for CCC only)
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)
+12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level
Input Output
NVMe:
12 NVMe ports (default)

LAN:
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
1 RJ45 Dedicated IPMI LAN port

USB:
4 USB 3.0 ports
(2 rear + 1 Type A + 1 front)

VGA:
1 VGA port

SAS:
12 SAS3 ports support via optional SAS kit

SATA:
12 SATA3 ports support via optional kits

Others:
1 COM port (rear)
2 SATA DOM power connectors
TPM 2.0 header
Cooling
Fans:
8 Heavy duty fans with optimal fan speed control
Air Shroud:
1 Air Shroud
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
10°C ~ 30°C (50°F ~ 86°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
Details
PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
1124US-TNRP
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
