SYS-620C-TN12R
$5,481.00 Configured Summary
SYS-620C-TN12R
Supermicro 2U 12Bays Dual Processor Rackmount Server

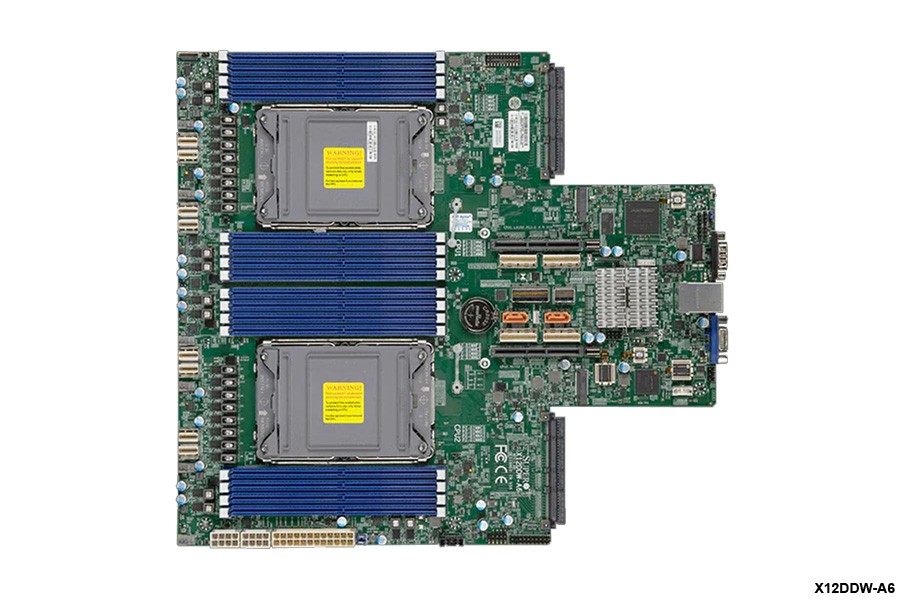

  • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
  • 4 PCIe 4.0 x8 FHHL (optional: combine into 2 PCIe 4.0 x16); 2 PCIe 4.0 x16 FHHL; 2 PCIe 3.0 x2 NVMe M.2
  • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

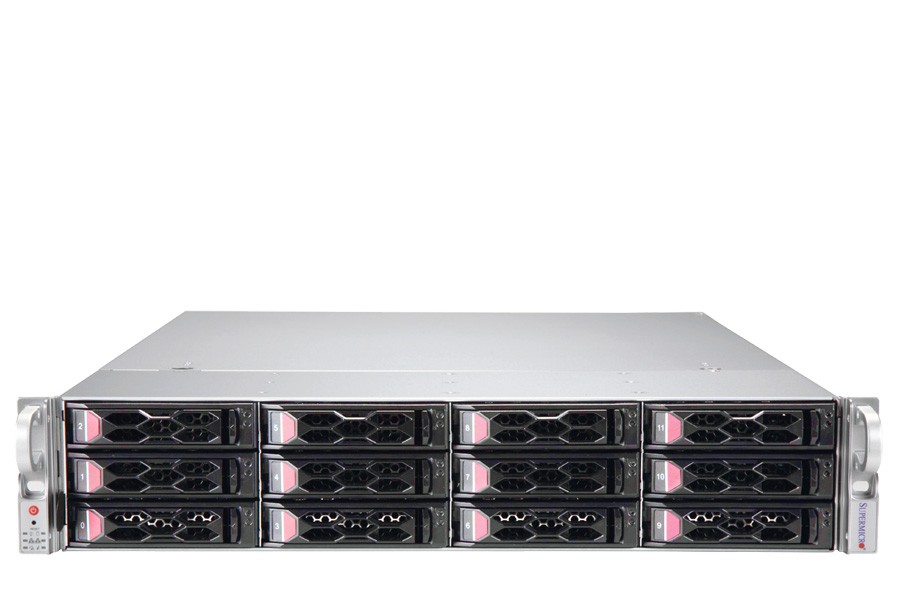

  • 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 3 heavy duty fans with optimal fan speed control, 1 air shroud
  • 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall Application, CDN, Edge Nodes

Storage configuration notice:
External:
12x 3.5" Hot-swap Drive Bays
2x M.2

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC and 1 Drive). Nic adapter requirement includes either 1 AIOM nerworking card or 1 standard PEIe NIC adapter.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-620C-TN12R
Processor
Processor
CPU:

Dual Socket P4 (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Core Count:
Up to 40C/80T; Up to 60MB Cache per CPU
Note:
Supports up to 270W TDP CPUs (Air Cooled)

GPU
Max GPU Count:

Up to 2 double-width or 6 single-width GPU(s)
Supported GPU:
Intel PCIe: Intel Data Center GPU Flex 170
NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
Memory
Memory:
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel® Optane™ persistent memory 200 series

Memory Voltage:
1.2V
Chassis

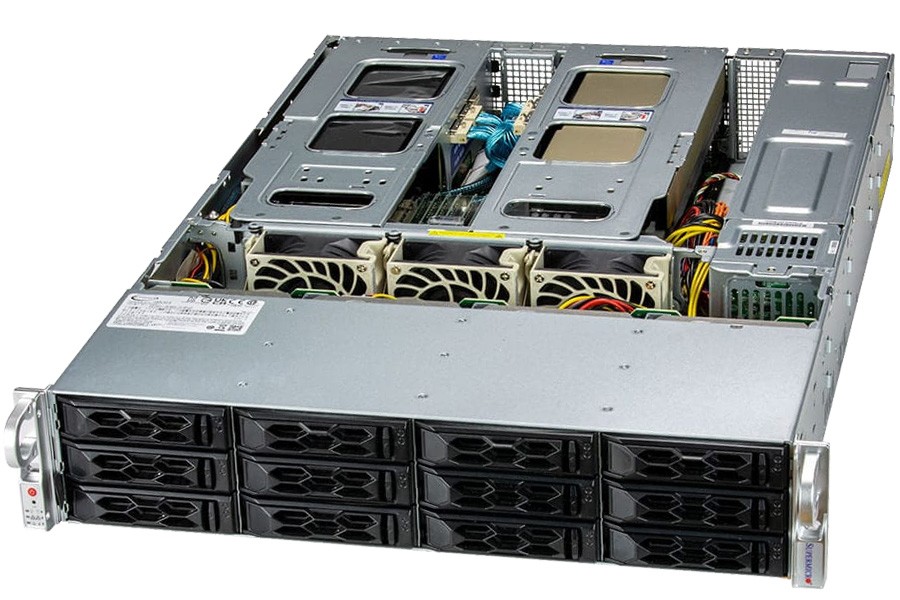

2U Rackmount Chassis
Dimensions
Height:
3.5" (89 mm)
Width:
17.2" (437 mm)
Depth:
25.5" (648 mm)
Front Panel
LED:
Drive activity
Network activity
Power status
Universal Information (UID)

Buttons:
Power On/Off
Universal Information (UID)
Bios
BIOS Type:
AMI 32MB SPI FLASH ROM
Onboard Devices
SATA:
SATA (6Gbps) ; RAID 0/1/5/10 support

NVMe:
NVMe; RAID 0/1/5/10 support(VROC HW key required)

Chipset:
Intel® C621A

Network Connectivity:
Via Slim-AIOM

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Drive Bays Configuration:
Default: Total 12 bay(s)
12 front hot-swap 3.5" NVMe/SAS/SATA drive bay(s)
Option A: Total 12 bay(s)
12 front hot-swap 2.5" NVMe*/SAS*/SATA drive bay(s)
(NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)


M.2:
2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280(default); VROC required for RAID)
Expansion Slots
Default:
4 PCIe 4.0 x8 (in x16) FHFL double-width slot(s)
2 PCIe 4.0 x16 FHHL slot(s)
2 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible)
Option A:
2 PCIe 4.0 x16 FHFL double-width slot(s)
2 PCIe 4.0 x16 FHHL slot(s)
2 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible)
Option B:
4 PCIe 4.0 x16 FHFL double-width slot(s)
2 PCIe 4.0 x16 FHHL slot(s)
2 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible)
Power Supply
1000W/1200W/1200WW Redundant Titanium Level Hot-plug power supplies
Dimension (WxHxL):
76 x 40 x 336 mm

+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)

5V SB:
Max: 4A / Min: 0A

AC Input:
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)

Output Type:
Backplanes (gold finger)

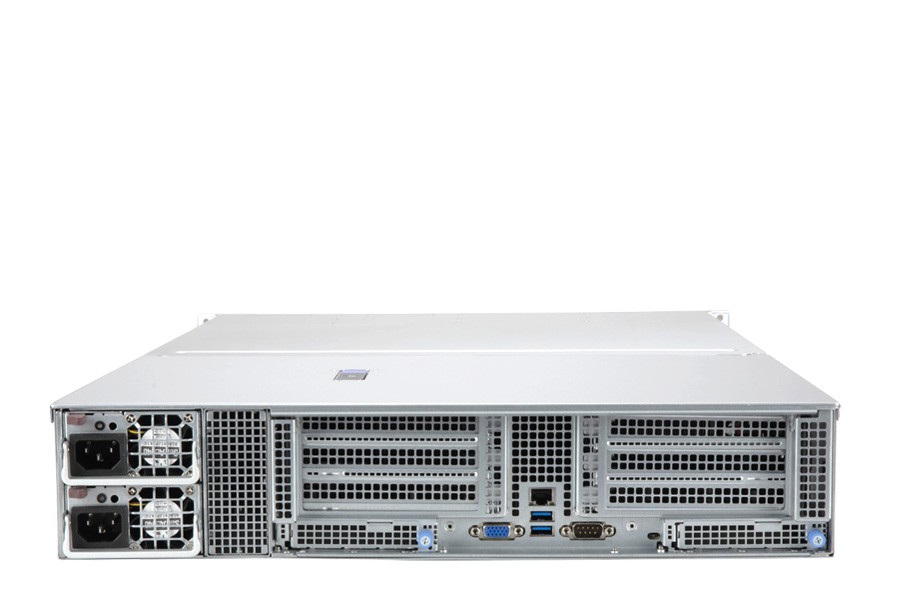

Input Output
LAN:
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB:
2 USB 3.0 port(s) (rear)
Video:
1 VGA port(s)
Serial:
1 COM port(s) (Rear)
DOM:
1 SuperDOM (Disk on Module) port(s)
TPM:
1 TPM header

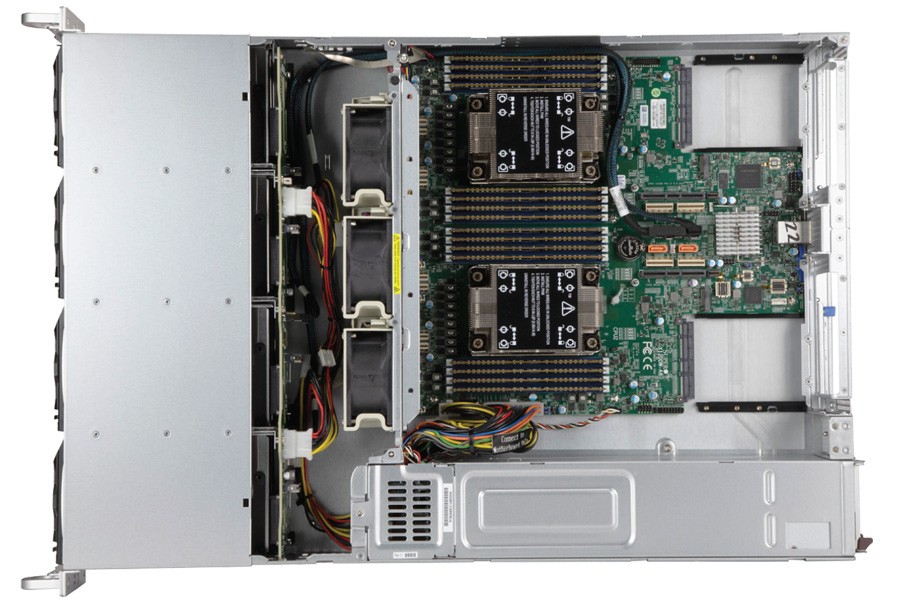

Cooling
Fans:
3x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
1 Air Shroud(s)
Operating Environment
ROHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Details
Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown


PC Health Monitoring
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
8 Phase-switching voltage regulator
SYS-620C-TN12RSYS-620C-TN12RSYS-620C-TN12RSYS-620C-TN12RSYS-620C-TN12R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
- $1,052.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
- $588.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
+ $150.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
- $130.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
Added
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
+ $776.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
+ $1,020.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
+ $1,722.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
+ $776.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
+ $1,476.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
+ $1,452.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
+ $1,866.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)
+ $2,292.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
+ $2,266.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
+ $2,590.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
+ $3,034.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
+ $2,492.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)
+ $3,990.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
+ $4,428.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
+ $4,302.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6342 (2.80 GHz 230W)
+ $3,790.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)
+ $3,240.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348 (2.60 GHz 235W)
+ $5,708.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
+ $4,740.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8351N (2.40 GHz 225W)
+ $4,986.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
+ $6,994.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
+ $7,432.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)
+ $6,000.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)
+ $6,000.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
+ $4,928.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)
+ $6,120.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)
+ $5,880.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358 (2.60 GHz 250W)
+ $7,200.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358P (2.60 GHz 240W)
+ $7,200.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360H (3.00 GHz 225W)
+ $7,800.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360HL (3.00 GHz 225W)
+ $15,008.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360Y (2.40 GHz 250W)
+ $9,006.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8362 (2.80 GHz 265W)
+ $10,796.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368 (2.40 GHz 270W)
+ $12,846.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368Q (2.60 GHz 270W)
+ $13,904.00
MEMORY
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $832.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $2,848.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
RAID CONTROLLER CARD
*Please contact our sales rep for special requirements
Added
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,226.00
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,421.00
GRAID SupremeRAID SR-1010 card
+ $4,680.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
- $145.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
- $118.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $122.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $48.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $30.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $448.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,038.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $100.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $136.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $187.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $221.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $260.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $234.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $271.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $317.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $395.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,423.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,735.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,904.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
+ $1,690.00
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
+ $3,010.00
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
+ $5,304.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $9,193.00
NVIDIA L40 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA L40S 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4460
1
2900.0000
