ASG-1115S-NE316R
Please Inquire Configured Summary
ASG-1115S-NE316R

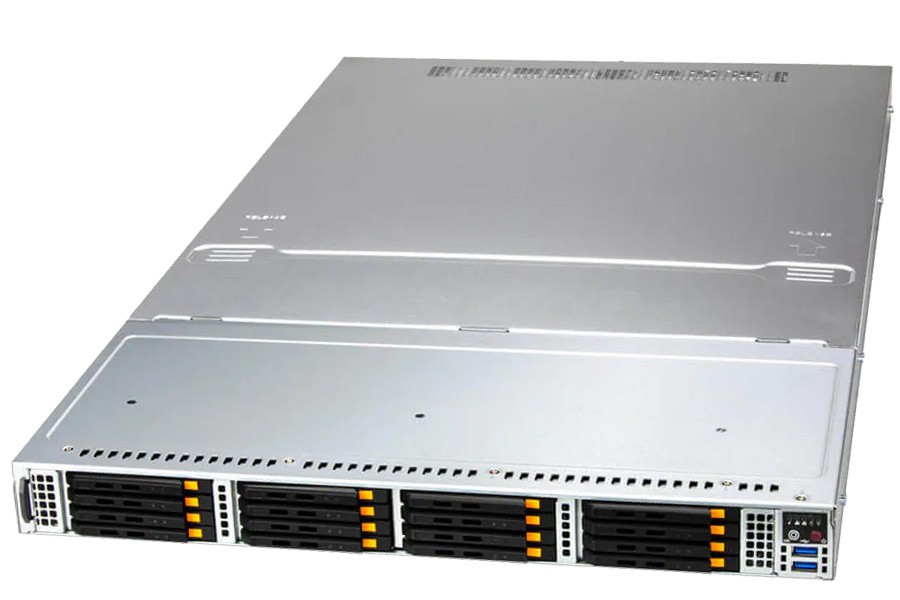

Supermicro 1U 16Bays Dual AMD Processor Rackmount Server

  • Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.
  • Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
  • Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)

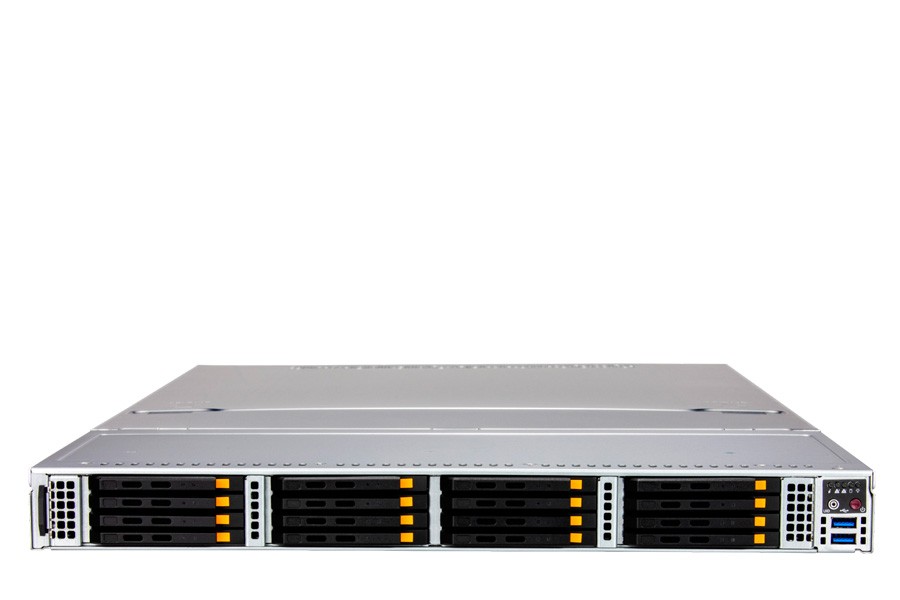

  • 16x hot-swap E3.S (7.5mm) NVMe drive bays
  • Redundant Titanium 1600W Power Supplies
  • Software-defined Storage, In-Memory Computing, Data Intensive HPC, Private & Hybrid Cloud, NVMe Over Fabrics Solution

Storage configuration notice:
16x E3.S NVMe drive

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPUs, 4 DIMMs, 4 E3.s Drives  and 1 M.2 Boot Drive and 1 Nic Card).

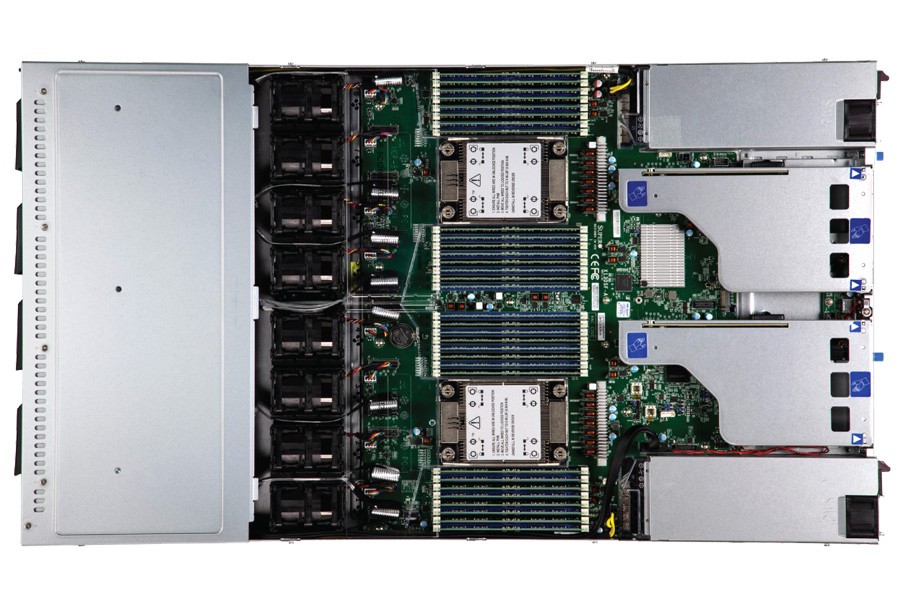

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU ASG-1115S-NE316R
Processor
CPU:
Single Socket SP5
AMD EPYC™ 9004 Series Processors

Core Count:
Up to 96C/192T

Note:
Supports 200W - 300W TDP CPUs (Air Cooled)
Memory
Memory:
Slot Count: 24 DIMM slots
Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM

Memory Voltage:
1.1V
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43.6 mm)
Width:
17.2" (438.4 mm)
Depth:
30.4" (773.25 mm)
Front Panel
LED:
Network activity
Power status
SSD activity
System information (overheat/UID)

Buttons:
Power On/Off
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM
Onboard Devices
Chipset:
AMD System on Chip

Network Connectivity:
Via AIOM

NVMe
HDD Drive Bays
Drive Bays Configuration:
Default: Total 16 bay(s)
16 front hot-swap E3.S 1T NVMe drive bay(s)

M.2:
2 M.2 NVMe slot(s) (M-key 2280/22110)
Expansion Slots
PCI-Express (PCIe) Configuration:
Default
2 PCIe 5.0 x16 FHHL slot(s)
2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

M.2:
2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)
Power Supply
1x 1600W Redundant Titanium Level power supply
Dimension (WxHxL):
73.5 x 40 x 203 mm

+12V:
Max: 133A / Min: 0A (200Vac-240Vac)

12V SB:
Max: 2.1A / Min: 0A

AC Input:
1600W: 200-240Vac / 50-60Hz

Output Type:
Backplanes (gold finger)

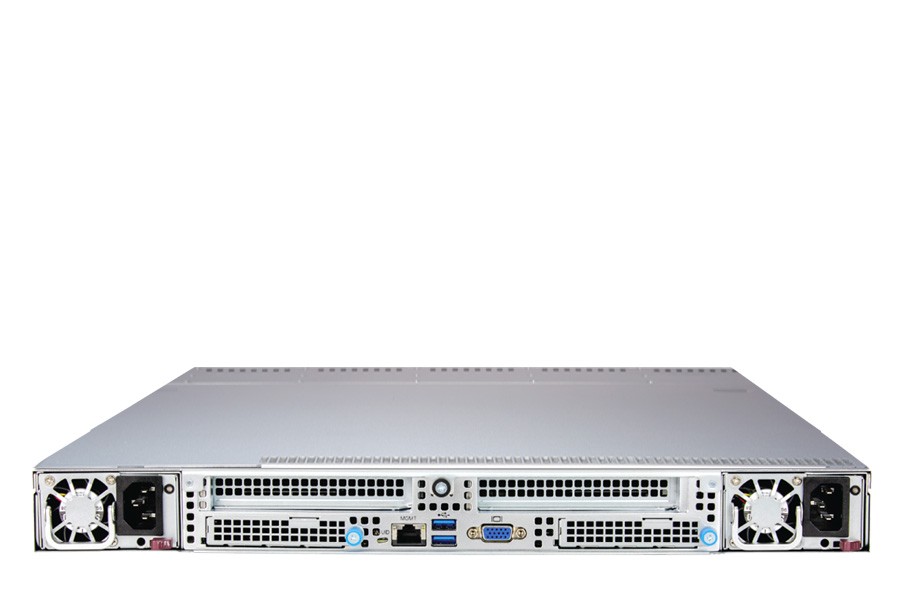

Input Output
LAN:
1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB:
2 USB 3.0 port(s) (rear)
2 USB 3.0 port(s) (front)

Video:
1 VGA port(s)
Cooling
8 Heavy Duty 4cm Fan(s)
Operating Environment
ROHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-condensing)
Non-operating Relative Humidity: 8% to 95% (Non-condensing)
ASG-1115S-NE316RASG-1115S-NE316RASG-1115S-NE316RASG-1115S-NE316RASG-1115S-NE316R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Enterprise-Class HDD/SSD
Samsung PM1743 NVME E3.S SSD 1.92TB
Added
Samsung PM1743 NVME E3.S SSD 3.84TB
Samsung PM1743 NVME E3.S SSD 7.68TB
Samsung PM1743 NVME E3.S SSD 15.36TB
NVMe M.2
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
