SSG-640SP-E1CR60
$14,157.00 Configured Summary
SSG-640SP-E1CR60

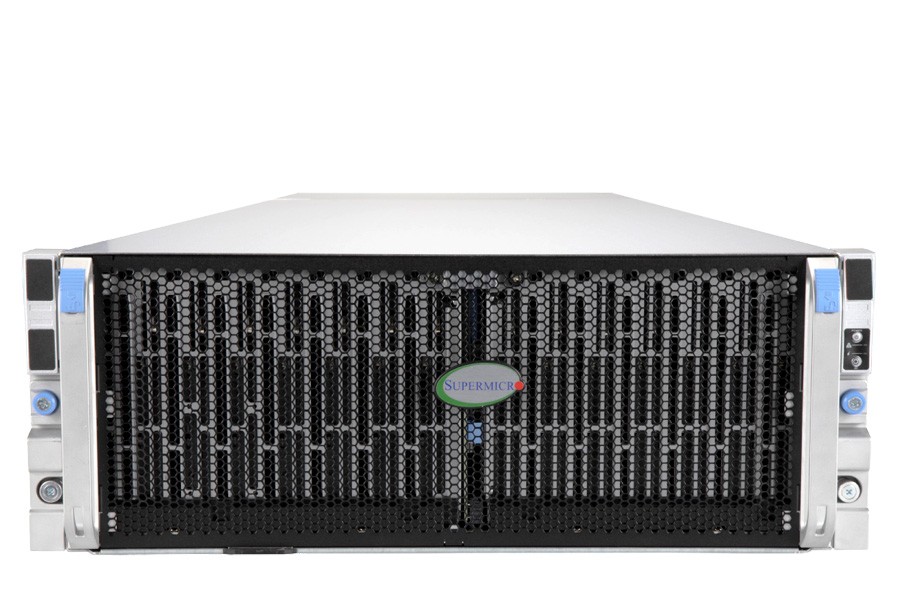

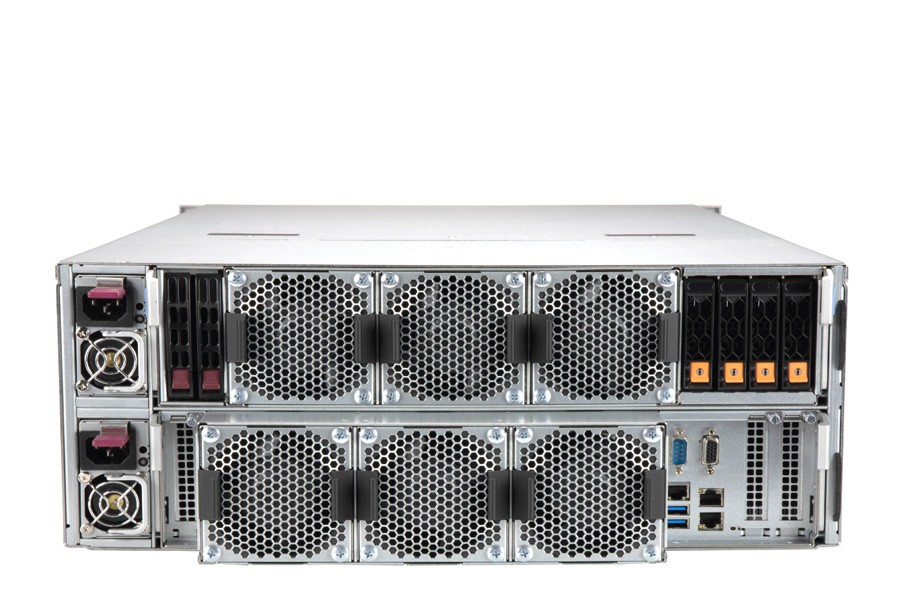

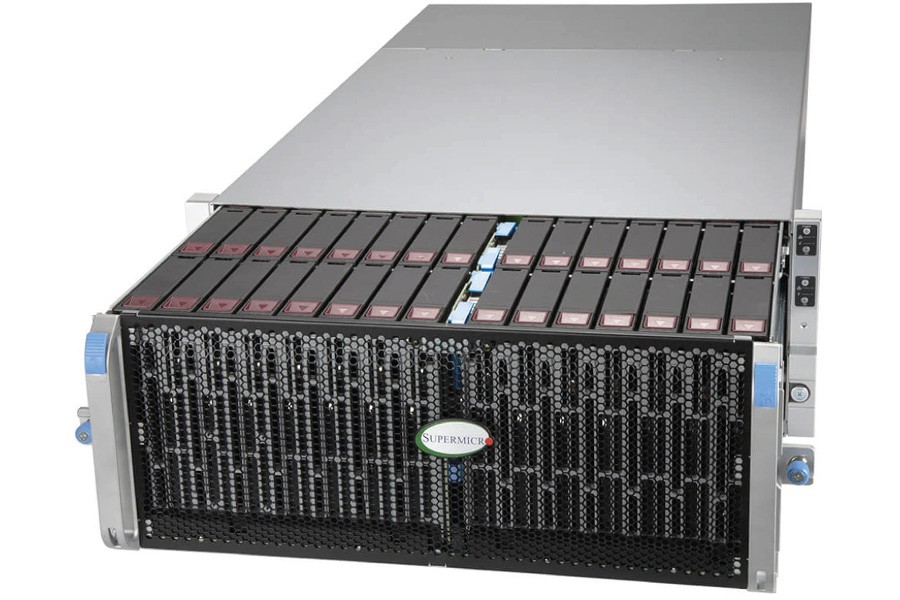

Supermicro 4U 60Bays Dual Processor Rackmount Server

  • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores
  • 16 ECC DDR4-3200: LRDIMM/RDIMM
  • 3 x PCIe 4.0 x16 HHHL PCIe slots
  • 60 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
  • 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
  • 2000W Redundant Power Supplies Titanium Level (96%)
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • Drive Controller support via Broadcom® 3916 or 3616
  • Big Data & Analytics, Data Lake, HPC and AI/ML Workloads, Telco & Cloud Service Providers, Financial Services & Healthcare Image Archives, Content Repositories, Government Data Protection

Storage configuration notice:
60x 3.5" HDD drive
2x rear 2.5" HDD Bays
4x rear U.2 Bays

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 15 Storage Device in Main/Toploading Bays).
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SSG-640SP-E1CR60
Processor
CPU:
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors

Core Count:
Up to 36C/72T; Up to 54MB Cache per CPU

Note:
Supports 120W - 205W TDP CPUs (Air Cooled)
Memory
Memory:
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage:
1.2V
Chassis
4U Rackmount Chassis
Dimensions
Height:
7"
Width:
17.6"
Depth:
34.1"
Bios
BIOS Type:
AMI 128MB SPI Flash EEPROM
Onboard Devices

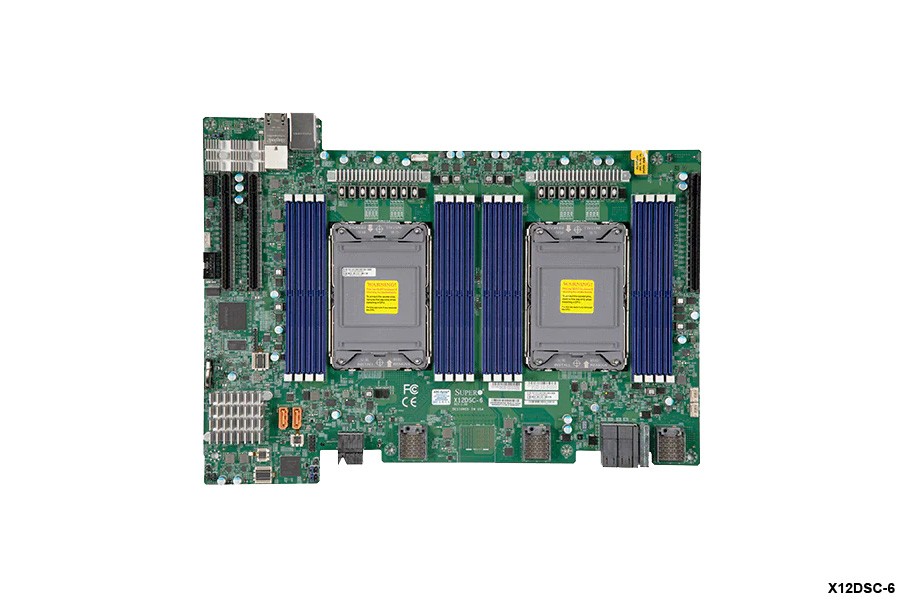

Chipset:
Intel® C621A

Network Connectivity:
2 RJ45 10GBASE-T

NVMe
HDD Drive Bays
Drive Bays Configuration:
Default: Total 66 bay(s)
2 rear hot-swap 2.5" SATA drive bay(s)
4 rear hot-swap 2.5" NVMe drive bay(s)

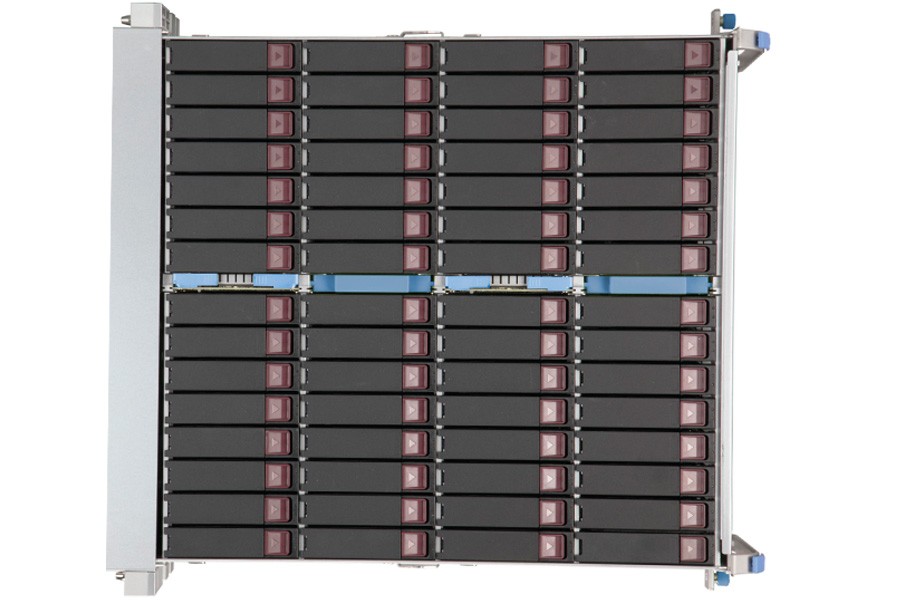

60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bay(s)
(NVMe support may require additional storage controller and/or cables)

M.2:
2 M.2 NVMe slot(s) (M-key)
Expansion Slots
PCI-Express (PCIe) Configuration:
Default
3 PCIe 4.0 x16 LP slot(s)
Power Supply
1x 2000W Redundant Titanium Level power supply
Dimension (WxHxL):
73.5 x 40 x 265 mm

+12V:
Max: 166.7A / Min: 0A (230Vac-240Vac)

12V SB:
Max: 2.1A / Min: 0A

AC Input:
2000W: 230-240Vac / 50-60Hz

Output Type:
Backplanes (gold finger)
Input Output
LAN:
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
2 RJ45 10 GBASE-T LAN port(s)

USB:
2 USB 3.0 port(s) (rear)

Video:
1 VGA port(s)

DOM:
2 SuperDOM (Disk on Module) port(s)
Cooling
6 Heavy Duty 8cm Fan(s)
Operating Environment
ROHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
SSG-640SP-E1CR60SSG-640SP-E1CR60SSG-640SP-E1CR60SSG-640SP-E1CR60SSG-640SP-E1CR60
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
- $922.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
- $458.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
+ $280.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
Added
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
+ $130.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
+ $906.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
+ $1,150.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
+ $1,852.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
+ $906.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
+ $1,606.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
+ $1,582.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
+ $1,996.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)
+ $2,422.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
+ $2,396.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
+ $2,720.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
+ $3,164.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
+ $2,622.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)
+ $4,120.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
+ $4,558.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
+ $4,432.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)
+ $3,370.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
+ $4,870.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
+ $7,124.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
+ $7,562.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)
+ $6,130.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)
+ $6,130.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
+ $5,058.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)
+ $6,250.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)
+ $6,010.00
MEMORY
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $832.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $2,848.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $645.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $1,275.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $1,800.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $2,340.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $2,595.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $3,300.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $3,480.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $4,605.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $5,220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $6,720.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $855.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $1,380.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $1,980.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $2,280.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $2,790.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $3,285.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $3,705.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $4,500.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $5,415.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $6,525.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $465.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $675.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $1,410.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $1,500.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $2,550.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $2,655.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $3,450.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $3,780.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $4,905.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $5,325.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $885.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $1,200.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $2,025.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $3,030.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $3,300.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $3,900.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $4,050.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $5,055.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $5,550.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
+ $402.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
+ $63.00
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
+ $93.00
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
+ $112.00
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
+ $186.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NVMe U.2/U.3
*No NVMe U.2 Drives
Added
Intel D7-P5520 NVMe U.2 SSD 3.84TB
+ $490.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $291.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $466.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $861.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,547.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,754.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $125.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $210.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $247.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $429.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $832.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,339.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $208.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $293.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $527.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $995.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $153.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $193.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $225.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $728.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,347.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $218.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $311.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $518.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $190.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $355.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $778.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $85.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $121.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $442.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,226.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4522
1
9900.0000
