Storages
  /   Storages   /
J2012-04-04X
$2,329.00 Configured Summary
J2012-04-04X

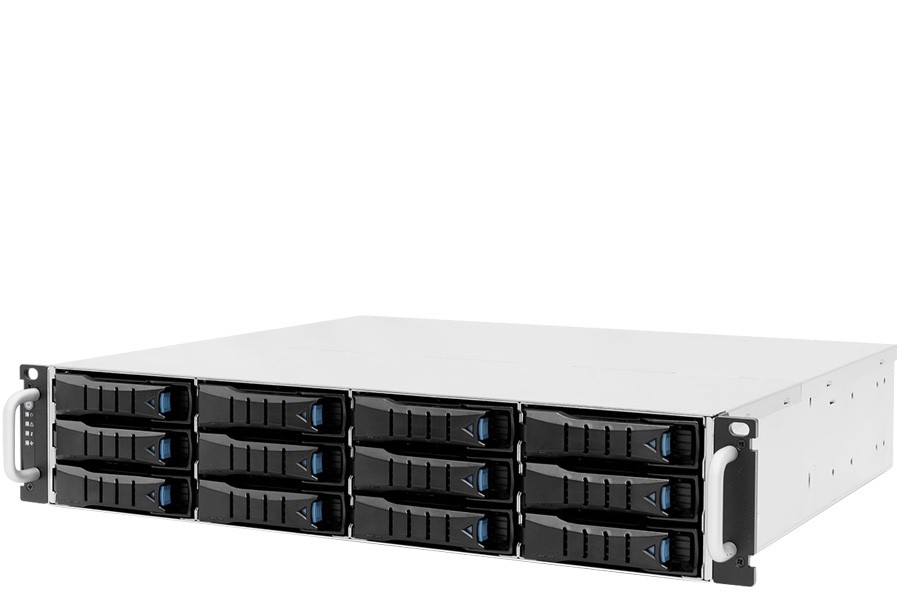

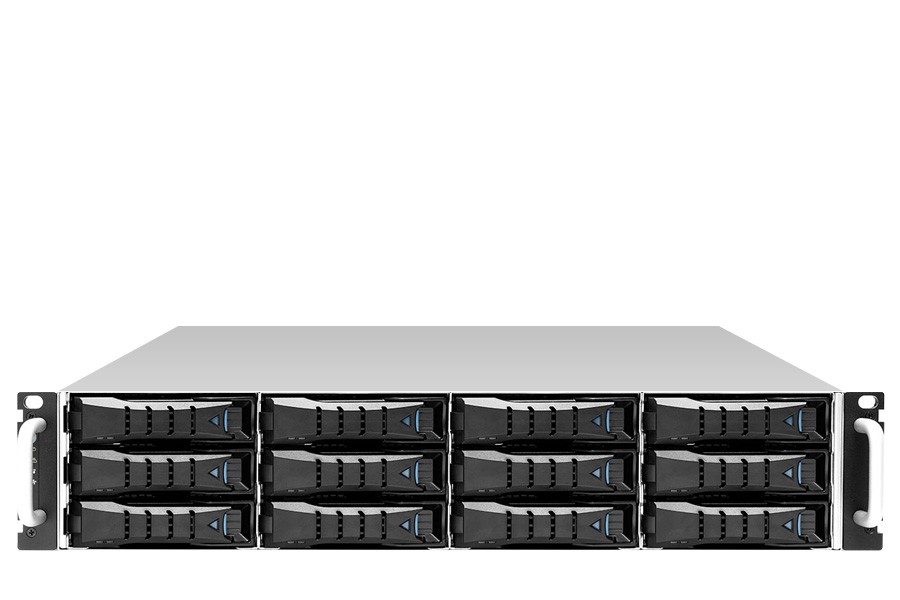

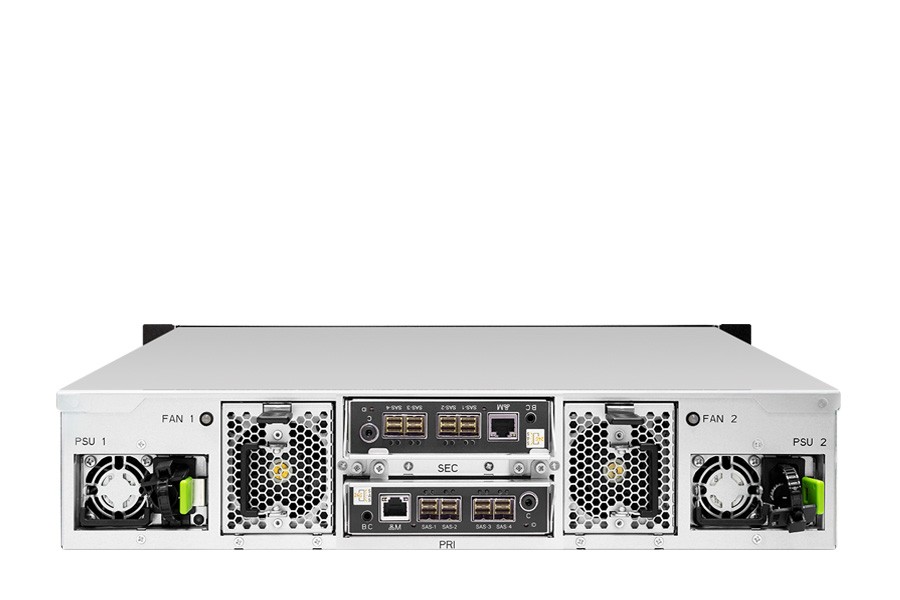

AIC 2U 12Bays Single SAS Expander JBOD

  • Ruggedized design (Internal board to board connection)
  • Short-depth
  • Tool-less design
  • Hot-swap expander modules, drives, PSU, fans
  • Clear front panel LED indicators
  • Optimized thermal solution
  • BMC onboard
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU J2012-04-04X
Details
General
Number of Expander:
Single
Dual(Optional)
Expander Chip:
LSI SAS4X40
Host/Expansion Interface :
4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface:
24Gb & 12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor:
3.5"

Administration / Management
Admin/Firmware Upgrade:
In-band & Serial port interface
IEM port
LED Indicators, Audible Alarm: Yes

Hot swap & Redundancy
Drive Bays:
12 x hot swap
Cooling:
2 x 60x56mm hot swap fans
Power Supply:
550W 1+1 hot swap redundant power supply 80+ Platinum
800W 1+1 hot swap redundant power supply 80+ Titanium(Optional)
Power Entry:
Dual AC Inlet
Expander Modules:
Dual expanders (Optional)

Electrical & Environment
Platinum:
100~127V~, 50/60Hz, 7.0A
200~240V~, 50/60Hz, 3.5A
Titanium:
100-127V~,50/60Hz,10A
200-240V~,50/60Hz, 5A
Operating Environment:
Temperature : 0ºC to 35ºC
Relative humidity : 20% to 80%
Non-operating Environment:
Storage temperature : -20° ~ 60°C
System relative humidity : 10% - 90%

Dimensions (W x D x H):
mm: 438 x 385.45 x 88.2
inches: 17.2 x 15.2 x 3.5
J2012-04-04XJ2012-04-04XJ2012-04-04X
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $30.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $70.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $112.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $201.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $301.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $501.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $691.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $801.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $922.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $1,062.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $40.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $122.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $221.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $321.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $521.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $721.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $821.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $1,092.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $1,192.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
- $38.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
- $24.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $25.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $101.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $108.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $161.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $183.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $258.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $922.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
- $51.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
- $10.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $11.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $66.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $133.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $151.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $191.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $201.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $268.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $1,092.00
Server Optional Parts
SFF-8644-8644 2m/6ft DATA Cable
Added
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
