J4078-02-04X
$8,315.00 Configured Summary
J4078-02-04X
AIC 4U 78Bays Single SAS Expander JBOD

  • Intelligent Enclosure Management
  • Individual drive power management
  • Hot swap design for easy maintenance and management
  • Enclosure Cable Management Kit
  • Tool-less drive trays
  • Designed for 1000mm depth rackmount server cabinet

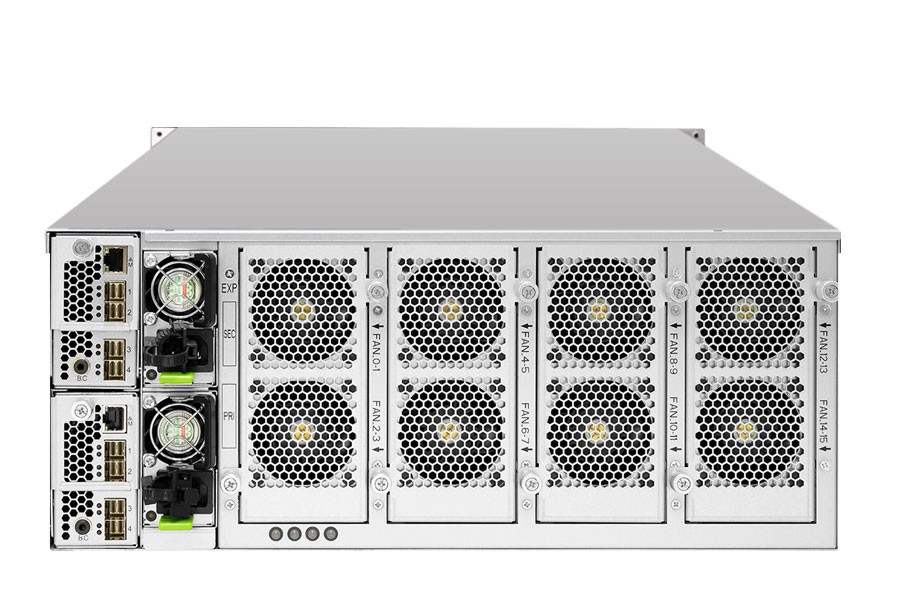

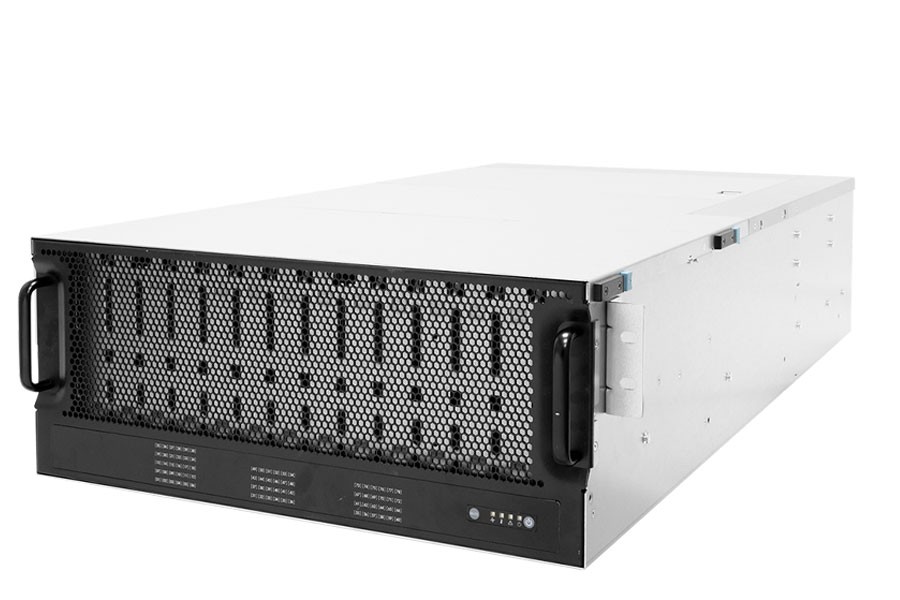

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU J4078-02-04X
Details
General
Number of Expander:
Single
Dual(Optional)
Expander Chip:
Hub:
SAS4x48
Edge:
SAS35x40 & SAS35x36/SAS4x40 & SAS4x32
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface :
24Gb & 12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor: 3.5” / 2.5” (with optional kit)

Administration / Management
Admin/Firmware Upgrade:
In-band
IEM port
LED Indicators, Audible Alarm:
Yes

Hot swap & Redundancy
Drive Bays:
78
Cooling:
8 x 60x56mm hot swap fans
1 x 40x56mm fan per expander module
Power Supply:
1600W 1+1 hot swap redundant 80+ Platinum/Titanium
Power Entry:
Dual AC Inlet
Expander Modules: Dual SAS topology (Optional)

Electrical & Environment
AC Input:
Platinum:
200~240V,50/60Hz,12A (except China/Taiwan)
200-240V,50/60Hz,10A (for China/Taiwan)
Titanium:
100~127V~,50/60Hz,12A (except China/Taiwan)
200-240V~,50/60Hz,10A (for China/Taiwan)
Operating Environment:
Temperature: 0ºC to 35ºC
Relative humidity: 20% to 80%
Non-operating Environment:
Temperature: -20ºC to 60ºC
Relative humidity: 10% to 90%

Physical Specification
Dimensions (W x D x H):
mm:
434 x 810.5 x 176
434 x 974.7 x 176 (with CMA)
inches:
17 x 31.9 x 7
17 x 38.4 x 7 (with CMA)
J4078-02-04XJ4078-02-04XJ4078-02-04X

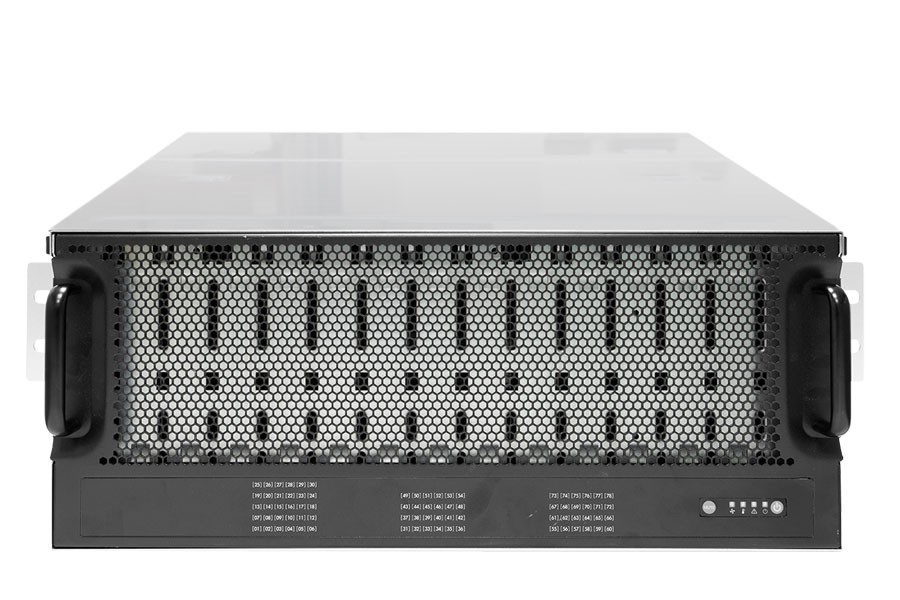

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $300.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $700.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $1,120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $2,010.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $3,010.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $5,010.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $6,910.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $8,010.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $9,220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $10,620.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $400.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $800.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $1,220.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $2,210.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $3,210.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $5,210.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $7,210.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $8,210.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $10,920.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $11,920.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
- $380.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
- $240.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $250.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $310.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $1,010.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $1,080.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $1,610.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $1,830.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $2,580.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $9,220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
- $510.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
- $100.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $110.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $660.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $1,330.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $1,510.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $1,910.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $2,010.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $2,680.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $10,920.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
