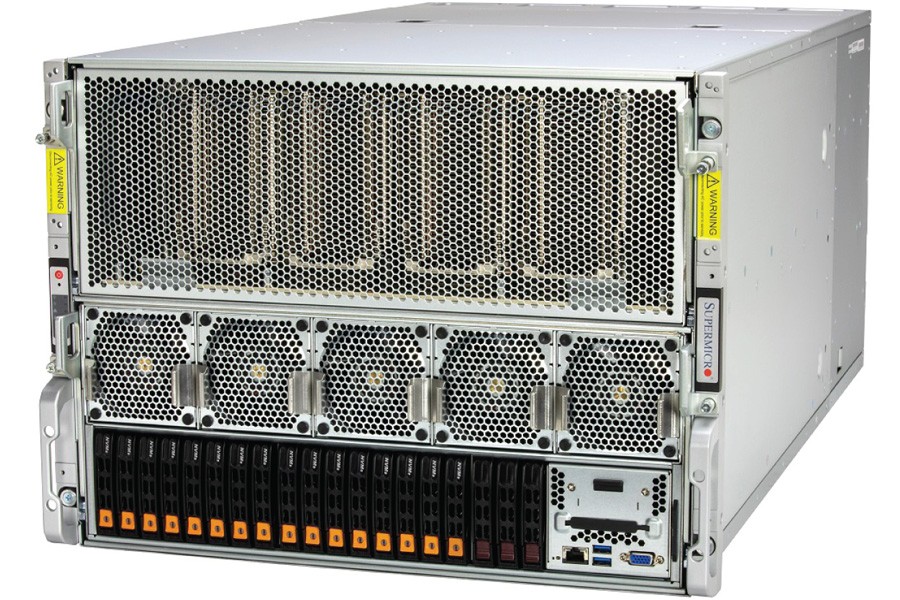

Supermicro 8U 15Bays Dual Processor Rackmount Server
Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 385W TDP CPUs (Liquid Cooled)
Default 10 heavy duty fans with optimal fan speed control
optional Liquid Cooling:
Direct to Chip (D2C) Cold Plate
Supports up to 385W TDP CPUs (Liquid Cooled)
Default 10 heavy duty fans with optimal fan speed control
optional Liquid Cooling:
Direct to Chip (D2C) Cold Plate
- 5th/4th Gen Intel® Xeon® Scalable processor support
- 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
- 8 PCIe Gen 5.0 X16 LP, 2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
- Flexible networking options
- 2 M.2 NVMe for boot drive only, 16x 2.5" Hot-swap NVMe drive bays (12x by default, 4x optional), 3x 2.5" Hot-swap SATA drive bays, Optional: 8x 2.5" Hot-swap SATA drive bays
- 10 heavy duty fans with optimal fan speed control
- Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level 6x 3000W (4+2) Redundant Power Supplies, Titanium Level
- High Performance Computing, AI/Deep Learning Training, Industrial Automation, Retail, Healthcare, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Climate and Weather Modeling, Finance & Economics
To maintain quality and integrity, this product is sold only as a completely-assembled system
System (SKU) SYS-821GE-TNHR
Processor Spec 2x Intel® Xeon® EMR 8568Y+ 2P 48C 2.3G 350W

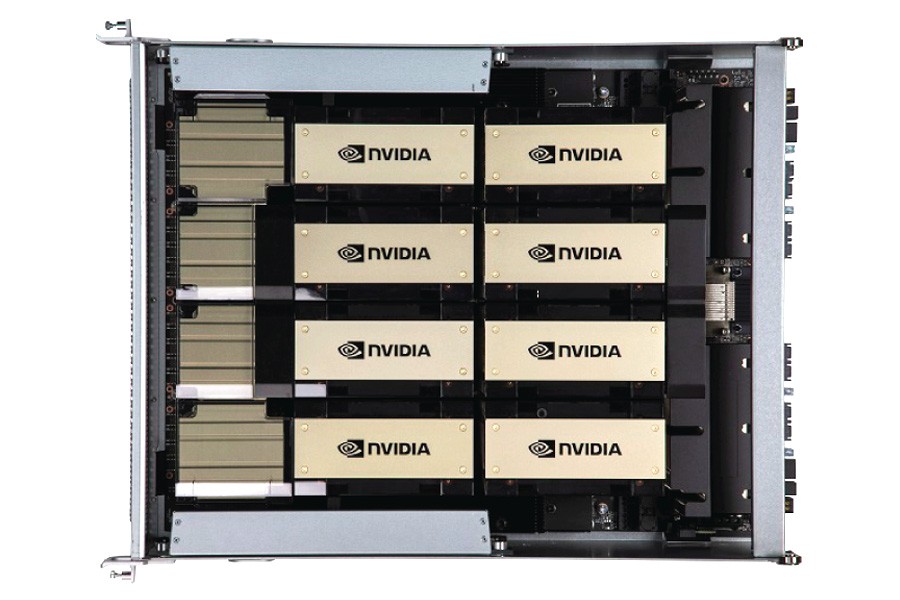

GPU 8x NVIDIA H200 141GB SXM5
Memory 3 TB (32x 96 GB DDR5)
Storage 30.4 TB raw capacity (8x 3.8 TB NVMe SSDs)
Boot Drives 2x 480 GB M.2 SSD
Networking 10x 400G HDR IB CX7 NICs
Or 8x 400Gb IB and 2x 400Gb/200Gb ethernet
Processor Spec 2x Intel® Xeon® EMR 8568Y+ 2P 48C 2.3G 350W
GPU 8x NVIDIA H200 141GB SXM5
Memory 3 TB (32x 96 GB DDR5)
Storage 30.4 TB raw capacity (8x 3.8 TB NVMe SSDs)
Boot Drives 2x 480 GB M.2 SSD
Networking 10x 400G HDR IB CX7 NICs
Or 8x 400Gb IB and 2x 400Gb/200Gb ethernet

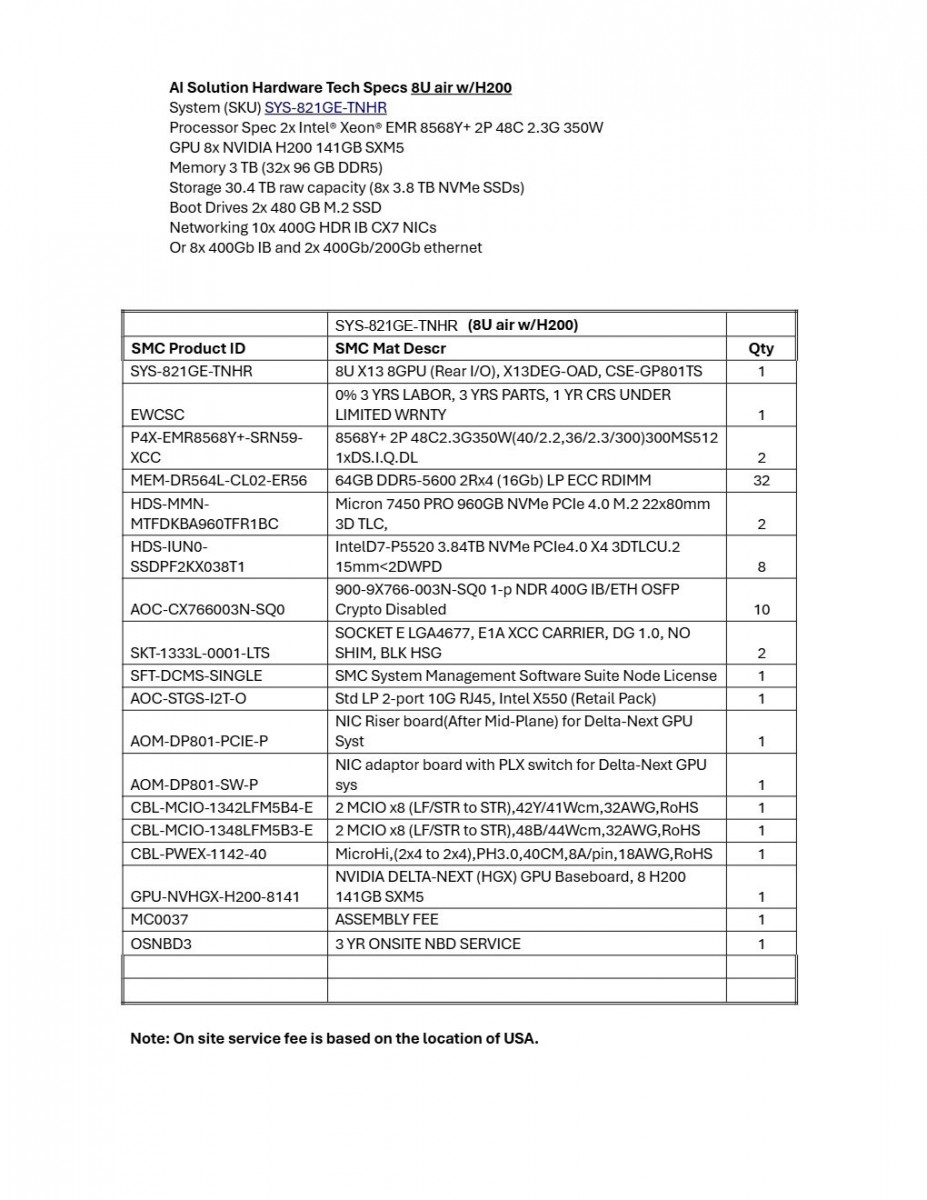

SYS-821GE-TNHR (8U air w/H200) | ||
SMC Product ID | SMC Mat Descr | Qty |

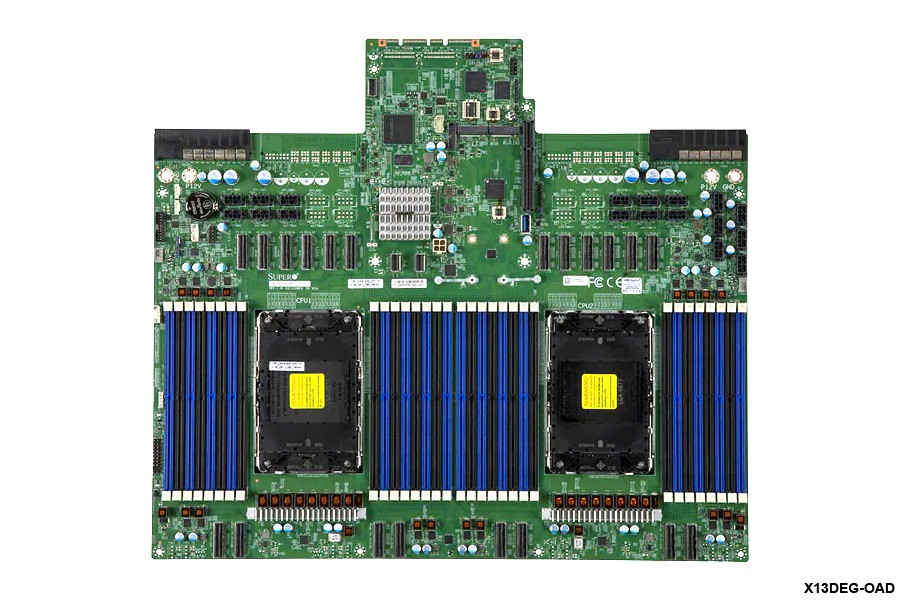

SYS-821GE-TNHR | 8U X13 8GPU (Rear I/O), X13DEG-OAD, CSE-GP801TS | 1 |
EWCSC | 0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY | 1 |
P4X-EMR8568Y+-SRN59-XCC | 8568Y+ 2P 48C2.3G350W(40/2.2,36/2.3/300)300MS512 1xDS.I.Q.DL | 2 |
MEM-DR564L-CL02-ER56 | 64GB DDR5-5600 2Rx4 (16Gb) LP ECC RDIMM | 32 |
HDS-MMN-MTFDKBA960TFR1BC | Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC, | 2 |
HDS-IUN0-SSDPF2KX038T1 | IntelD7-P5520 3.84TB NVMe PCIe4.0 X4 3DTLCU.2 15mm<2DWPD | 8 |
AOC-CX766003N-SQ0 | 900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled | 10 |
SKT-1333L-0001-LTS | SOCKET E LGA4677, E1A XCC CARRIER, DG 1.0, NO SHIM, BLK HSG | 2 |
SFT-DCMS-SINGLE | SMC System Management Software Suite Node License | 1 |
AOC-STGS-I2T-O | Std LP 2-port 10G RJ45, Intel X550 (Retail Pack) | 1 |
AOM-DP801-PCIE-P | NIC Riser board(After Mid-Plane) for Delta-Next GPU Syst | 1 |
AOM-DP801-SW-P | NIC adaptor board with PLX switch for Delta-Next GPU sys | 1 |
CBL-MCIO-1342LFM5B4-E | 2 MCIO x8 (LF/STR to STR),42Y/41Wcm,32AWG,RoHS | 1 |
CBL-MCIO-1348LFM5B3-E | 2 MCIO x8 (LF/STR to STR),48B/44Wcm,32AWG,RoHS | 1 |
CBL-PWEX-1142-40 | MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS | 1 |
GPU-NVHGX-H200-8141 | NVIDIA DELTA-NEXT (HGX) GPU Baseboard, 8 H200 141GB SXM5 | 1 |
MC0037 | ASSEMBLY FEE | 1 |
OSNBD3 | 3 YR ONSITE NBD SERVICE | 1 |
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU | SYS-821GE-TNHR |
Processor | CPU:

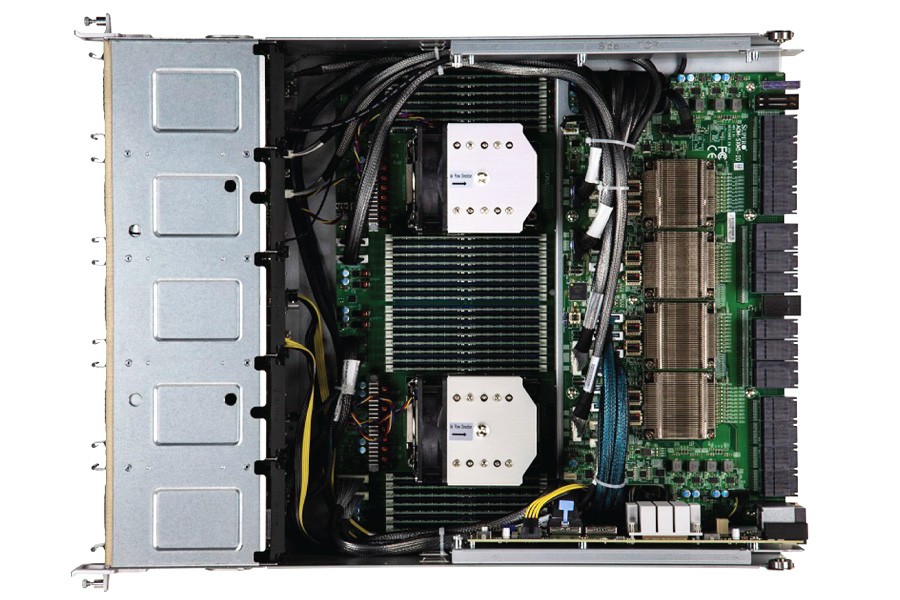

Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: Up to 64C/128T; Up to 320MB Cache per CPU Note: Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled) Max GPU Count: Up to 8 onboard GPU(s) Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ Certification: NVIDIA CERTIFIED |
Memory | Memory:
Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM Memory Voltage: 1.1V |
Chassis | 8U Rackmount Chassis
|
Dimensions | Height:
14" (355.6 mm) Width: 17.2" (437 mm) Depth: 33.2" (843.28 mm) |

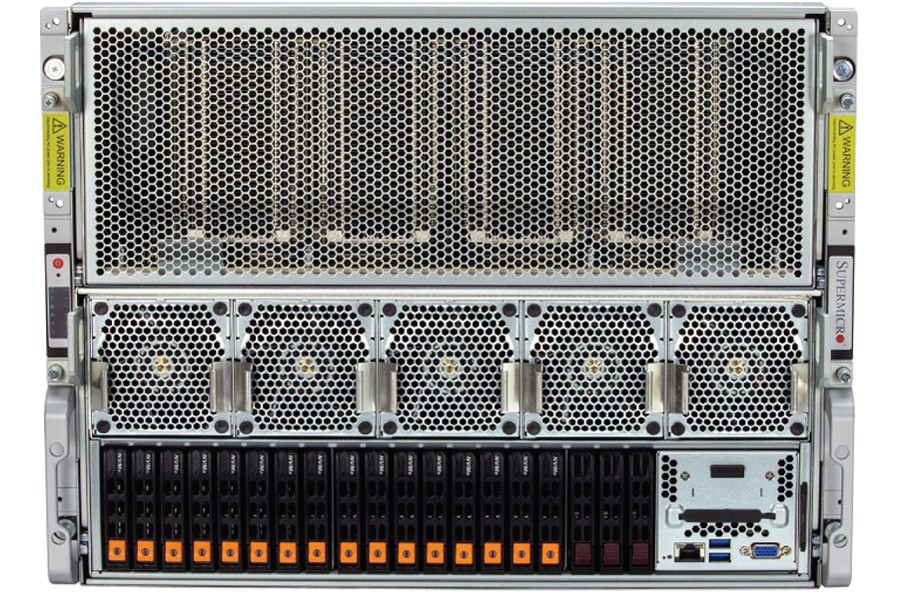

Front Panel | LED:
Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED Buttons: Power On/Off button System Reset button |
Bios | BIOS Type:
AMI 32MB SPI Flash EEPROM |
Onboard Devices | Chipset:
Intel® C741 Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) NVMe |
HDD Drive Bays | Drive Bays Configuration:
Default: Total 15 bay(s) 12 front hot-swap 2.5" NVMe drive bay(s) 3 front hot-swap 2.5" SATA drive bay(s) Option A: Total 19 bay(s) 12 front hot-swap 2.5" NVMe drive bay(s) 4 front hot-swap 2.5" NVMe drive bay(s) 3 front hot-swap 2.5" SATA drive bay(s) (NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slot(s) (M-key) |
Expansion Slots | PCI-Express (PCIe) Configuration:
Default 8 PCIe 5.0 x16 LP slot(s) 2 PCIe 5.0 x16 FHHL slot(s) |

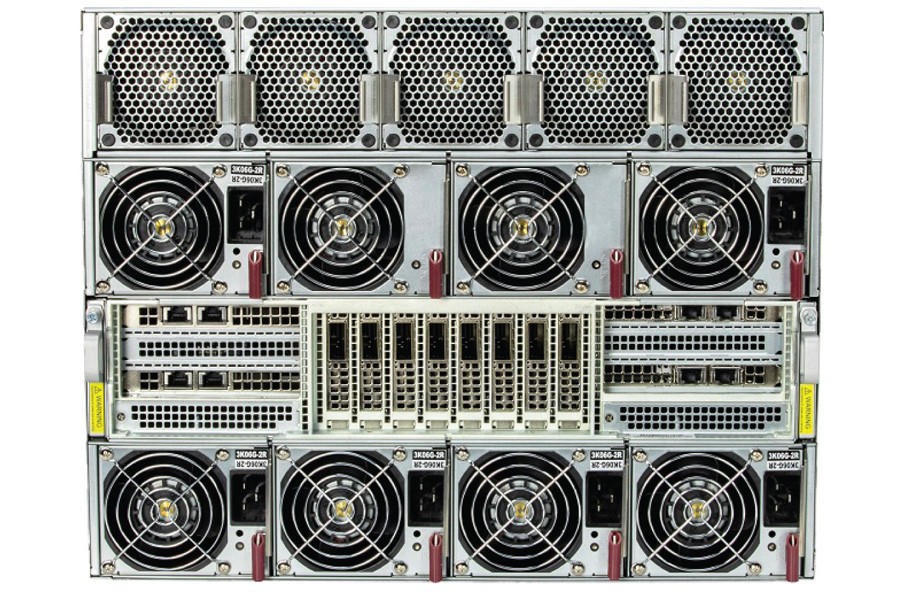

Power Supply | 1x 3000W Redundant Titanium Level power supply
Dimension (WxHxL): 106.5 x 82.1 x 245.5 mm +12V: Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SB: Max: 3A / Min: 0A AC Input: 3000W: 207-240Vac / 50-60Hz Output Type: Backplanes (gold finger) |
Input Output | Video:
1 VGA port(s) |
Cooling | Fans:
10 heavy duty fans with optimal fan speed control Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
