FT65TB5652-2T-N
Please Inquire Configured Summary
FT65TB5652-2T-N
Mitac/Tyan​ 4U 8Bays Single Processor Rackmount Server

  • 1S Intel Emerald Rapids / Sapphire Rapids CPU
  • 8 DIMM slots with DDR5-4800 memory support
  • 4 FH/FL double-wide PCIe 5.0 x16 slots
  • 6 3.5" SATA + 2 NVMe U.2 hot-swap, tool-less drive bays
  • 1 NVMe M.2 2280 slot (PCIe 3.0 x4)
  • 2 10GBase-T LAN + 1 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
  • Single ATX12V PSU

Storage configuration notice:
2x 2.5" U.2 Drive
6x 3.5" HDD Drive
1x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU B5652F65TV6E2H-2T-N
Processor
Q'ty / Socket Type:
(1) LGA4677

Supported CPU Series:
4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors

Thermal Design Power Wattage:
Max up to 350W (TDP)
Memory
Supported DIMM Qty:
(8) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) - 4th Gen. / RDIMM / RDIMM-3DS DDR5 5600 MHz (1DPC) / 4400MHz (2DPC) - 5th Gen.

Capacity:
Up to 1,024GB RDIMM/ 2,048GB 3DS RDIMM DDR5 5600/4800/4400 /*Follow latest Intel DDR5 Memory POR

Memory channel:
8 Channels per CPU

Memory voltage:
1.1V
Chassis

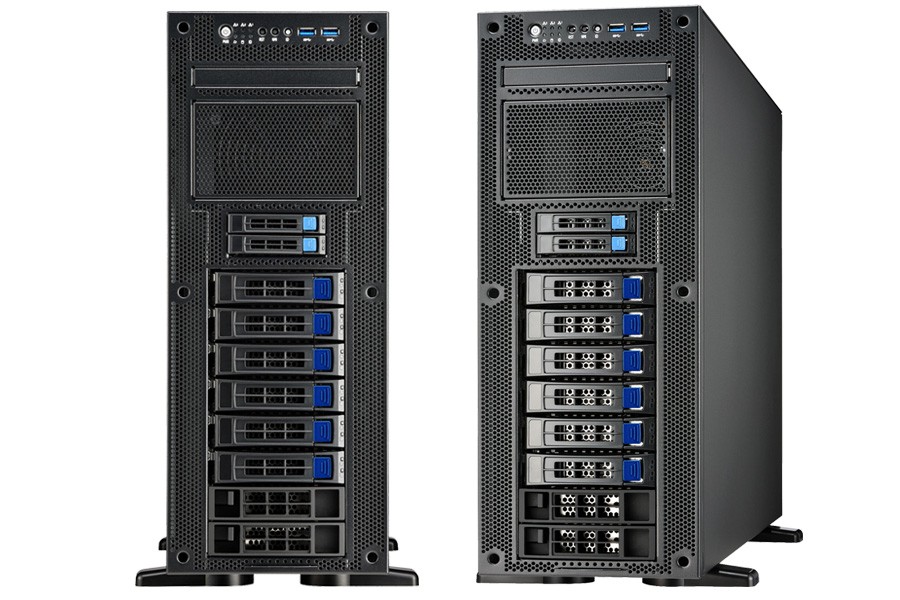

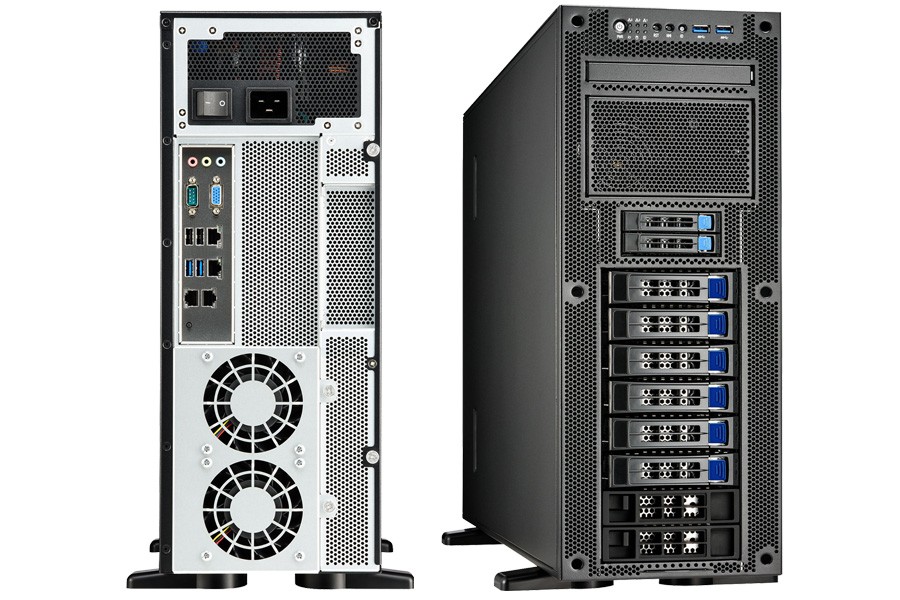

Workstation Server
Dimensions
Dimension (D x W x H):
25.59" x 17.245" x 6.93"
650mm x 438mm x 176mm

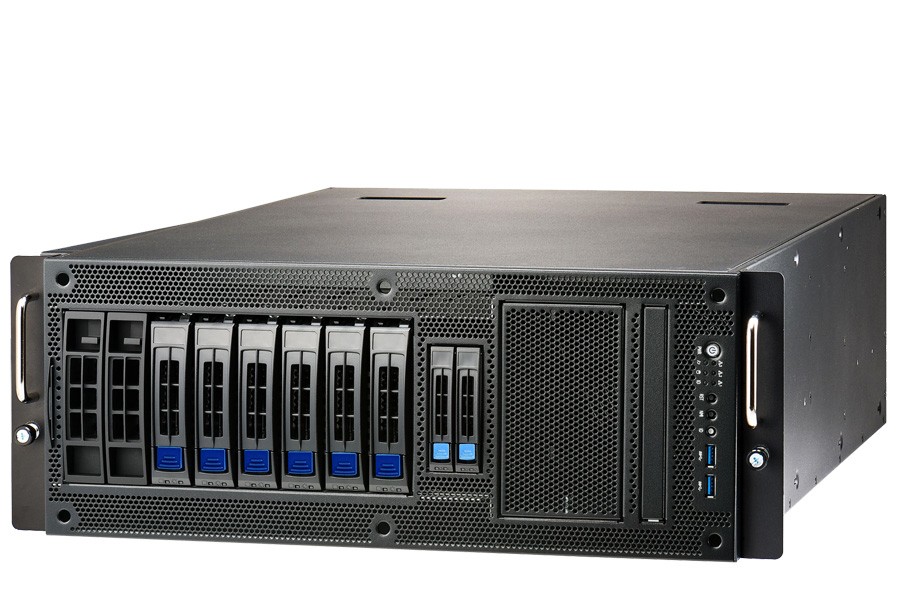

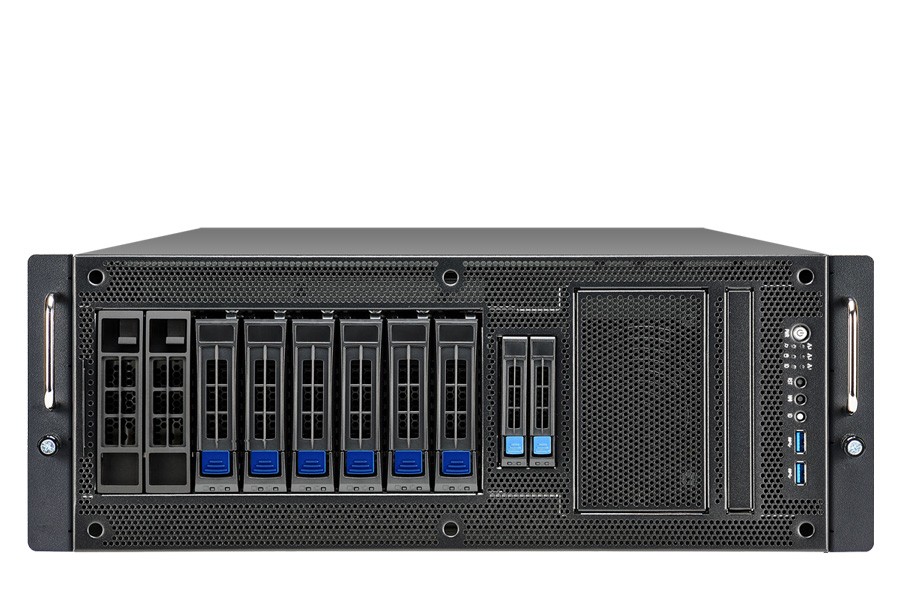

Front Panel
Buttons:
(1) UID / (1) PWR w/ LED / (1) RST

LEDs:
(1) HDD / (1) ID / (1) System Event / (2) LAN activity

I/O Ports:
(2) USB 2.0 ports / (1) USB 3.2 Gen.1 port / (1) COM Port / (1) LAN Port (IPMI) / (1) VGA port / (1) Line in / Line out / MIC
Bios
Brand / ROM size:
AMI / 32MB

Feature:
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5
Onboard Devices
LAN
Q'ty / Port:
(2) 10GbE ports + (1) GbE port + (1) GbE dedicated for IPMI
Controller:
Intel I210 / Intel X550
PHY:
Realtek RTL8211F

Storage SATA
Connector:
(6) SATA
Controller:
Intel C741
Speed:
6Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)

Storage NVMe
Connector (M.2):
(1) 2280 (by PCIe 3.0 x4)
Connector (U.2):
(1) MCIO x8

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600
HDD Drive Bays
Q'ty / Type:
(2) 2.5" Hot-Swap NVMe HDD/SSDs / (6) 3.5"/2.5" Hot-Swap SSD/HDD

Front Drive Bay Interface:
(2) SATA 6Gb/s / NVMe / (6) SATA 6Gb/s / SAS 12Gb/s

Front Drive Backplane Support:
SAS 12Gb/s /SATA 6Gb/s /NVMe

Notification:
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact our technical support if a discrete SAS HBA/RAID adapter is required.
Expansion Slots
(1) PCIe Gen 5 x8 slot / (4) PCIe Gen 5 x16 slots
Power Supply
Type:
ATX
Input Range:
AC 100~240V/15~12A
Frequency:
50/60 Hz
Output Watts:
1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)
Efficiency:
80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac)
Redundancy:
N/A

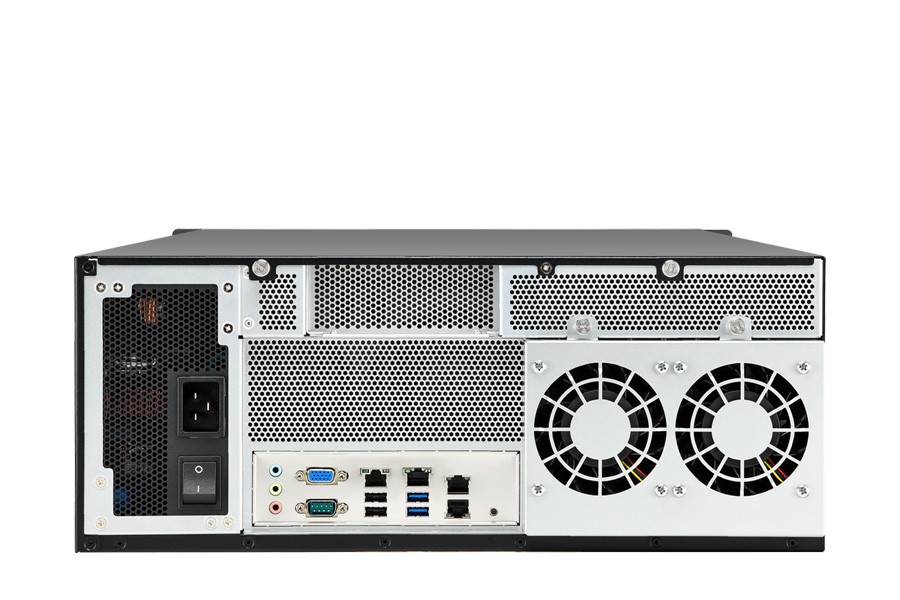

Input Output
USB:
(2) USB2.0 ports (@ rear) / (2) USB3.2 Gen.1 ports (@ rear)

COM:
(1) DB-9 COM port

VGA:
(1) D-Sub 15-pin port

Audio:
(1) 2x5-pin header

RJ-45:
(2) 10GbE ports + (1) GbE port + (1) GbE dedicated for IPMI

Button:
UID Button
Cooling
Fan:
(2) 8038 exhausted fans module at rear / (3) 12cm fans

Air Duct:
Tailored Air Duct
Operating Environment
Operating Temp.:
0° C ~ 40° C (32° F~ 104° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C
Details
TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
FT65TB5652-2T-N
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
Added
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6558Q (3.20 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558 (2.10 Ghz 330W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558P (2.70 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8570 (2.10 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8580 (2.00 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592+ (1.90 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592V (2.00 Ghz 330W)
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Added
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
NVMe U.2/U.3
*No NVMe U.2/U.3 Drives
Added
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
NETWORK CARD
*No Network Card
Added
Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card
Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter
NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
NVIDIA L40 48GB GDDR6 GPU Card
NVIDIA L40S 48GB GDDR6 GPU Card
NVIDIA A100 80GB HBM2e GPU Card
NVIDIA H100 80GB HBM2e GPU Card
NVIDIA H200 141GB HBM3e GPU Card
NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
4699
1
0.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
