3015MR-H10TNR
Please Inquire Configured Summary
3015MR-H10TNR

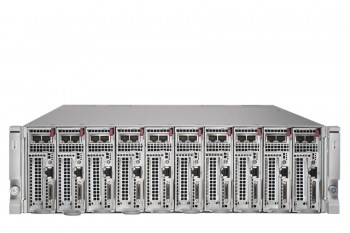

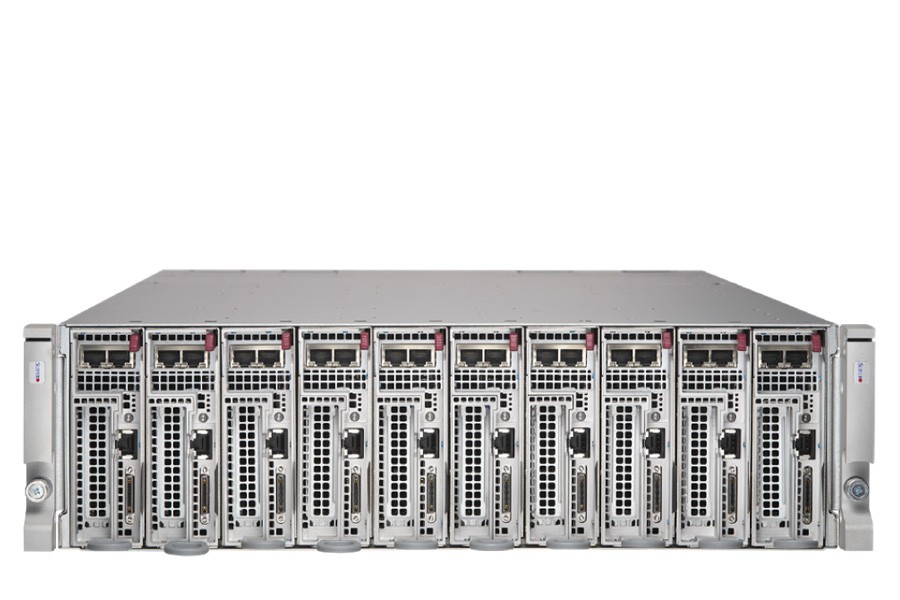

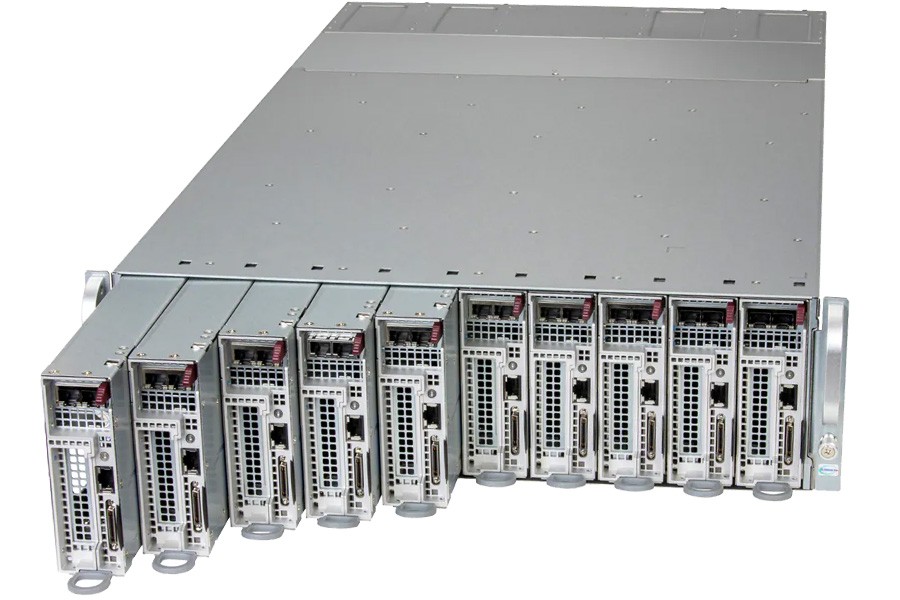

Supermicro 3U 10Nodes 40Bays Single Processor AMD Rackmount MicroCloud Server

  • Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
  • Support for up to 1 single-width PCIe GPU accelerator cards
  • Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
  • Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots
  • Up to 4 internal 2.5" (2 NVMe and 2 SATA) drive bays
  • 2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies
  • Cloud Computing, Web/Collocation Services, Web Cache, CDN, Video Streaming, Social Networking, Downloads, Corporate - WINS, DNS, Print, Login

Storage configuration notice:
External:
(2+2)x 2.5" Fixed Drive per Node
M.2:
1x M.2 per Node

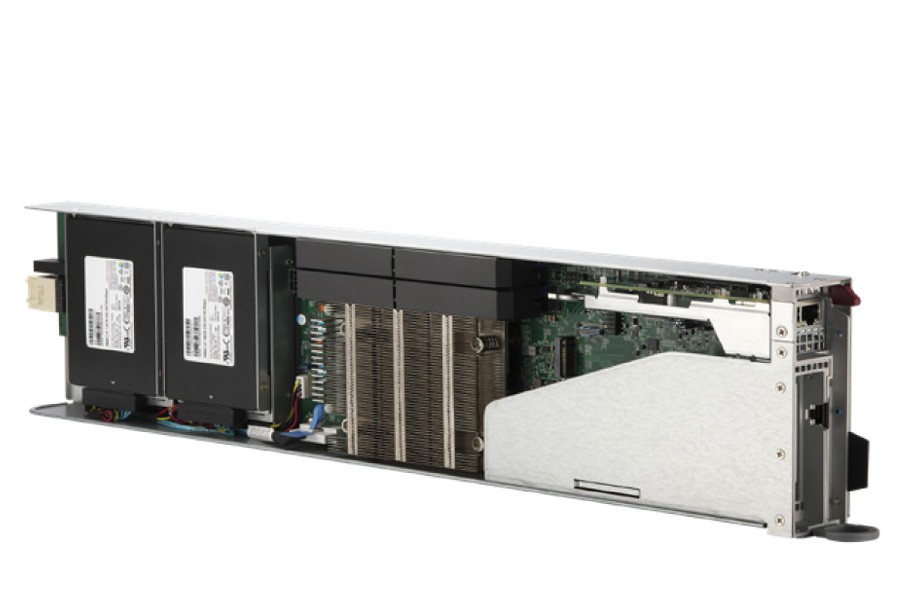

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-3015MR-H8TNR
Processor
(per Node)
CPU:
Single Socket AM5 (LGA-1718)
AMD EPYC™ 4005/4004 Series Processor

Core Count:
Up to 16C/32T; Up to 128MB Cache

Note:
Supports 65W - 170W TDP CPUs (Air Cooled)*
*Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.

GPU (per Node)
Max GPU Count:
Up to 1 single-width GPU

Supported GPU:
NVIDIA PCIe: L4, A2
Memory
(per Node)
Memory:
Slot Count: 4 DIMM slots
Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage:
1.1V
Chassis
3U Rackmount Chassis
Dimensions
Height:
5.16" (131 mm)
Width:
17.68" (449 mm)
Depth:
30.51" (775 mm)
Front Panel
Buttons:
Power On/Off
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM
Onboard Devices
(per Node)
NVMe:
NVMe; (Native)

Chipset:
System on Chip

Network Connectivity:
No NIC option supported
HDD Drive Bays
(per Node)
Drive Bays Configuration:
Default: Total 4 bays
2 internal fixed 2.5" PCIe 5.0 NVMe drive bays
2 internal fixed 2.5" SATA drive bays

M.2:
1 M.2 NVMe slot (M-key 2280/22110)
Expansion Slots
(per Node)
PCI-Express (PCIe) Configuration:
Default
1 PCIe 5.0 x16 LP slot
1 PCIe 5.0 x4 MicroLP slot

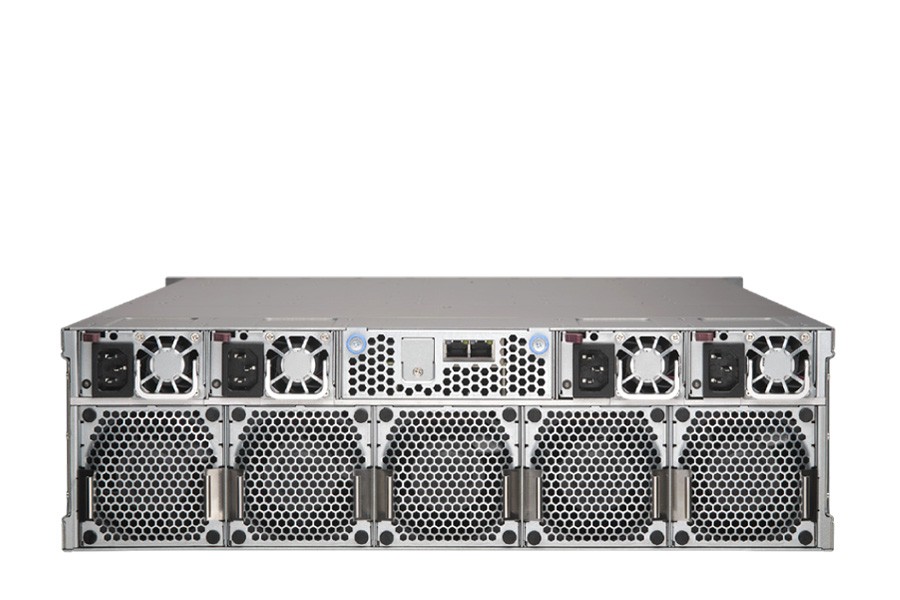

Power Supply
4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 203 mm

Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)

+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)

12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A

Output Type:
Backplanes (gold finger)
Input Output
(per Node)
USB:
2 USB 2.0 ports

Video:
1 port

TPM:
1 TPM Onboard/port 80
Cooling
Fans:
5 Heavy Duty 8cm Fan(s)

Air Shroud:
10 Air Shrouds
Operating Environment
ROHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Details
Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
Power-on mode for AC power recovery
ACPI 6.0 Power Management


Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown


PC Health Monitoring
Temperature:
Monitoring for CPU and chassis environment
CPU:
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
Fan:
speed control, Dual Cooling Zone
3015MR-H10TNR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 4004 Series Processor 4124P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4244P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4344P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4364P (4.50GHz,105W)
AMD EPYC 4004 Series Processor 4464P (3.70GHz,65W)
AMD EPYC 4005 Series Processor 4245P (3.90GHz,65W)
Added
AMD EPYC 4005 Series Processor 4345P (3.80GHz,65W)
AMD EPYC 4005 Series Processor 4465P (3.40GHz,65W)
AMD EPYC 4005 Series Processor 4545P (3.00GHz,65W)
MEMORY
16G DDR5 5600MHz ECC UDIMM
Added
32G DDR5 5600MHz ECC UDIMM
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
NVMe U.2/U.3
*No NVMe U.2/U.3 Drives
Added
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
