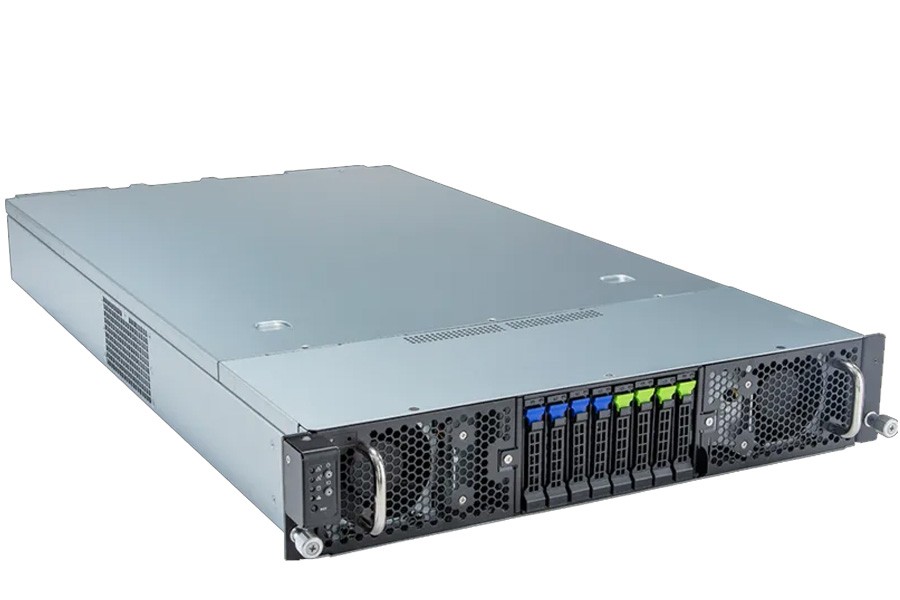

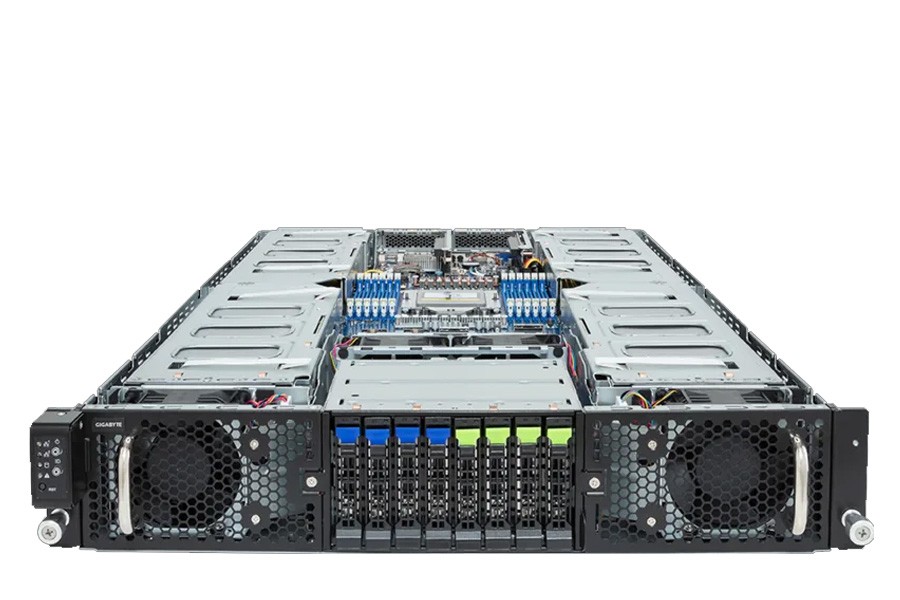

Gigabyte 2U 8Bays Single AMD Processor up to 8GPU Rackmount Server

Gigabyte 2U 8Bays Single AMD Processor up to 8GPU Rackmount Server

Supports up to 8 x Dual slot Gen5 GPUs
Single AMD EPYC™ 9005/9004 Series Processors
12-Channel DDR5 RDIMM, 12 x DIMMs
Dual ROM Architecture
2x 10Gb/s LAN ports via Broadcom® BCM57416
4x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
4x 2.5" SATA/SAS hot-swap bays
2x M.2 slots with PCIe Gen5 x4 interface
8x FHFL PCIe Gen5 x16 slots for GPUs
2x LP PCIe Gen5 x16 slots for add-in cards
Dual 3000W 80 PLUS Titanium redundant power supply

Storage configuration notice:
External:
8x 2.5" Hot-swap Drive Bays
Internal:
2x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	G293-Z22-AAP1
Processor	CPU: AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 300W The EPYC 9005 series processors with a cTDP of 300W are supported only under ambient temperatures of 30°C. Socket: 1x LGA 6096 Socket SP5
Memory	12 x DIMM slots DDR5 memory supported 12-Channel memory per processor AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Chassis	2U Rackmount Chassis
Onboard Devices	LAN Rear: 2x 10Gb/s LAN (1 x Broadcom® BCM57416) Support NCSI function 1x 10/100/1000 Mbps Management LAN Video Integrated in ASPEED® AST2600 1x VGA port
HDD Drive Bays	Front hot-swap: 4 x 2.5" Gen5 NVMe/SATA/SAS 4 x 2.5" SATA/SAS Internal M.2: 2 x M.2 (2280/22110), PCIe Gen5 x4 SAS card is required to support SAS drives.

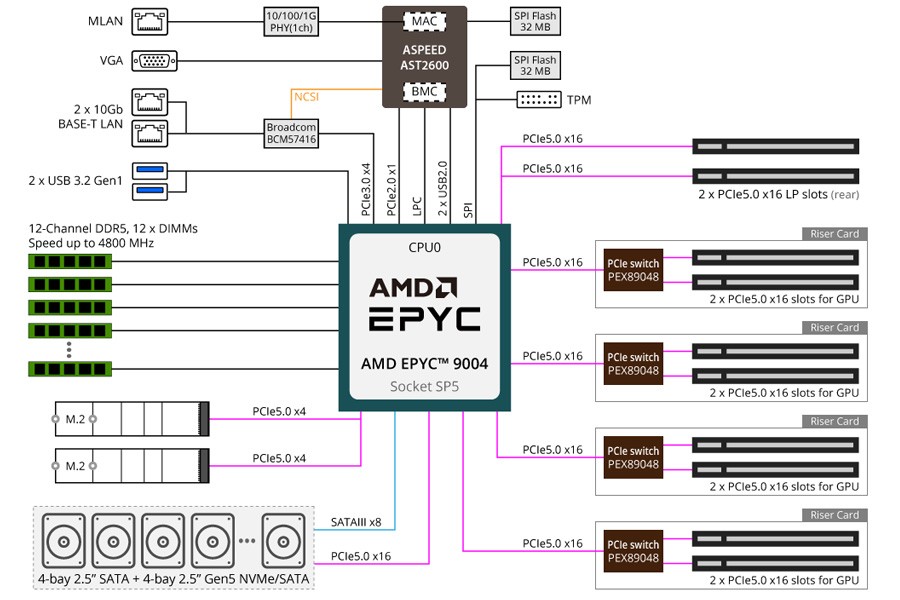

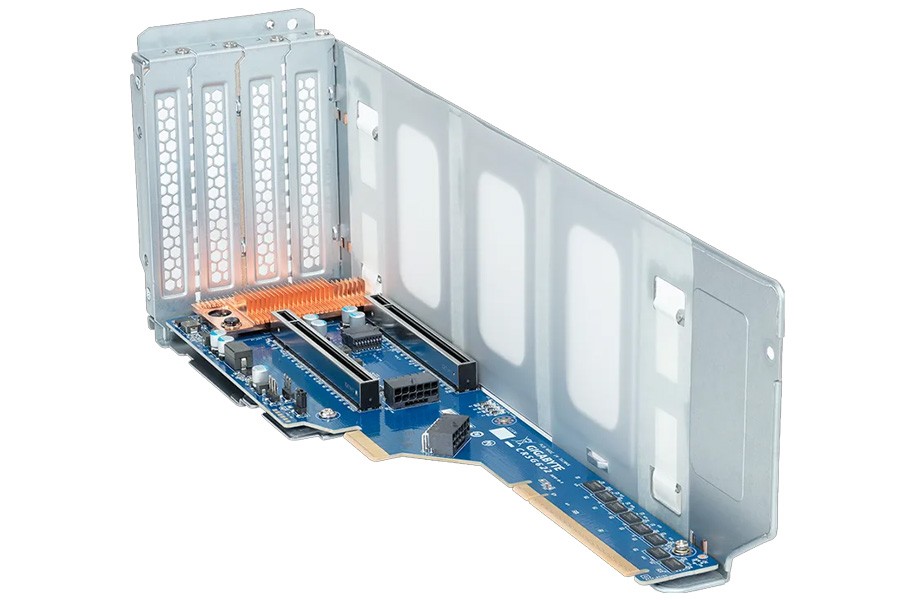

Expansion Slots	Riser Card CRSG622 x 2: 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs Riser Card CRSG623 x 2: 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs Riser Card CRSG01F x 2: 2 x LP x16 (Gen5 x16), from CPU Note: Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm. The system is only validated with a uniform GPU model.
Power Supply	Dual 3000W 80 PLUS Titanium redundant power supply AC Input: 100-127V~/ 14.5A, 50/60Hz 200-220V~/ 16A, 50/60Hz 220-240V~/ 16A, 50/60Hz DC Input: (Only for China) 240Vdc/ 16A DC Output: Max 1097.4W/ 100-127V~ +12.2V/ 87A +12Vsb/ 3A Max 2598W/ 200-220V~ +12.2V/ 210A +12Vsb/ 3A Max 3037.2W/ 220-240V~ or 240Vdc Input +12.2V/ 246A +12Vsb/ 3A The system power supply requires C19 power cord.

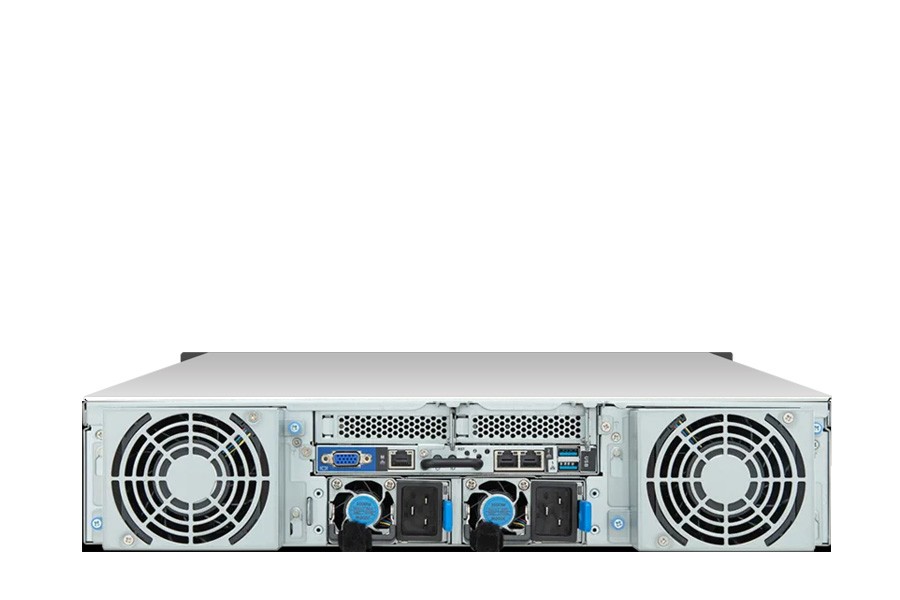

Input Output	Front I/O 1x Power button with LED 1x ID button with LED 1x Reset button 2x LAN activity LEDs 1x Storage activity LED 1x System status LED Rear I/O 2x USB 3.2 Gen1 ports (Type-A) 1x VGA port 2x RJ45 ports 1x MLAN port 1x Power button with LED 1x ID button with LED 1x NMI button 1x Reset button 1x System status LED
Cooling	System Fans 8 x 80x80x38mm (18,300rpm)
Operating Environment	Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)
Details	System Management ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 5th Gen Processor 9015 (3.6GHz,125W)

Added

AMD EPYC 5th Gen Processor 9115 (2.6GHz,125W)

AMD EPYC 5th Gen Processor 9135 (3.65GHz,200W)

AMD EPYC 5th Gen Processor 9255 (3.2GHz,200W)

AMD EPYC 5th Gen Processor 9335 (3.00GHz,210W)

AMD EPYC 5th Gen Processor 9355 (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9355P (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9365 (3.4GHz,300W)

AMD EPYC 5th Gen Processor 9455 (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9455P (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9535 (2.4GHz,300W)

MEMORY

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Enterprise-Class HDD/SSD

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

NVMe M.2

*No NVMe M.2 Drives

Added

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

(Optional) Enterprise-Class HDD/SSD

*No Hard Drive

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

GPU/Coprocessor

*No GPU

Added

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA H200 141GB HBM3e GPU Card

NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
