J4108-02-04X
Please Inquire Configured Summary
J4108-02-04X
AIC 4U 108Bays JBOD

  • Intelligent Enclosure Management
  • Individual drive power management
  • Hot swap design for easy maintenance and management
  • Enclosure Cable Management Kit
  • Tool-less drive trays
Storage configuration notice:
External:

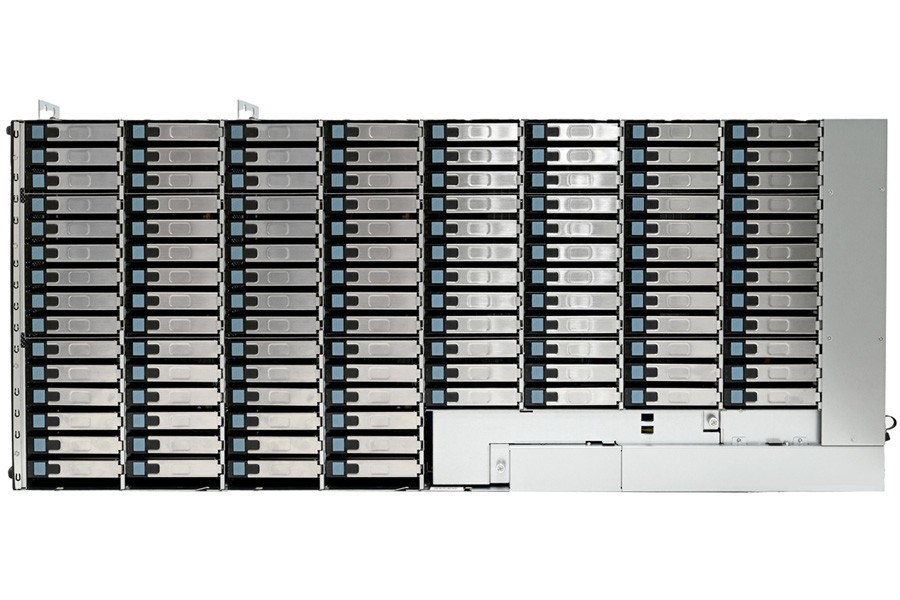

108x 3.5" Hot-swap Drive Bays

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU J4108-02-04X
Details
General
Number of Expander:
Single/Dual

Expander Chip:
Hub: SAS4x48
Edge: SAS35x40 & SAS35x36/SAS4x40 &SAS4x32
XJ1-40782-01~04 Edge 24/30bays fw and mfg file.
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface:
24Gb & 12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander

Form Factor:
3.5"

Administration / Management
Admin/Firmware Upgrade:
In-band
IEM port
LED Indicators, Audible Alarm:
Yes

Hot swap & Redundancy
Drive Bays:
108
Cooling:
8 x 60x56mm hot swap fans
1 x 40x56mm fan per expander module

Power Supply:
2000W 1+1 hot swap redundant 80+ Platinum (with C20 power plug)
2000W 1+1 hot swap redundant 80+ Titanium (with C14 power plug)

Power Entry:
Dual AC Inlet
Expander Modules:
Dual SAS topology (Optional)

Electrical & Environment
AC Input:
Platinum:
200-240V~,50/60Hz,15A
Titanium:
100-127V~,50/60Hz,12A (except China)
200-240V~,50/60Hz,10A

Operating Environment:
• Temperature 0ºC to 35ºC
• Relative humidity 20% to 80%
Non-operating Environment:
• Temperature -20ºC to 60ºC
• Relative humidity 10% to 90%

Dimensions (W x D x H):
mm:
434 x 1050 x 176
434 x 1273 x 176 (with CMA)
inches:
17 x 41 x 7
17 x 50 x 7 (with CMA)

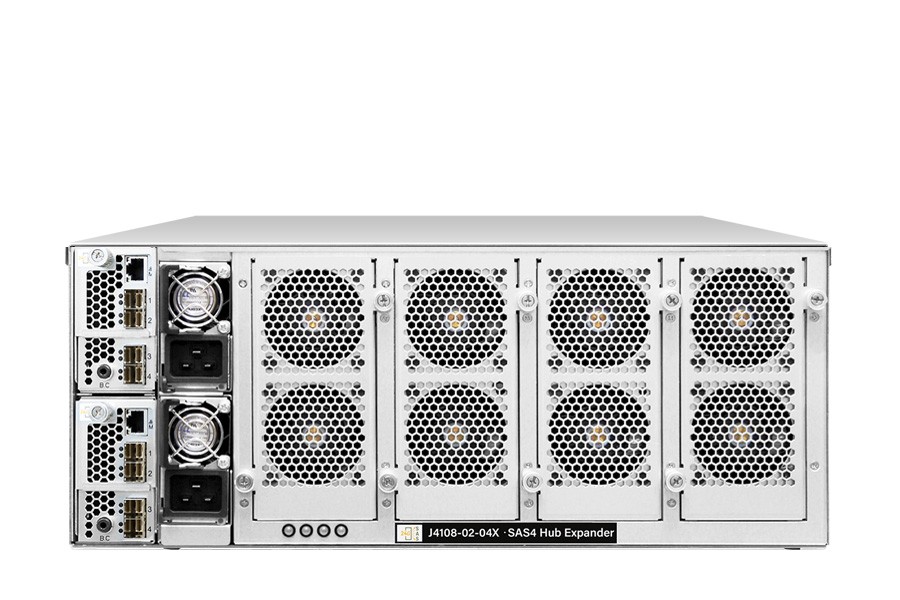

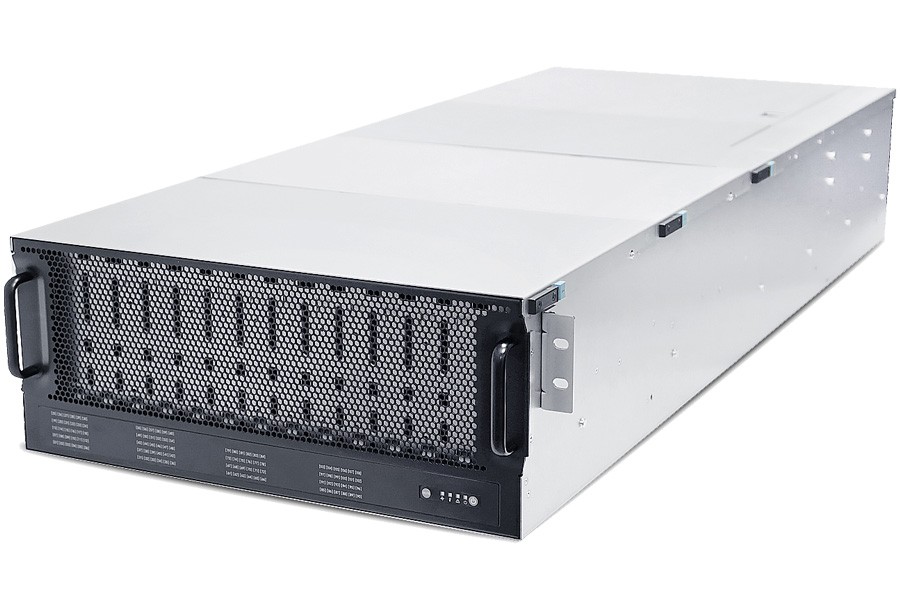

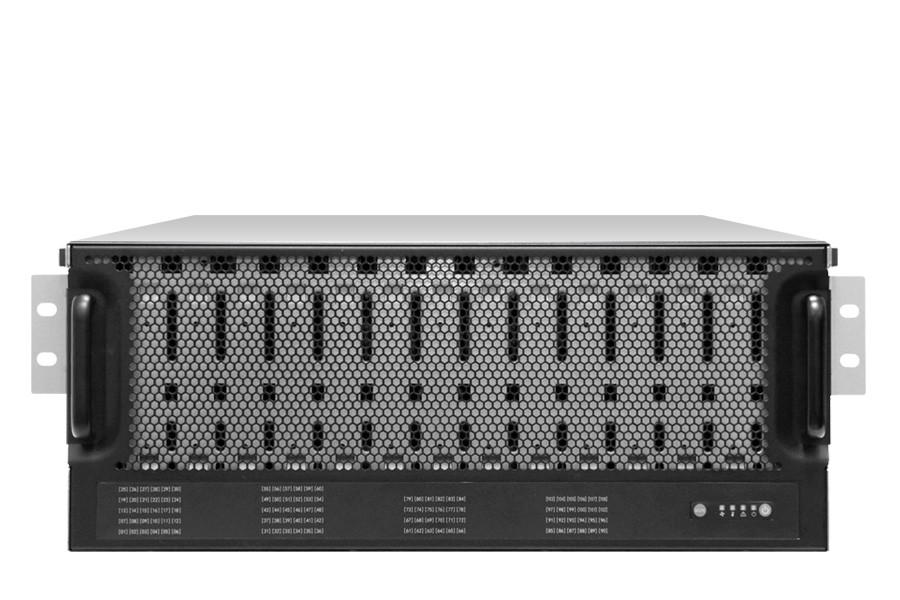

J4108-02-04XJ4108-02-04XJ4108-02-04XJ4108-02-04X
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
