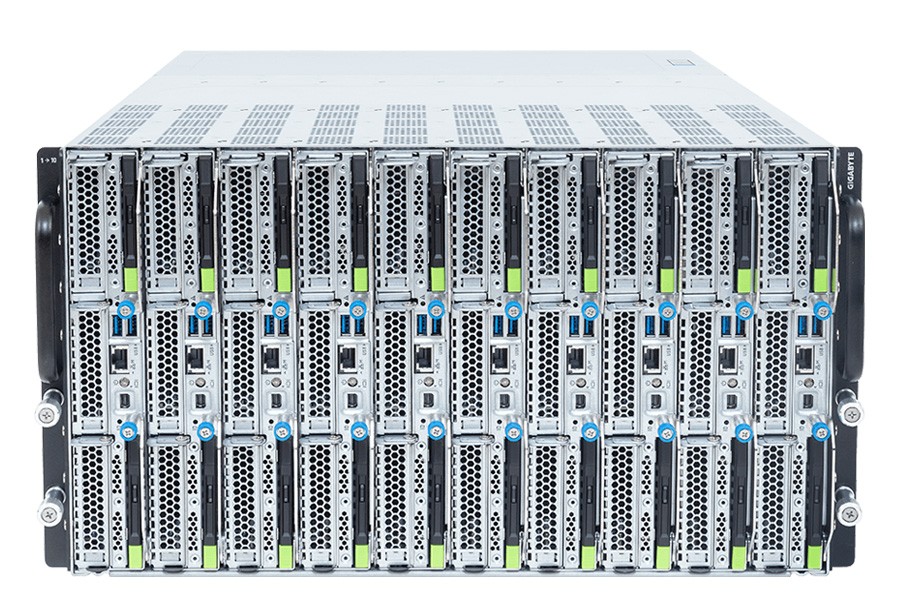

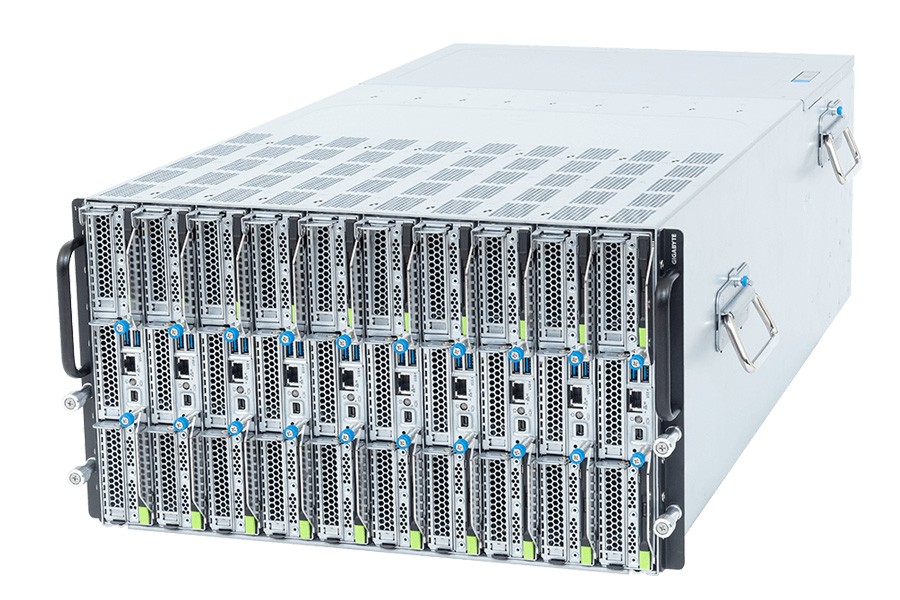

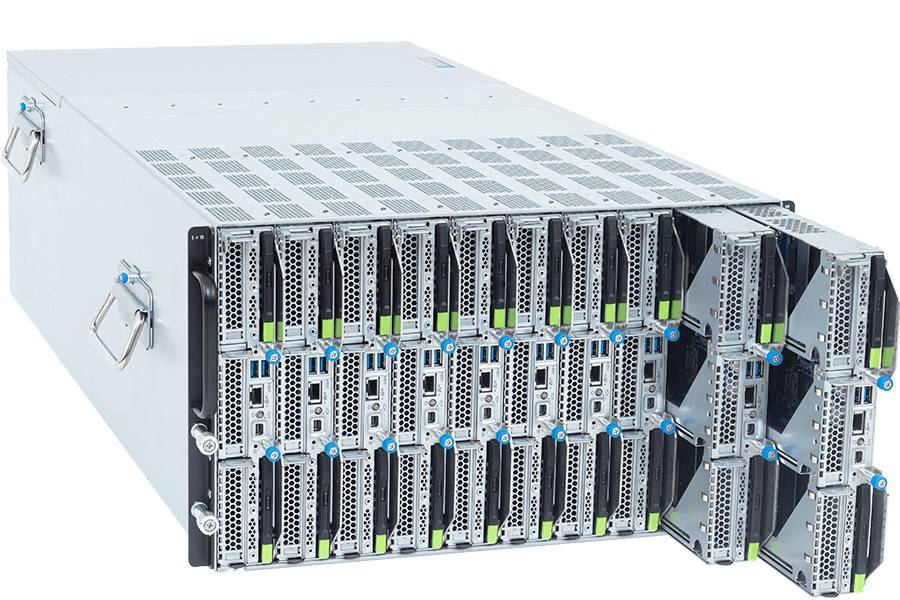

6U 10-node front access server system
Dual AMD EPYC™ 9005/9004 Series Processors per node
12-Channel DDR5 RDIMM, 24 x DIMMs per node
2x E3.S Gen5 NVMe hot-swap bays per node
2x LP PCIe Gen5 x16 slots per node
10x 3200W 80 PLUS Titanium redundant power supplies

Storage configuration notice:
External:
2x E3.S NVMe drive bays per node

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	B683-Z80-AAS1
Processor	CPU AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Dual processor per node, TDP up to 500W Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable. Socket 20x LGA 6096 Socket SP5
Memory	24x DIMM slots per node Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s
Chassis	6U Chassis
Dimensions	WxHxD 447mm x 262.3mm x 900mm
Onboard Devices	LAN Front: 1x 10/100/1000 Mbps Management LAN per node Rear (MLAN board): 2x Chassis Management LAN Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology. Video Integrated in ASPEED® AST2600 1x Mini-DP per node
HDD Drive Bays	Front hot-swap: 2x E3.S Gen5 NVMe per node, from CPU_0
Expansion Slots	Riser Card x 2: 1x LP x16 (Gen5 x16) per node, from CPU_0 1x LP x16 (Gen5 x16) per node, from CPU_1

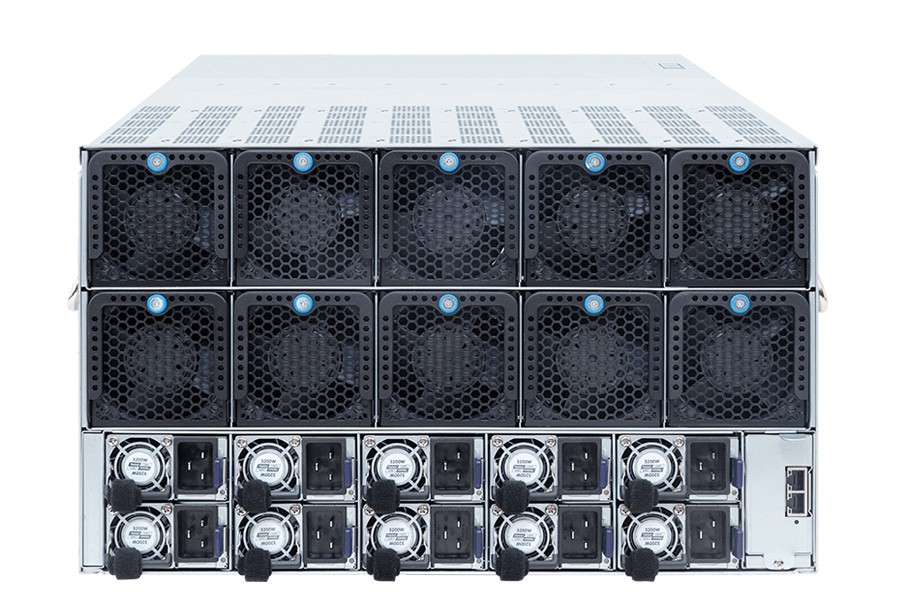

Power Supply	10 x 3200W 80 PLUS Titanium redundant power supplies AC Input: 100-127V~/ 16A, 50-60Hz 200-220V~/ 16A, 50-60Hz 220-240V~/ 16A, 50-60Hz DC Input: (Only for China) 240Vdc/ 16A DC Output: Max 1300W/ 100-127V~ +12.2V/ 106.6A +12.2Vsb/ 3A Max 3000W/ 200-220V~ +12.2V/ 246A +12.2Vsb/ 3A Max 3200W/ 220-240V~ or 240Vdc Input +12.2V/ 262.3A +12.2Vsb/ 3A Note: The system power supply requires C19 power cord.
Input Output	Front I/O Per node: 2x USB 3.2 Gen1 ports (Type-A) 1x Mini-DP 1x MLAN port 1x Power button with LED 1x System status LED 1x ID LED Rear I/O MLAN board: 2x CMC ports 1x CMC status LED
Cooling	System Fans 10x 80x80x80mm
Operating Environment	Operating temperature: 10°C to 25°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9684X (3.42GHz,400W)

AMD EPYC 5th Gen Processor 9015 (3.6GHz,125W)

Added

AMD EPYC 5th Gen Processor 9115 (2.6GHz,125W)

AMD EPYC 5th Gen Processor 9135 (3.65GHz,200W)

AMD EPYC 5th Gen Processor 9175F (4.2GHz,320W)

AMD EPYC 5th Gen Processor 9255 (3.2GHz,200W)

AMD EPYC 5th Gen Processor 9275F (4.1GHz,320W)

AMD EPYC 5th Gen Processor 9335 (3.00GHz,210W)

AMD EPYC 5th Gen Processor 9355 (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9355P (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9365 (3.4GHz,300W)

AMD EPYC 5th Gen Processor 9375F (3.8GHz,320W)

AMD EPYC 5th Gen Processor 9455 (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9455P (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9475F (3.65GHz,400W)

AMD EPYC 5th Gen Processor 9535 (2.4GHz,300W)

AMD EPYC 5th Gen Processor 9555 (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9555P (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9565 (3.15GHz,384W)

AMD EPYC 5th Gen Processor 9575F (3.3GHz,400W)

AMD EPYC 5th Gen Processor 9645 (2.3GHz,320W)

AMD EPYC 5th Gen Processor 9655 (2.6GHz,400W)

AMD EPYC 5th Gen Processor 9655P (2.6GHz,400W)

AMD EPYC 5th Gen Processor 9745 (2.4GHz,400W)

AMD EPYC 5th Gen Processor 9755 (2.7GHz,500W)

AMD EPYC 5th Gen Processor 9825 (2.2GHz,390W)

AMD EPYC 5th Gen Processor 9845 (2.1GHz,390W)

AMD EPYC 5th Gen Processor 9965 (2.25GHz,500W)

MEMORY

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Enterprise-Class HDD/SSD

Samsung PM1743 NVME E3.S SSD 1.92TB

Added

Samsung PM1743 NVME E3.S SSD 3.84TB

Samsung PM1743 NVME E3.S SSD 7.68TB

Samsung PM1743 NVME E3.S SSD 15.36TB

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
