2015TA-HTRF
$3,114.00 Configured Summary
2015TA-HTRF

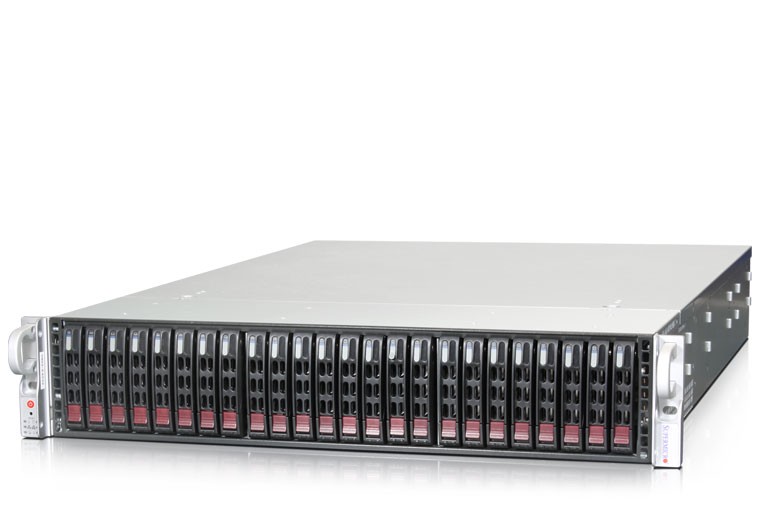

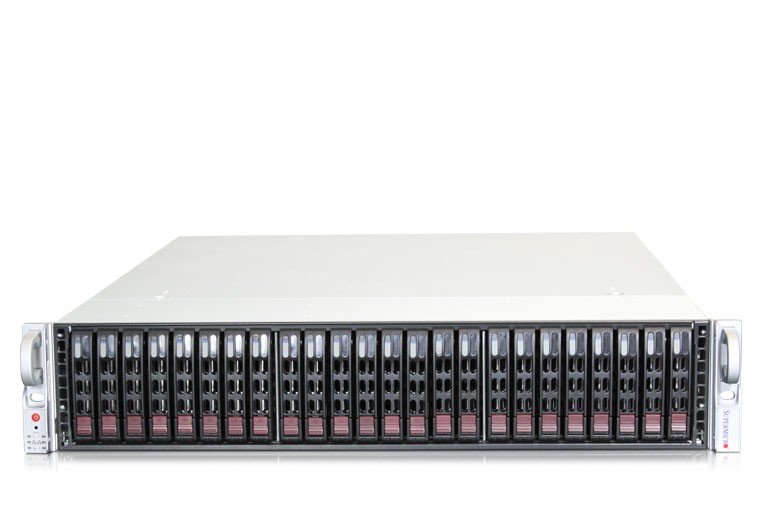

SuperMicro eight (8) Nodes in 2U SuperServer
  • Two (2) Nodes per Single Hot-swap tray.
  • Intel® Atom™ D525 (Pineview-D) Dual Core, 1.8GHz (13W) processor
  • Intel® ICH9R Express Chipset
  • 4GB non-ECC DDR3 800MHz SO-DIMM per node; SuperServer with 8 nodes can support up to 32GB
  • 3x 2.5" Hot-swap SATA HDD per node; total of 24x HDDs (RAID 0, 1, 5)
  • 2x Intel 82574L Gigabit Ethernet LAN 2x RJ45 LAN ports per node
  • Integrated IPMI 2.0 with shared LAN
  • (1+1) Redundant 720W Gold Level power supply with PMbus
  • "Cable-Free" Twin Architecture

Storage configuration notice:
Hot-swap:
24x 2.5" SATA hot-swappable HDD/SSD bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 2015TA-HTRF
Processor
CPU:
Intel® Atom™ D525 processor
System Bus:
DMI
Memory
(per node)
Memory Capacity:

Two 204-pin SO-DIMM sockets
Up to 4GB unbuffered non-ECC DDR3 800MHz SO-DIMM (Single Channel)
Memory Type:
DDR3 800MHz unbuf., non-ECC SO-DIMM
DIMM Sizes:
2 GB, 1 GB, 512 MB, 256 MB
Memory Voltage:
1.5V only
Chassis
2U Rackmount
Dimensions
Height:
3.47" (88mm)
Width:
17.25" (438mm)
Depth:
26.75" (679mm)
Gross Weight:
85 lbs (38.6kg)
Available Colors:
Black
Front Panel
(per hot-swap tray)
Buttons:

Power On/Off button
LEDs:
Power status LED
Network activity LED
System overheat/fan fail/power fail LED
Bios
BIOS Type:
AMI BIOS, 8Mb SPI Flash ROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 1.0 / 2.0 / 3.0
USB Keyboard support
SMBIOS 2.3
Onboard Devices
Chipset:
Intel ICH9R Express
Intel 82574L
SATA:
6x SATA (3 Gbps)
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers:
High Performance Intel® 82574L Dual Port Gigabit LAN
Virtual Machine Device Queues High efficient I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
VGA:
Matrox G200eW 16MB DDR2
Super I/O:
Nuvoton W83627DHG UBE
HDD Drive Bays
24x 2.5" Hot-swap SATA drive bays total
Enterprise SATA HDD only recommended
Power Supply
720W (1+1) Redundant high-efficiency power supply with PMBus
AC Input:
100-240 V, 50-60 Hz, 4-9 Amp
DC Output:
3 Amp @ +5V standby
59 Amp @ +12V
With Power Distributor:
+5V: 30 Amp
Certification:
80+ Gold Certified
Input Output
(per node)
Serial ATA:

3x SATA ports (3Gbps) through hot-plug slot, with RAID 0, 1, 5
1x SATA port onboard
USB:
6 USB 2.0 ports (2 rear + 4 via 2 headers)
LAN:
2x RJ45 LAN port
IPMI:
Integrated IPMI 2.0 with shared LAN
DOM:
1x DOM (Disk on Module) power connector
Others:
2x COM port headers ready
TPM 20-pin header ready
Cooling
4x 80mm heavy duty fans with PWM fan speed controls
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°to 35°C (50°to 95°F)
Non-operating Temperature: -40°to 70°C (-40°to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5 to 95% (non-condensing)
Included Items
Motherboard / Chassis:

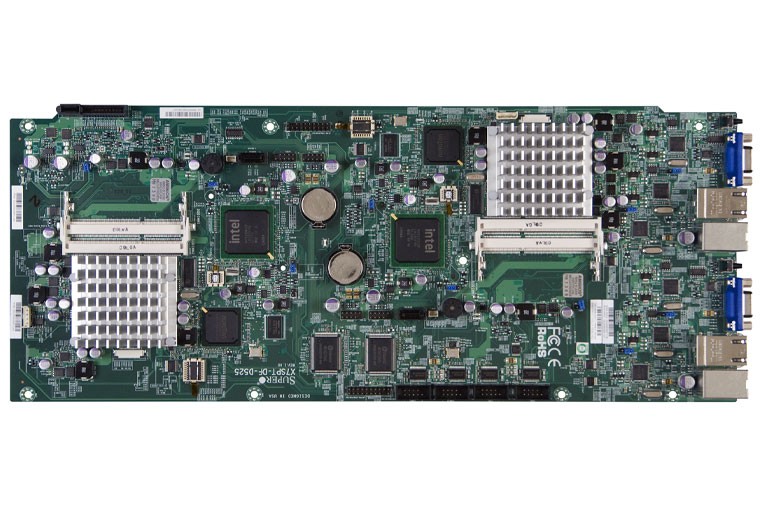

4x MBD-X7SPT-DF-D525+
1x CSE-217HO-R720B
Backplane:
4x BPN-ADP-6SATA3
Backplane:
1x BPN-SAS-217HQ
CD:
1x CDR-X7-UP
Power Supply:
2x PWS-721P-1R
Drive Tray(s):
24x MCP-220-00047-0B
Rails:
1 set MCP-290-00053-0N

2015TA-HTRF2015TA-HTRF2015TA-HTRF
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
MEMORY
Micron 8GB 1600MHz DDR3L ECC CL11 SO-DIMM Memory
+ $196.00
*No Memory
Added
Enterprise-Class HDD/SSD
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $113.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $152.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $282.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $607.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,062.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,141.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
Added
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $43.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $134.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $343.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $710.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $140.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $335.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $684.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,398.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $142.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $344.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $745.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
