M1W-6500P
$119.00 Configured Summary
M1W-6500P

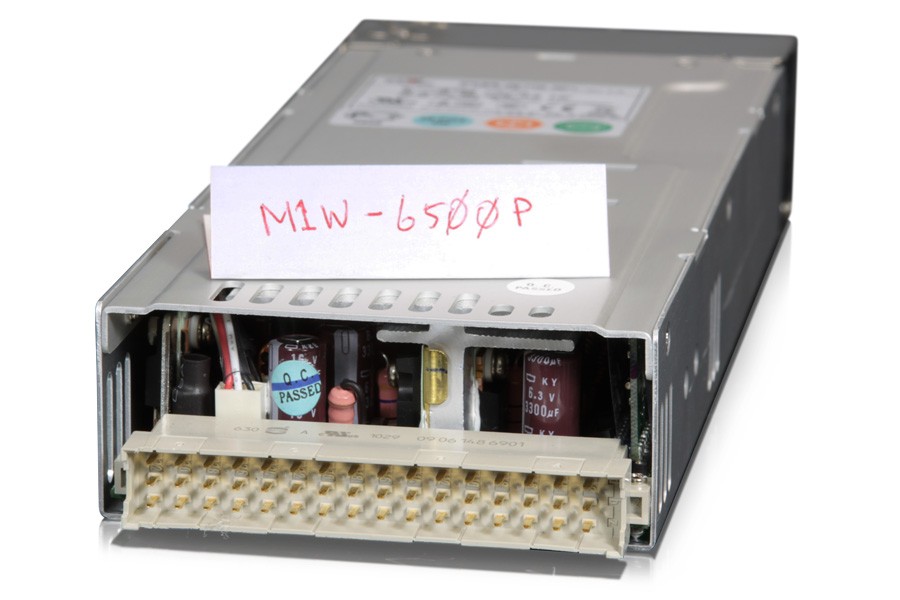

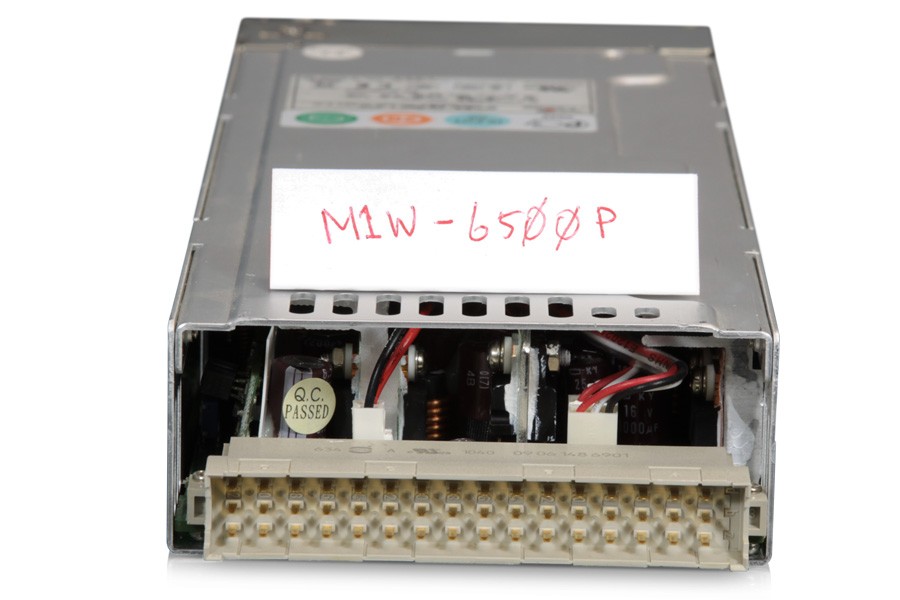

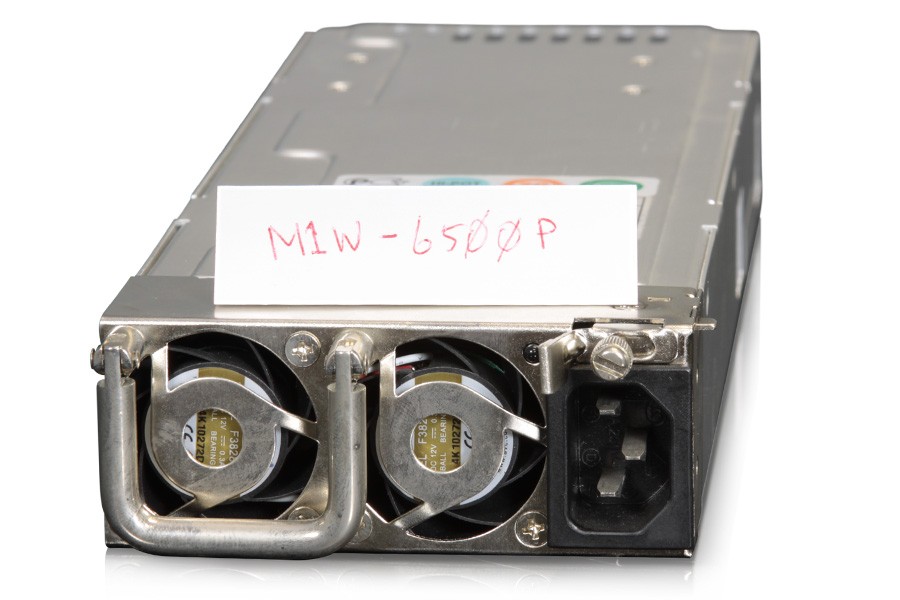

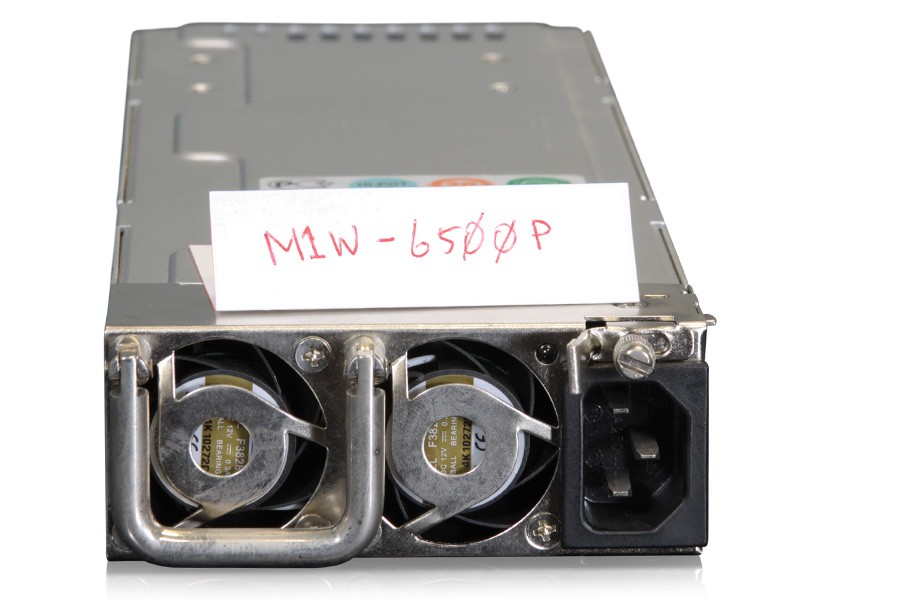

EMACS / Zippy M1W-6500P 500W Redundant Power Supply Module
Support Zippy DM2W6500F & Zippy DM1W46D50F power  ( 3 Pcs in Stock)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU M1W-6500P
Details
Brand:
EMACS / Zippy

Model:
M1W-6500P

Type:
Single power supply module
support Zippy M2W6500F & Zippy M1W46D50F power supply

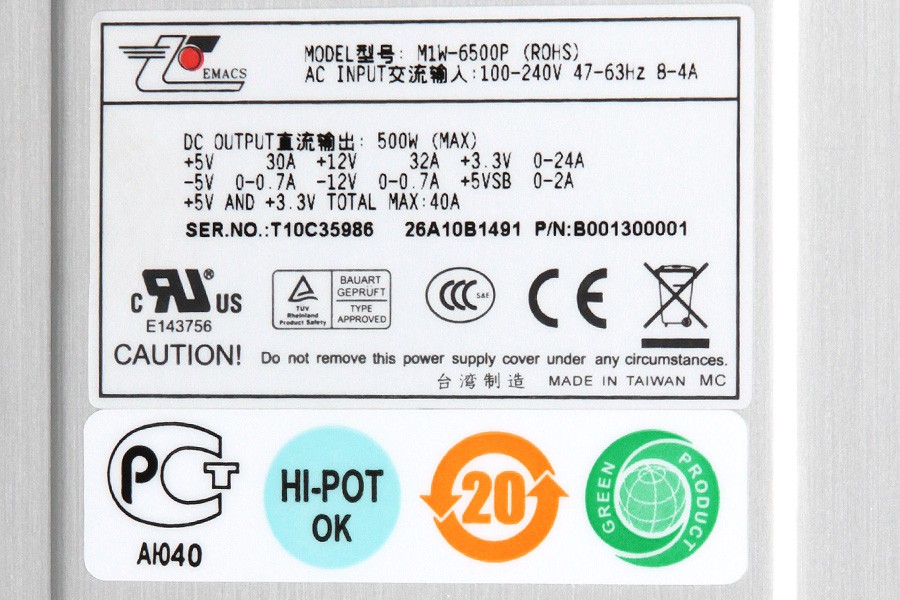

Rating:
500W(max)

Output:
+5V @ 30A,+12V @ 32A, +3.3V @ 0-24A, -5V @ 0-0.7A,
-12V @ 0-0.7A, +5VSB 0-2A, +5V and 3.3V Total Max 40A

TEMPERATURE RANGE OPERATING:
0°C---40°C

Over voltage protection:
Yes

Overload protection:
Yes

Over Current Protection:
Yes

Short Circuit Protection:
Yes

COOLING:
1x 38mm DC FAN

VOLTAGE:
90 - 264VAC

FREQUENCY:
47 - 63Hz

POWER FACTOR CORRECTION:
95% @ 110V, FULL LOAD

Dimension:
3.87"(W) x 1.57"(H) x 10.44"(D)

Conditon:
New
M1W-6500PM1W-6500PM1W-6500PM1W-6500PM1W-6500P
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
