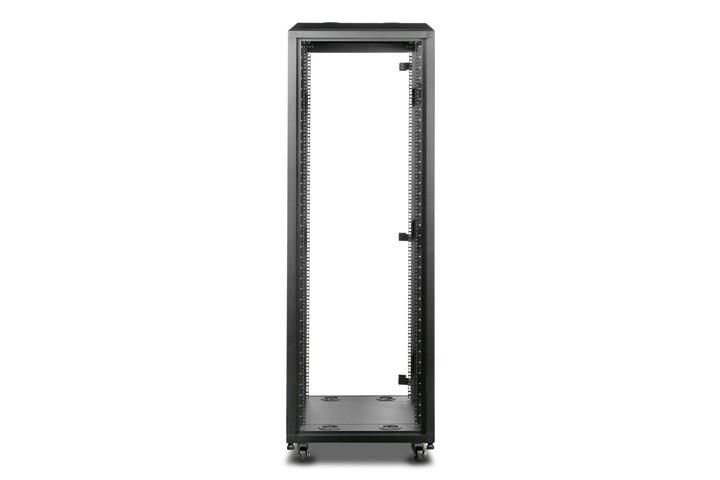

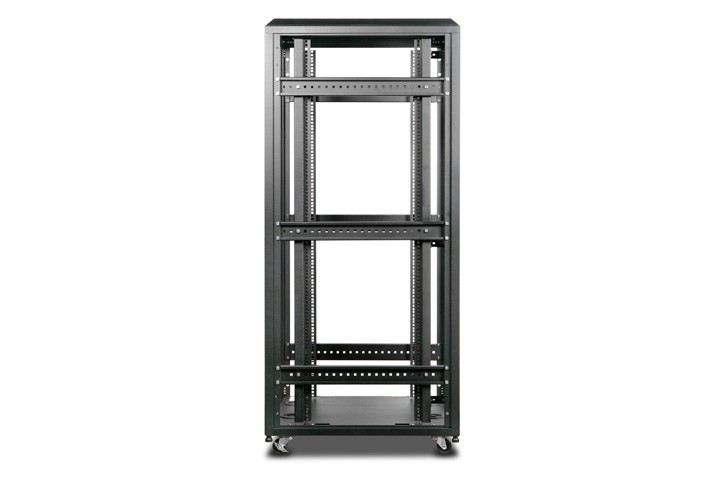

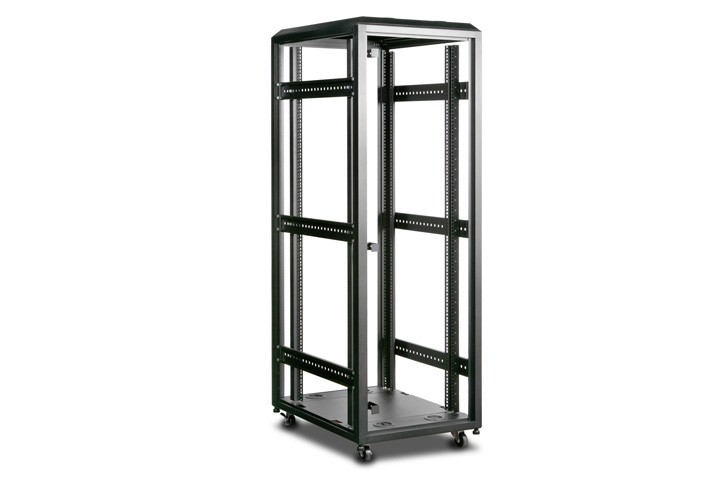

36U 4-Post 31.5" (800mm) Open Frame Rack
- Universal Fit Most of Rackmount Chassis and Equipment

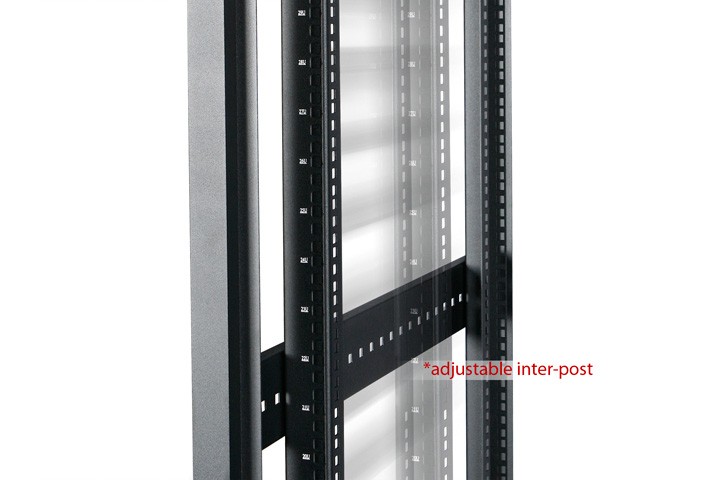

- Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
- Fit of Rack-mount Chassis

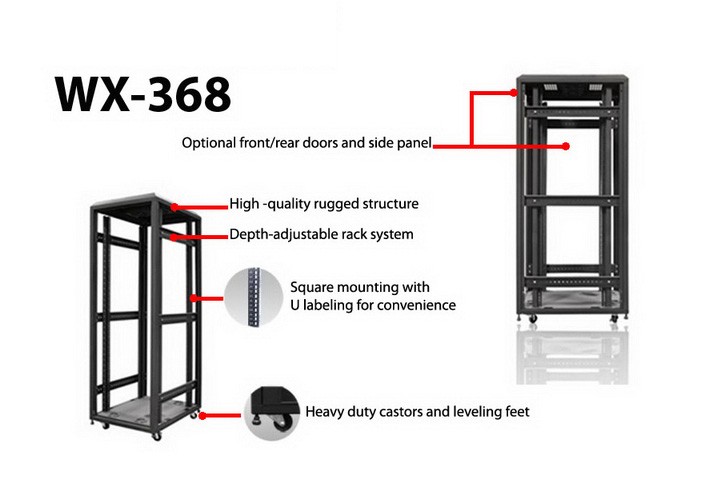

- Optional Side Panels
- Optional Front/Rear Doors
- Locking Mechanism Design on Casters
- Comes with M5 Mounting Screws and Cage Nuts
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | WX-368 |
| Details | Model Number:

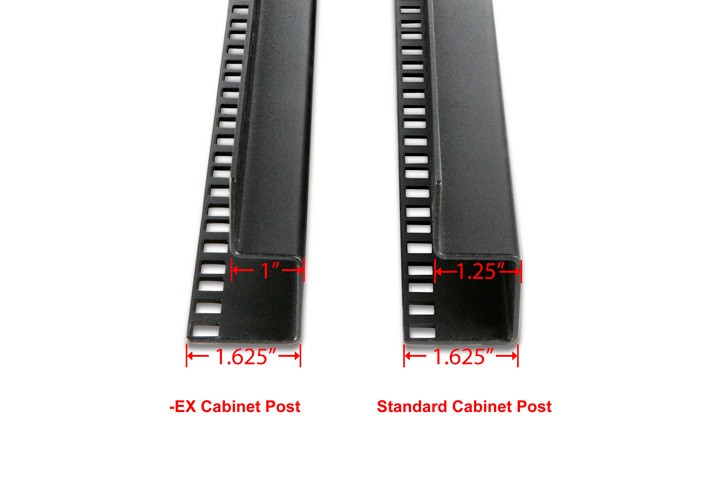

WX-368 RoHS Compliance Version: Yes Form Factor: 36U Material: Horizontal Rails:SPCC t:2.0mm Vertical Rails:SPCC t:2.0mm Top Panel:SPCC t:1.2mm Color: Black (RAL9011) Loading Capacity: 2200 lbs Supported Chassis Depth: 29" and under Internal Dimensions: Height: 64.25" Depth: outer post-to-post 26.5" max Dimensions (WxHxD): 23.50" x 71.75" x 31.50" 597 mm x 1,822 mm x 800 mm Notes: - for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WX-368-EX. - HTS code: 8473.30.5100 (ECCN is not applicable). - make sure sliding rails minimum mounting depth is within the cabinet's internal maximum mounting depth 26.5". |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
