ULT-3KRT
Please Inquire Configured Summary
ULT-3KRT

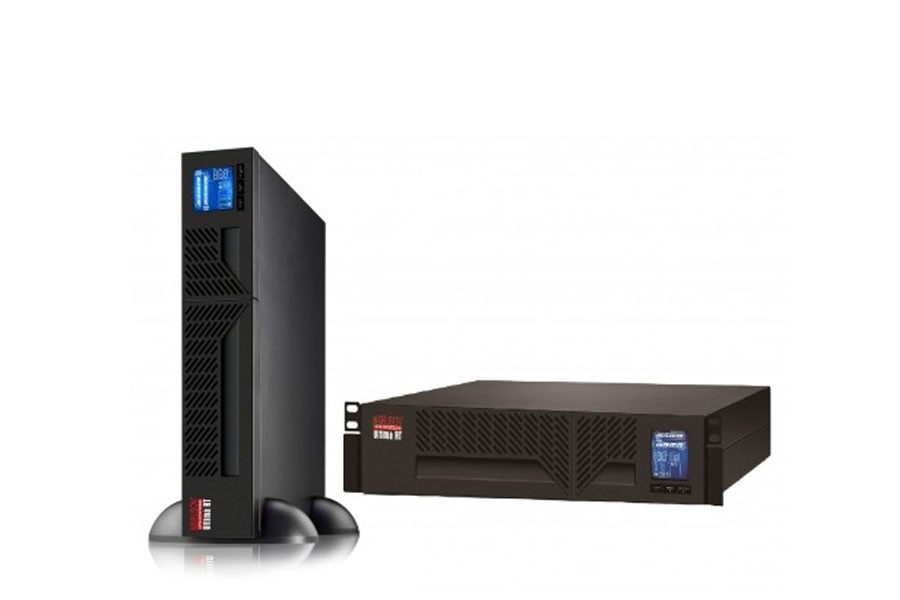

Maruson ULT-3KRT 3000VA/2700W UPS System
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU MARUSON_ULT-3KRT
Details
Mfr Part Number:
ULT-3KRT

Features:
True double-conversion online UPS
0.9 Output power factor
ECO and advanced ECO mode for energy saving
Easy-shift LCD display for rack/tower mode
Programmable power management outlets
50/60 Hz frequency converter mode
Emergency Power Off (EPO) function
Extendable runtime feature ("L" model)

Capacity:
3000VA / 2700W

Input:
Nominal Input Voltage: 100 - 120V AC
Voltage Range: 55 - 150V AC +/- 5%
Frequency Range: 40Hz - 70Hz
Power Factor:  â‰¥0.99 @ Nominal Voltage (100% Load)
Plug Type: NEMA L5-30P

Output:
Nominal Output Voltage: 100 - 120V AC
AC Voltage Regulation (Batt. Mode): ± 1%
Frequency Range (Synchronized Range): 47 - 53 Hz or 57 - 63 Hz
Frequency Range (Batt. Mode): 50 Hz ± 0.5% or 60Hz ± 0.5%
Current Crest Ratio: 5:1 (max.)
Harmonic Distortion:  2 % THD (Linear Load); 8 % THD (Batt. Mode before shut down)
Transfer Time: Line Mode to Battery Mode: Zero
Inverter to Bypass: <4 ms (Typical)
Waveform (Batt. Mode): Pure Sinewave
Outlet Type: 4x NEMA 5-20R, 1x NEMAL5-30R

Efficiency:
AC Mode: 88% (typical), 90% (peak)
Battery Mode: 85% (typical), 88% (peak)

Battery:
Battery Type: 12V / 9 AH
Battery Numbers: 6
Typical Recharge Time: 4 hours recover to 90% capacity
Charging Current (Max): 1.0A
Charging Voltage: 82.1V DC ± 1%

Indicators: LCD Panel - UPS status, Load level, Battery level, Input/Output/battery info, Discharge time and Fault indicators

Alarm:
Battery Mode: Beeps every 4 seconds
Low Battery: Beeps every second
Overload: Beeps twice every second
Fault: Continuously beeps

Management: Smart RS-232 / USB - Supports Windows 8/ 7/ 2008/ Vista/ XP/ 2003/ 2000, Linux, Unix, and MAC

Applications:
Networks and servers
Small and medium data centers
Medical server applications

Noise Level: Less than 50dBA @ 1 Meter

Dimensions (WxDxH): 17.2 x 23.6 x 3.5 inch / 438.0 x 600.0 x 88.0 mm (2U)

Weight: 65.3 lbs / 29.6 kg
ULT-3KRT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
