Gigabyte 1U 16Bays Single Processor Server
- Intel® Xeon® processor D-1541
- 4x DIMM slots, Dual channel, DDR4 2400/2133/1866/1600MHz
- 16x 3.5" HDD slots
- Supports SATA III 6Gb/s via LSI SAS3216 controller
- Supports software RAID 0,1,1E,10
- 2x 10GbE SFP+ LAN ports (Intel® X552)
- 2x GbE LAN ports (Intel® I210)
- Aspeed® AST2400 management controller
- 1x 400W 80 PLUS Gold 100~240V AC PSU
Storage configuration notice:
16x 3.5" SATA Drive
16x 3.5" SATA Drive
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | D120-C21 |
| Processor | CPU
Intel® Xeon® D-1541 processor 2.1GHz Up to 2.7GHz with Intel® Turbo Boost Technology 8 cores, 16 threads 12MB cache 45W TDP Socket 1 x FCBGA 1667 |
| Memory | 4x DIMM slots
Supports 1.2V DDR4 memory Single & dual rank modules supported ECC & non-ECC UDIMM modules supported RDIMM supported up to 32GB per module UDIMM supported up to 16GB per module 2400/2133/1866/1600 MHz |
| Chassis | 1U Rackmount Chassis
|
| Dimensions | 438mm x 43.5mm x 867mm
|
| Onboard Devices | LAN
2x 10GbE SFP+ LAN ports (Intel® X552) 2x GbE LAN ports (Intel® I210) 1x 10/100/1000 management LAN Video Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |

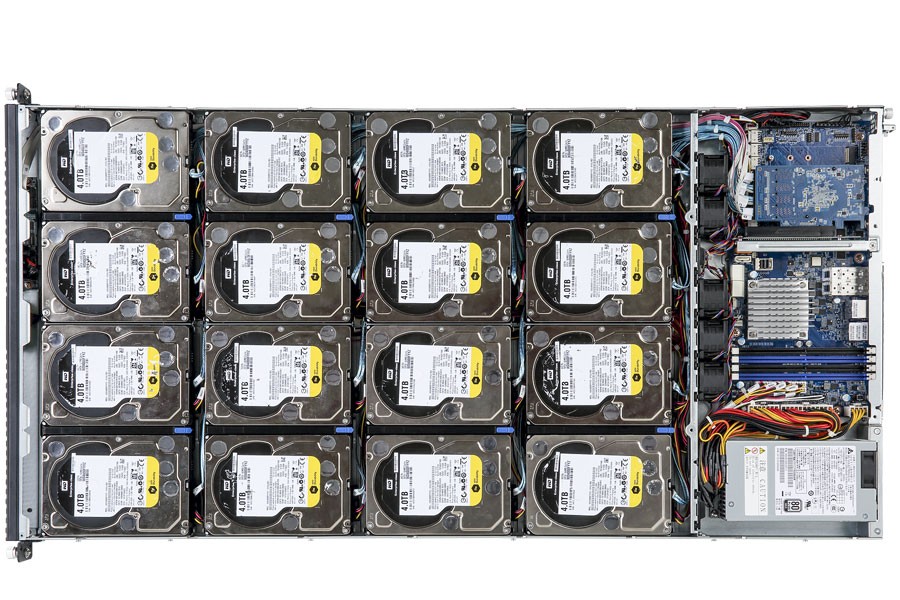

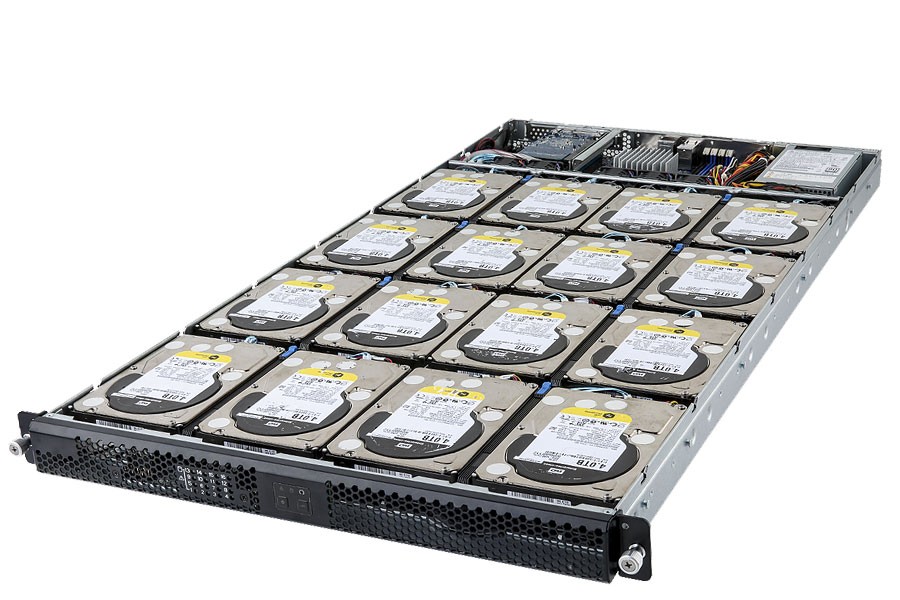

| HDD Drive Bays | 16 x 3.5" SATA drives
|
| Expansion Slots | 1x PCIe x16 (Gen3 x16 bus) connector
Half-length low-profile type The slot is occupied by CSA323-G (LSI SAS3216 16-port 12Gb/s) 1x M.2 slot:
- M-key - PCIe 3.0 x4 signal - Supports NGFF-2280/2260/2242 cards |
| Power Supply | Single 400W PSU
80 PLUS Gold 100~240V AC |

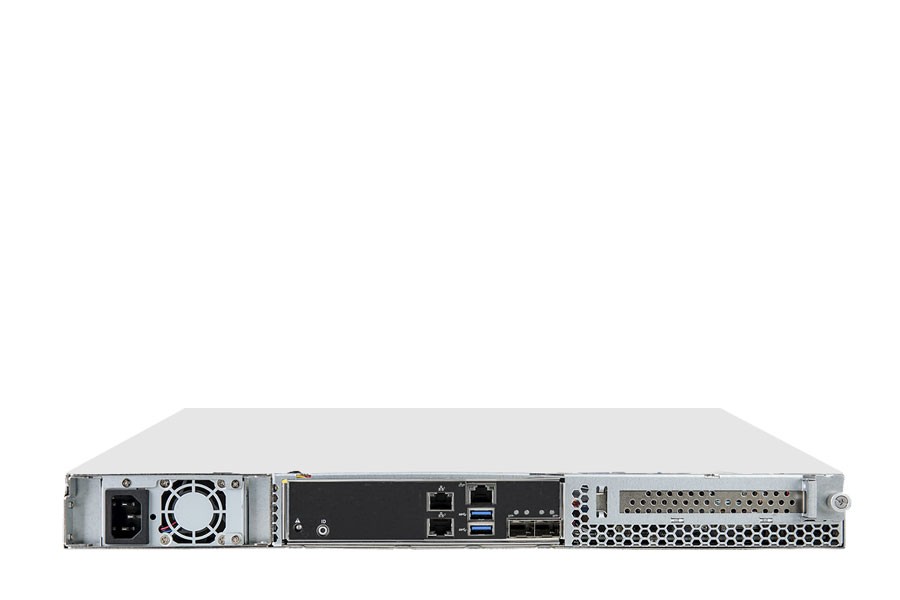

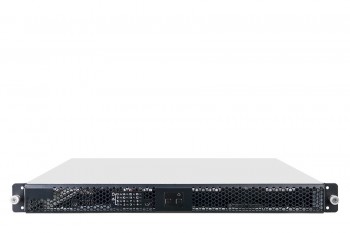

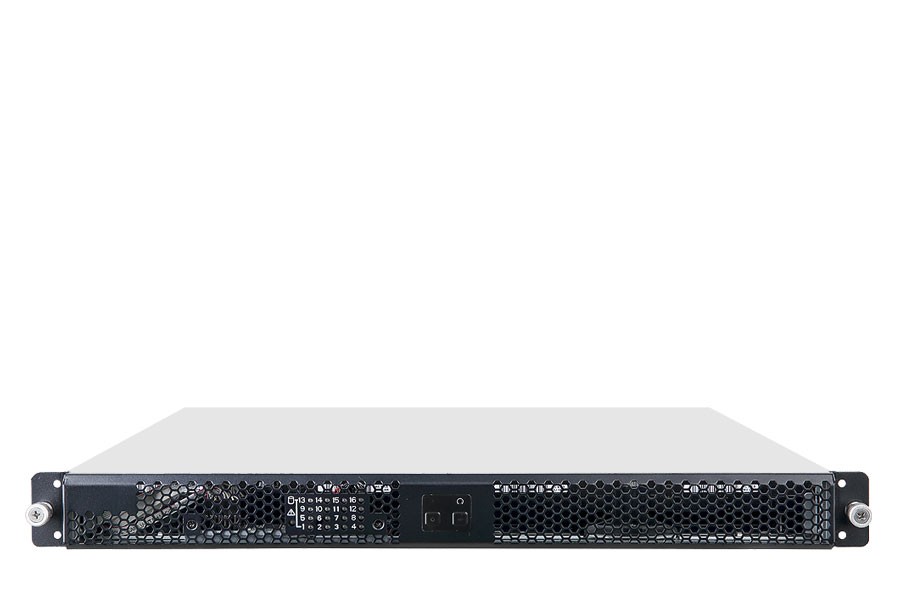

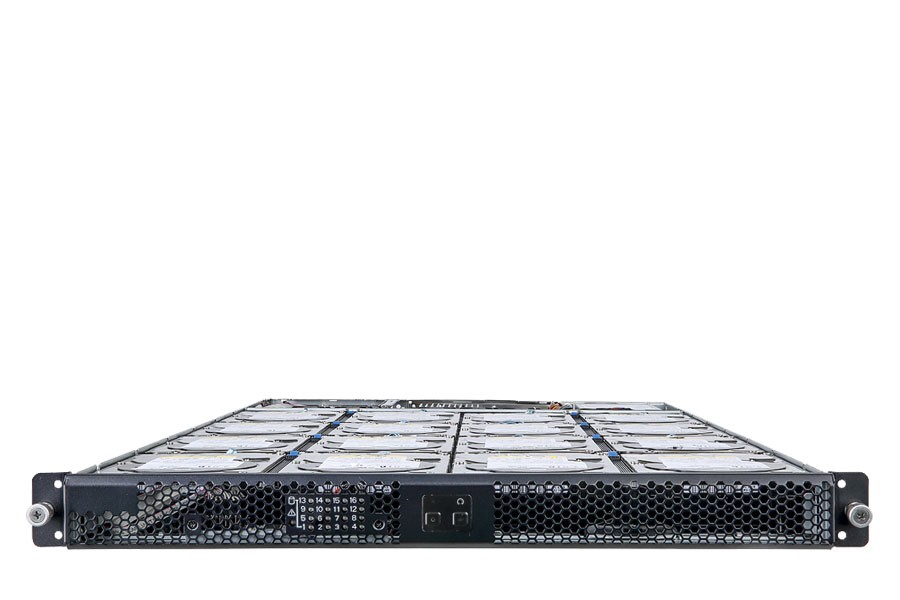

| Input Output | Front I/O:
1x Power button with LED 1x ID button with LED 1x Reset button 1x LAN LED 16x HDD location LEDs 1x HDD access LED Rear I/O: 2x SFP+ 3x RJ45 2x USB 3.0 1x Power button with LED 1x System status LED |
| Operating Environment | Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Details | System Management
Aspeed® AST2400 management controller Avocent® MergePoint IPMI 2.0 web interface: Network settings Network security settings Users control Services settings IPMI settings Sessions control LDAP settings Power control Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (launch, configuration) |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| File Description | Date | Type | Size | Download |
| Server System Manual | 10-17-18 | 3,596.45 KB |  |
